Grayhill Rocker Switches 47D Series - Manual (Page 3)

DIP Switches
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
Rocker and Paddle Switches
Slide DIP Switches
P.C. MOUNTING
P.C. MOUNTING
1 2 3
4 5 6
.200
(5.08)
.030
(0.76)
.130
(3.30)
.352
(8.94)
.300
(7.62)
.400
(10.16)
.670
(17.02)
EPOXY SEAL
.020
(0.51)
.100
(2.54)
.015
(0.38)
.400
(10.16)
.100
(2.54)
Ш.043
(Ш0.19)
.300
(7.62)
.400
(10.16)
EPOXY SEAL
.020
(0.51)
.100
(2.54)
.127
(3.22)
.200
(5.08)
.032
(0.82)
.366
(9.30)
.202
(5.12)
.392
(9.98)
.493
(12.52)
.115
(2.93)
.409
(10.40)
.200
(5.08)
.400
(10.16)
.200
(5.08)
Ш.043
(Ш1.09)

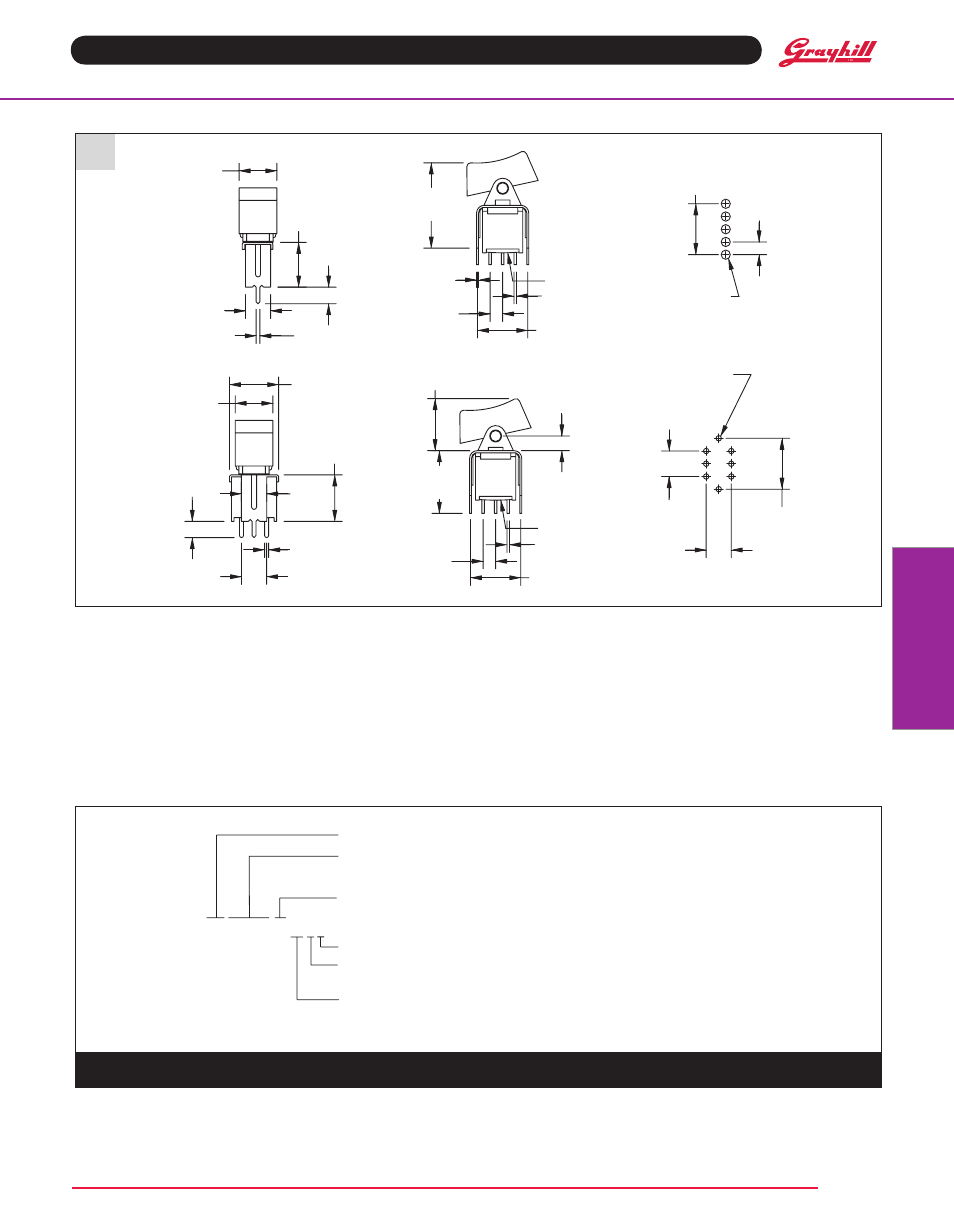

TerMiNATioN oPTioNS in inches (and millimeters)
V2 Verical Bracket P.C. Mount
SPeciFicATioNS
rATiNgS
contact rating: Q option - 3A with resistive
load @ 125 VAC or 28 VDC; 1.5A with resis-
tive load @ 250 VAC. R option - 0.4 VA max
@ 20 Vmax (AC or DC)
electrical life: 30,000 make-and-break
cycles at full load
contact resistance: 20 milliohms max. initial
@ 2-4 VDC, 100 mA
insulation resistance: 1,000 megaohms
minimum
dielectic resistance: 1,500 V RMS @ sea
level
operating Temperature: -30°C to 85°C
MATeriAlS
case and Bushings: Glass-filled nylon 6/6 ,
flame retardant, heat stabilized (UL94V-0)
Actuator: Nylon, black standard. Internal o-
ring seal standard with all actuators.
Switch Support: Brass, tin-plated
Terminal Seal: Epoxy
Terminal/contacts: Copper alloy with gold
plate or silver plate over nickel
orderiNg iNForMATioN
Available from your local grayhill component distributor.
For prices and discounts, contact a local Sales Office, an authorized local Distributor or Grayhill.
Series 47D: Sealed Sub-Miniature Rocker Switches
SPdT
dPdT
47DWMSP1R2M6RT
RoHS Compliant
Contact: R= Copper alloy, gold plate over nickel plate
Q = Copper alloy, gold plate over silver plate
Termination Options: M2, M6, M7, V2
(See Termination options.)
Actuator Options: R1, R2
(See Actuator options.)
Model: SPDT: WMSP1, WMSP2, WMSP3, WMSP4, WMSP5
DPDT: WMDP1, WMDP2, WMDP3, WMDP4, WMDP5
Series 47D Sealed Sub-Miniature Rocker Switch
