Rocker and Paddle Switches
V3 Vertical
Bracket
P.C. Mount
P.C. MOUNTING
P.C. MOUNTING
1 2 3
4 5 6
.200
(5.08)
.030
(0.76)
.130
(3.30)
.352
(8.94)
.400
(10.16)
EPOXY SEAL
.020
(0.51)
.100
(2.54)
.016
(0.41)
.400
(10.16)
.100
(2.54)
Ш.043
(Ш0.19)
.200
(5.08)
.400
(10.16)
.200
(5.08)
Ш.043
(Ш1.09)
.304
(7.72)
.417
(10.59)
.300
(7.62)
.300
(7.62)
.100
(2.54)
.200
(5.08) .030
(0.76)
.130
(3.30)
.352
(8.94)
.400
(10.16)
EPOXY SEAL
.020
(0.51)
.100
(2.54)
.016
(0.4)
.304
(7.72)
.417
(10.59)
.360
(9.14)

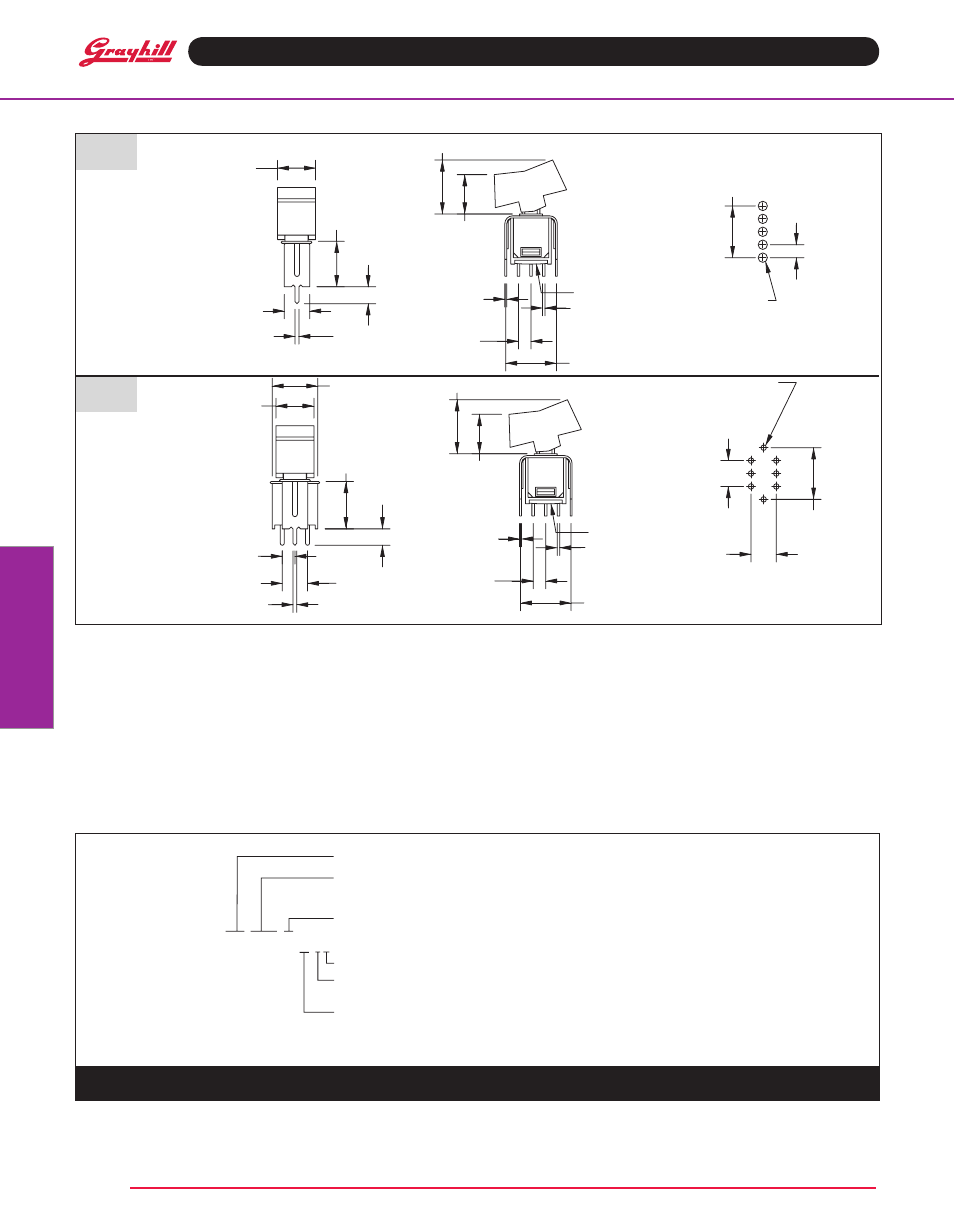

TerMiNATioN oPTioNS in inches (and millimeters)
V2 Vertical Bracket P.C. Mount
SPeciFicATioNS
rATiNgS
contact rating: Q option - 3A with resistive
load @ 125 VAC or 28 VDC; 1.5A with resis-
tive load @ 250 VAC. R option - 0.4 VA max
@ 20 Vmax (AC or DC)
electrical life: 30,000 make-and-break
cycles at full load
contact resistance: 20 milliohms max. initial
@ 2-4 VDC, 100 mA
insulation resistance: 1,000 megaohms
minimum
dielectic Strength: 1,000 V RMS @ sea
level
operating Temperature: -30°C to 85°C
Ul recognition: File number is E35289
MATeriAlS
case: Diallyl phthalate (DAP) (UL94V-0)
rocker: Nylon
Bushing: Brass, nickel plated
Housing: Stainless steel
Switch Support: Brass, electrotin plated
Terminal/contacts: Copper alloy with silver
or gold plating
Terminal Seal: Epoxy
orderiNg iNForMATioN
Available from your local grayhill component distributor.
For prices and discounts, contact a local Sales Office, an authorized local Distributor or Grayhill.
Series 47C: Sub-Miniature Rocker Switches
SPdT
dPdT
47CMSP1R2M6RT
RoHS Compliant
Type of Contact: R = Copper alloy, gold plate over nickel plate
Q = Copper alloy, silver plated
Termination Options: M1, M2, M6, M7, V2, V3
(See Termination options.)
Actuator Options: R1, R2 (See Actuator options.)
Model: SPDT: MSP1, MSP2, MSP3, MSP4, MSP5
DPDT: MDP1, MDP2, MDP3, MDP4, MDP4
(See Model for options.)
