Toggle Switches
( )
( )
( )
10-48 UNS-2B
SPeciFicATioNS
rATiNGS
contact rating: Q option - 3A with resistive
load @ 125VAC or 28 VDC; 1.5A with resis-
tive load @ 250 VAC. R option-0.4 VA max @
20 Vmax (AC or DC)
electrical life: 30,000 make-and-break
cycles at full load
contact resistance: 10 milliohms max.
initial @ 2-4 VDC, 100 mA
insulation resistance: 1,000 megaohms
minimum
dielectic Strength: 1,000 V RMS @ sea
level
operating Temperature: -30°C to 85°C
Ul recognition: File number is E35289
MATeriAlS
case: Diallyl phthalate (DAP) (UL 94V-0)
Toggle Handle: Brass, chrome plated
Bushing: Brass, nickel plated
Housing: Stainless steel
Terminal/Switch Support: Brass, electrotin
plated
Terminal Seal: Epoxy

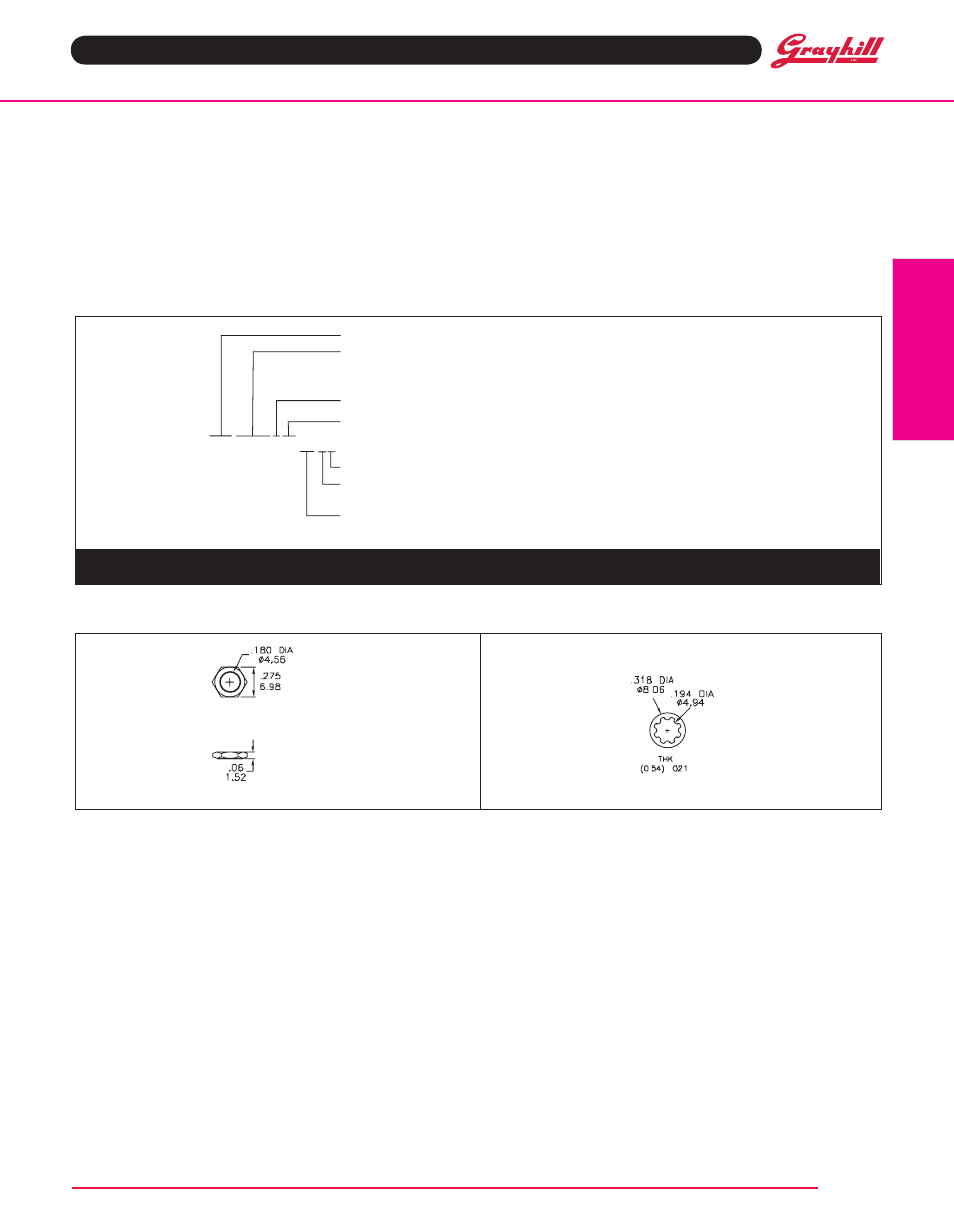

HArdWAre in inches (and millimeters)
NUT lock WASHer
orderiNG iNForMATioN
Available from your local Grayhill component distributor.
For prices and discounts, contact a local Sales Office, an authorized local Distributor or Grayhill.
HDW21 HDW22
( )
( )
34CWSP12B4M2RT
Series 34C Sub-Miniature Toggle Switches
Model: SPDT: MSP1, MSP2, MSP3, MSP4, MSP5
DPDT: MDP1, MDP2, MDP3, MDP4, MDP5
(See Model options.)
Actuator: 1, 2, 3, 4, 5 (See Actuator options.)
RoHS Compliant
Contact: R = Copper alloy, gold plate over nickel plate,
Q = Copper alloy over silver plate
Termination Options: M1, M2, M6, M7, V2, V3
(See Termination options.)
Bushing Option: B1, B2, B3, B4, B5, B6, B7, B8
(See Bushing options.)
Series 34C: Sub-Miniature Toggle Switches
