Series 34d: sealed sub-miniature toggle switches, Termination options, Specifications – Grayhill Toggle Switches 34D Series User Manual

Page 3: Ordering information

background image

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com

Toggle Switches

3

2

1

P.C. MOUNTING

6

5

4

.391

(9.94)

.030

(0.76)

.336

(8.53)

.240

(6.10)

.162

(4.11)

.165

(4.19)

.200

(5.08)

.100

(2.54)

.130

(3.30)

.530

(13.46)

.019

(0.48)

.015

(0.38)

.320

(8.13)

.200

(5.08)

Ш.043

(Ш1.09)

.200

(5.08)

Ш.100

(Ш2.52)

Ш.194

(Ш4.91)

.364

(9.25)

.100

(2.54)

.200

(5.08)

P.C. MOUNTING

1

2

3

P.C. MOUNTING

1

2

3

.366

(9.30)

.130

(3.30)

.030

(0.76)

.200

(5.08)

.230

(5.84)

.240

(6.10)

.165

(4.20)

.400

(10.16)

.100

(2.54)

.020

(0.51)

.015

(0.38)

EPOXY

SEAL

.400

(10.16)

.100

(2.54)

Ш.043

(Ш1.09)

EPOXY

SEAL

Ш.043

(Ш1.09)

.366

(9.30)

.130

(3.30)

.200

(5.08)

.030

(0.76)

.100

(2.54)

.020

(0.51)

.400

(10.16)

.015

(0.38)

.165

(4.20)

.240

(6.10)

.200

(5.08)

.400

(10.16)

.100

(2.54)

V2 Vertical Bracket P.C. Mount

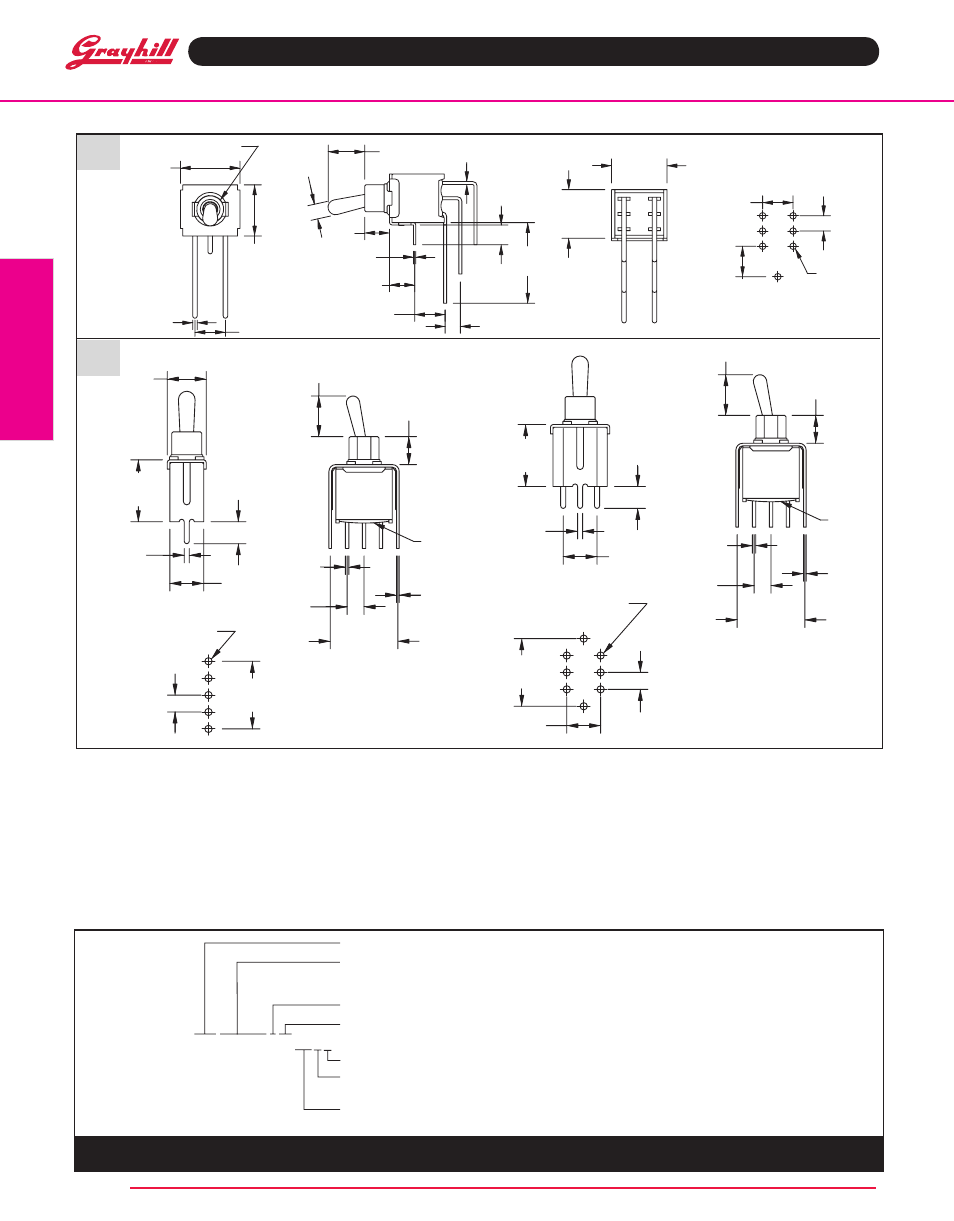

TerMiNATioN oPTioNS

in inches (and millimeters)

SPeciFicATioNS

rATiNGS
contact rating:
Q option - 3A with resistive
load @ 125VAC or 28 VDC; 1.5A with resis-
tive load @ 250 VAC. R option-0.4 VA max @
20 Vmax (AC or DC)
electrical life: 30,000 make-and-break
cycles at full load

contact resistance: 20 milliohms max.
initial @ 2-4 VDC, 100 mA
insulation resistance: 1,000 megaohms
minimum
dielectic Strength: 1,500 V RMS @ sea
level
operating Temperature: -30°C to 85°C

MATeriAlS
case:
Diallyl phthalate (DAP) (UL94V-0)
Toggle Handle: Brass, chrome plated
Bushing: Brass, nickel plated
Housing: Stainless steel
Terminal/Switch Support: Brass, electrotin plated
contacts & Terminals: Copper alloy, gold plate
over nickel plate or silver plate
Terminal Seal: Epoxy

orderiNG iNForMATioN

Available from your local Grayhill component distributor.
For prices and discounts, contact a local Sales Office, an authorized local Distributor or Grayhill.

Series 34D: Sealed Sub-Miniature Toggle Switches

dPdT

SPdT

dPdT

M7

34DWMSP12B4M2RT

Series 34B Sealed Sub-Miniature Toggle Switches
Model: SPDT: WMSP1, WMSP2, WMSP3, WMSP4, WMSP5
DPDT: WMDP1, WMDP2, WMDP3, WMDP4, WMDP5
(See model no. for switching positions)

Actuator: 1, 2, 3, 4, 5, 6 (See Actuator options)

RoHS Compliant

Contact: R = Copper alloy, gold plate over nickel plate,
Q = Copper alloy, gold plate over silver plate

Termination Options: M1, M2, M6, M7, V2
(See termination options)

Bushing Option: B4 (See Bushing option)
