SPeciFicATioNS
rATiNGS
contact rating: Q option - 5A with resistive
load @ 125VAC or 28 VDC; 2A with resistive
load @ 250 VAC. R option-0.4 VA max @ 20
Vmax (AC or DC)
electrical life: 40,000 make-and-break
cycles at full load
orderiNG iNForMATioN
Available from your local Grayhill component distributor.
For prices and discounts, contact a local Sales Office, an authorized local Distributor or Grayhill.

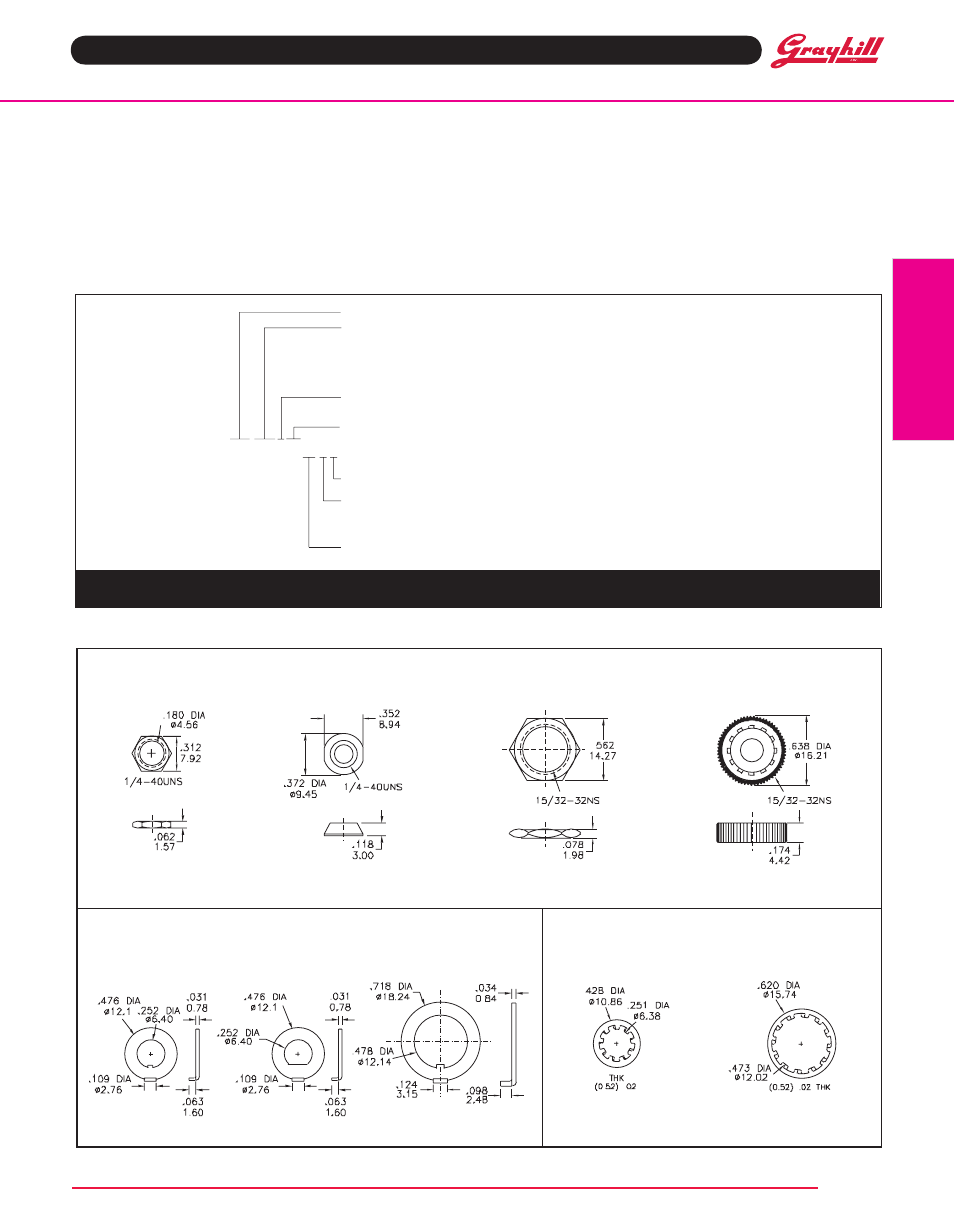

HArdWAre in inches (and millimeters)
lockiNG riNGS lock WASHerS
Series 34A (Std) Dress Nut For Actuator Options 7, 8 (Std) Knurled Nut (Sealed)
Series 34A (Std)
NUTS
contact resistance: 10 milliohms max. initial
@ 2-4 VDC, 100 mA for both gold & silver
contacts
insulation resistance: 1,000 megaohms
minimum
dielectic Strength: 1,000 V RMS @ sea level
operating Temperature: -30°C to 85°C Ul recognition: File number is E35289
MATeriAlS
case: Diallyl phthalate (DAP) (UL94V-0)
Toggle Handle: Brass, chrome-plated
Bushing: Brass, nickle-plated
Housing: Stainless steel
( ) ( )
( ) ( )
( )
( )
( )
( )
( )
( )
HDW2 HDW3 HDW4 HDW5
( )
( )
( )
( )
( )
( )
( ) ( )
( )
( )
( )
( )
( )
( )
( )
For Actuator Options 7, 8
( )
( )
( )
( )
Series 34A (Std) For Actuator Options 7, 8
HDW15 HDW16 HDW17 HDW11 HDW12
Series 34A Miniature Toggle Switch
Model: SPDT: SP1, SP2, SP3, SP4, SP5,
DPDT: DP1, DP2, DP3, DP4, DP5
3PDT: 3P1, 3P2, 3P3, 3P4, 3P5
4PDT: 4P1, 4P2, 4P3, 4P4, 4P5
(See Model options)
Actuator Options: 1, 2, 3, 4, 5, 6, 7, 8, 9, L, N
(See Actuator options.)
Bushing Options: B1, B2, B3, B4, B5, B6, B7, B8, B9, T1, T2, T5, T6
(See Bushing options.)
34ASP12B4M2RT
Termination Options: M1, M2, M3, M6, M7, V2, V3, W1, W2, W3 , W4
Contact: R: Copper alloy, gold plate over nickel plate
Q: Copper alloy, silver plated
G: Copper alloy, gold plate over silver plate
RoHS Compliant
(See Termination options.)
Series 34A: Miniature Toggle Switches
