Toggle Switches
( )
( )
( )
( ) ( )
( )
( )
SPeciFicATioNS
rATiNGS
contact rating: Q option - 5A with resistive
load @ 125VAC or 28 VDC; 2A with resistive
load @ 250 VAC. R option-0.4 VA max @ 20
Vmax (AC or DC)
electrical life: 50,000 make-and-break
cycles at full load
contact resistance: 10 milliohms max.
initial @ 2-4 VDC, 100 mA
insulation resistance: 1,000 megaohms min
dielectic Strength: 1,500 V RMS @ sea level
operating Temperature: -30°C to 85°C
MATeriAlS
case and Bushings: Glass-filled nylon 6/6,
flame retardant, heat stabilized (UL94V-0)
Frame: Spring steel

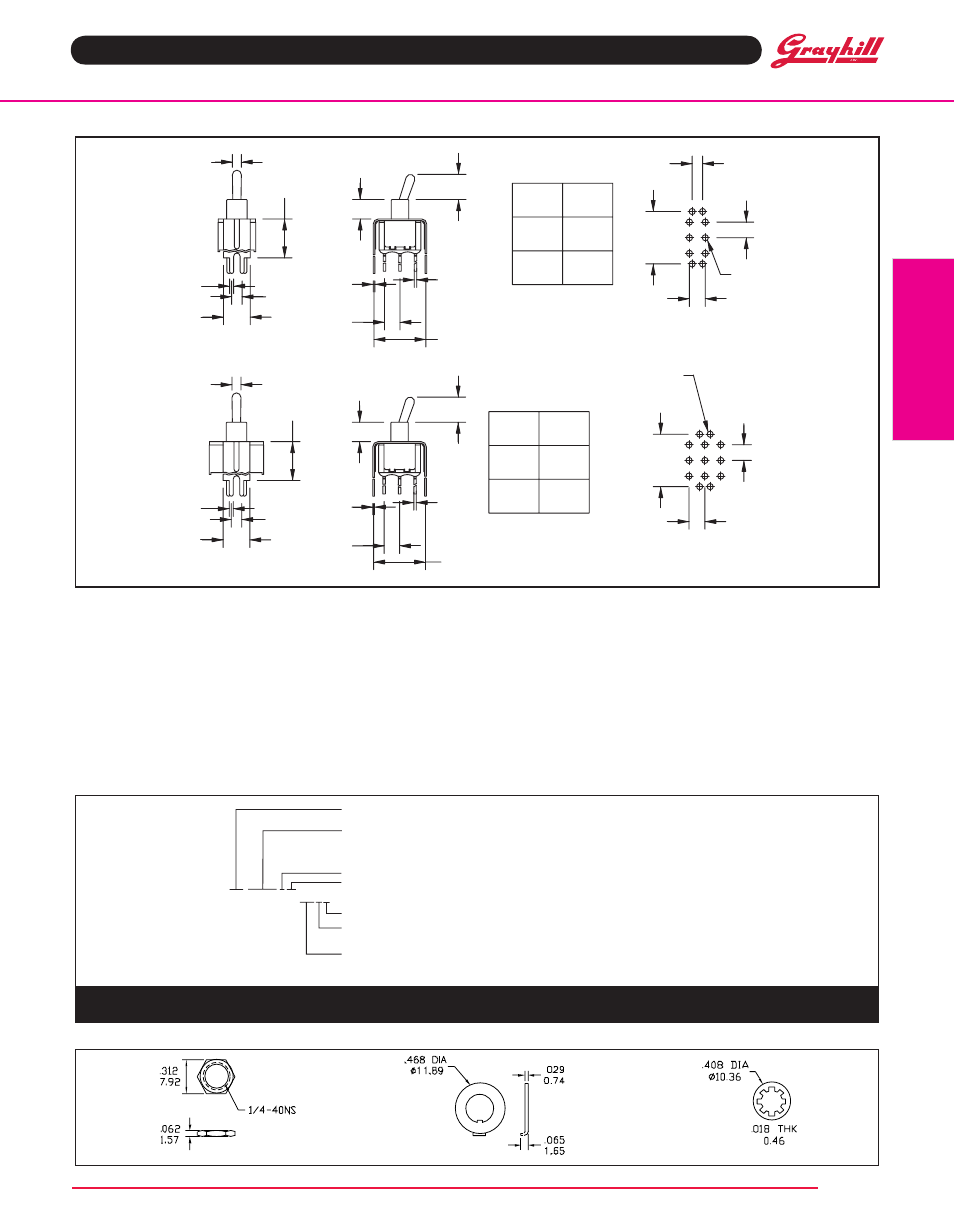

TerMiNATioN oPTioNS in inches (and millimeters)
Actuator: Brass, chrome plated. Internal O-
ring seal standard with all actuators.
Switch Support: Brass, tin-plated
Actuator Pivot & Mounting Bracket: Nylon
Actuator Pivot retainer: Stainless Steel
Terminal and contacts: Copper alloy with
plated over nickel or silver plate
Terminal Seal: Epoxy
HArdWAre In inches (and millimeters)
NUT lockiNG riNG lock WASHer
orderiNG iNForMATioN
Available from your local Grayhill component distributor.
For prices and discounts, contact a local Sales Office, an authorized local Distributor or Grayhill.
dPdT
3PdT
OPTION
CODE DIM."A"
V2
V3
.460
(11,68)
.630
(16,00)
P.C. MOUNTING
4 5 6
OPTION
CODE DIM."A"
V2
V3
.460
(11,68)
.630
(16,00)
P.C. MOUNTING
4 5 6
DIM. "A"
.320
(8.13)
.048
(1.22) .125
(3.18)
.620
(15.75)
.020
(0.51)
.185
(4.70)
.030
(0.76)
.620
(15.75)
.125
(3.18)
Ш.073
(Ш1.85)
.190
(4.83)
.185
(4.70)
.297
(7.54)
.230
(5.84)
Ш.107
(Ш2.72)
DIM. "A"
.320
(8.13)
.048
(1.22)
.125
(3.18)
.620
(15.75)
.020
(0.51)
.185
(4.70)
.030
(0.76)
.620
(15.75)
.190
(4.83)
.297
(7.54)
.230
(5.84)
Ш.107
(Ш2.72)
.185
(4.70)
Ш.073
(Ш1.85)
34BWSP12B4M2RT
Series 34B Sealed Miniature Toggle Switches
Model: SPDT: WSP1, WSP2, WSP3, WSP4, WSP5
DPDT: WDP1, WDP2, WDP3, WDP4, WDP5
3PDT: W3P1, W3P2, W3P3, W3P4, W3P5
(See Model options.)
Actuator: 1, 2 (See Actuator options)
RoHS Compliant
Contact: R = Copper alloy, gold plate over nickel plate,
Q = Copper alloy, gold plate over silver plate
Termination Options: M1, M2, M6, M7, V2, V3
(See Termination options.)
Bushing Option: B1, B4 (See Bushing options.)
Series 34B: Sealed Miniature Toggle Switches
