Tact Switches

Non-Washable Tactile Switches

SpEcIFIcatIONS

Materials

Base: UL94V-0 Nylon thermoplastic
cover: Stainless steel, tin-plated
actuator: UL94V-0 Nylon thermoplastic
terminal: Brass with silver-plating
contact: Stainless steel with silver-plating
cap: Thermoplastic ABS

Electrical

rating: 50mA, 12 Vdc
life: 160g: 1,000,000 cycles/
260g: 500,000 cycles
actuator travel: .014” ± .004”
contact resistance: 100 mΩ max.

Insulation resistance: 100 MΩ min. at
500Vdc
Dielectric Strength: No dielectric breakdown
after 250V for one minute
contact arrangement: single pole, single
throw

Environmental

Operating temp. range: -25 to 70°C
Storage temp. range: -30 to 80°C
Mechanical Shock: MIL-STD-202F, Method,
213B, Test Condition A. Gravity: 50G’s (peak
value), 11 msec. Direction and times: 6 sides and
3 times in each direction. High reliability.
Vibration: MIL-STD-202F, Method 201A.
Passed 6 hours (2 hours in each) of three

perpendicular planes at a cycle of 10-55-10Hz/1
minute.
Stop Strength: Place the switch such that
vertical, a static load of 3kg shall be applied in
the direction of stem operation for a period of
15 seconds.

Soldering process

Hand Soldering: Use a soldering iron of
30 watts, controlled at 350°C for 5 seconds
maximum while applying solder.

reflow Soldering (surface mount versions only):
Peak temperature 260°C (500°F).
Wave Soldering: 260C° (500°F) maximum
for 5 seconds subject to PCB .063 in. (1,6mm)
thickness.

packaging

Thru-Hole: Bulk, 500 pcs/bag.
Surface Mount: 40 pcs/tube, 700 pcs/reel
(.169” height), 500 pcs/reel (.335” and .287”
height).

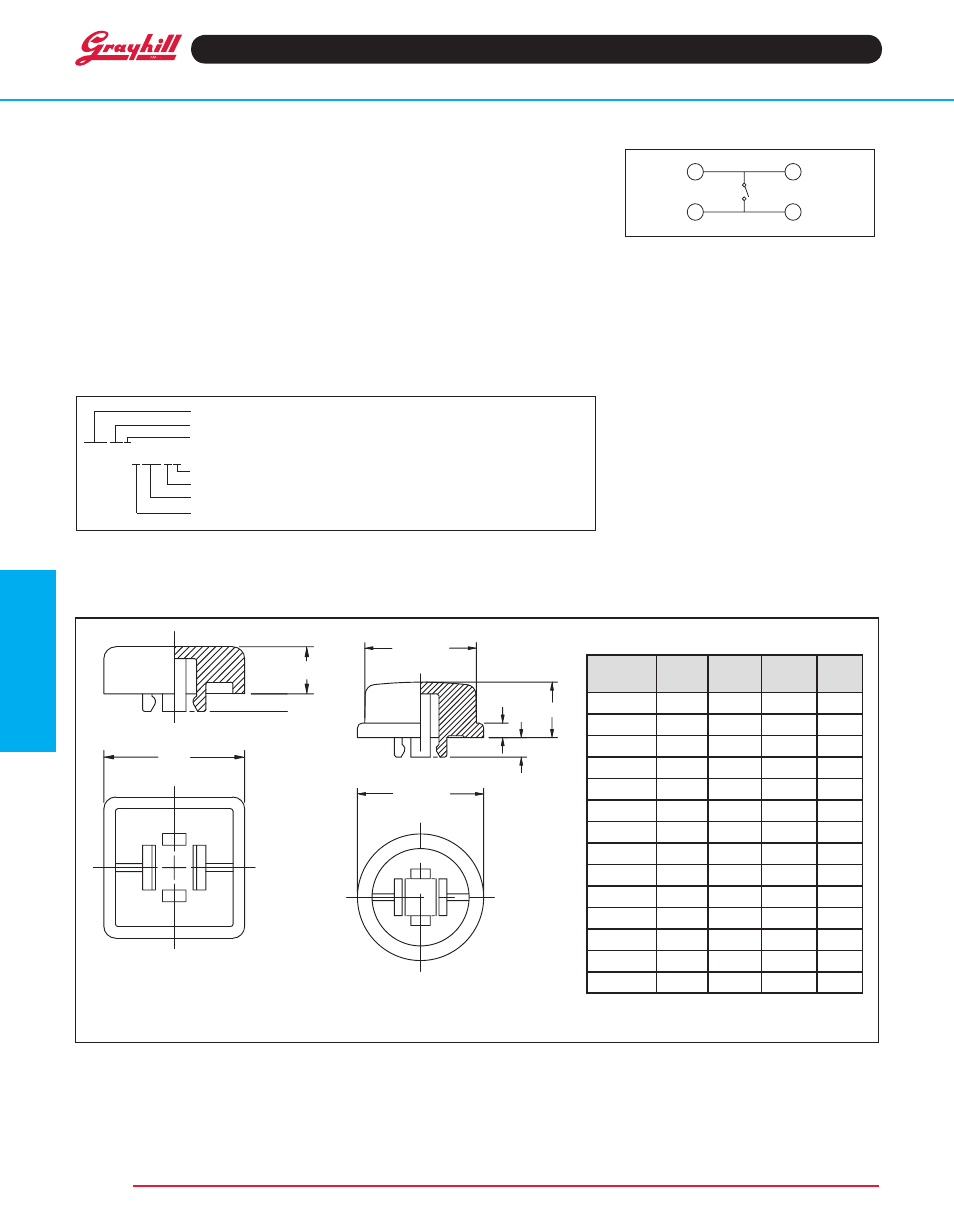

cIrcuItry

available from your local Grayhill component Distributor.

For prices and discounts, contact a local Sales Office, an authorized local distributor, or Grayhill.

OrDErING INFOrMatION

Series

Size: 12 = 12mm Square

Height (“H”): A = .169 (4,29); B = .335 (8,51); C = Square .287 (7,29)

95c12a3GWrt

roHS compliant

packaging: Blank = Tube or Bulk, R = Tape and Reel (see pkg note)

terminal Style: Blank = Thru-hole, GW = Gull Wing

Operating Force (actuator color): 3 = 160g (Brown), 4 = 260g (Red)

DEcOratIVE capS (for use with “C” style square actuators)

PART

NUMBER

95CAP-100

95CAP-101

95CAP-102

95CAP-103

95CAP-104

95CAP-105

95CAP-106

95CAP-110

95CAP-111

95CAP-112

95CAP-113

95CAP-114

95CAP-115

95CAP-116

SWITCH

SIZE

12mm

SHAPE

SQUARE

ROUND

COLOR

YELLOW

BLUE

RED

NATURAL

BLACK

GREEN

ORANGE

YELLOW

BLUE

RED

NATURAL

BLACK

GREEN

ORANGE

FIGURE

figure 3

figure 4

.472

12mm Square

.059

.157

.224

.079

.059

12mm Round

.512 DIA.

.452 DIA.
