Tact Switches

Non-Washable Tactile Switches

SpEcIFIcatIONS:
Non-Washable Switches

Materials

Base: UL94V-0 Nylon thermoplastic

cover: Stainless steel, tin-plated steel

actuator: UL94V-0 Nylon thermoplastic

terminal: Brass with silver-plating

contact: Stainless steel with silver-plating

cap: Thermoplastic ABS

Electrical

rating: 50mA, 12 Vdc

life: 100g, 160g: 1,000,000 cycles;

260g: 500,000 cycles

320g, 520g, 300,000 cycles
actuator travel: .010” + .008”/ - .004”

contact resistance: 100 mΩ max.

Insulation resistance: 100 MΩ min.

at 500Vdc

Dielectric Strength: No dielectric breakdown

after 250V for one minute

contact arrangement: single pole, single

throw

Environmental

Operating temp. range: -25 to 70°C

Storage temp. range: -30 to 80°C

Mechanical Shock: MIL-STD-202F, Method

213B, Test Condition A. Gravity: 50G’s (peak

value), 11 msec. Direction and times: 6 sides

and 3 times in each direction. High reliability.

Vibration: MIL-STD-202F, Method 201A.

Passed 6 hours (2 hours in each) of three

perpendicular planes at a cycle of 10-55-10Hz/

minute. High reliability.

Soldering process

Hand Soldering: Use a soldering iron of
30 watts, controlled at 350°C for 5 seconds
maximum while applying solder.

reflow Soldering (surface mount versions
only)

: Peak temperature 260°C (500°F).

Wave Soldering: 260C° (500°F) maximum
for 5 seconds subject to PCB .063 in. (1,6mm)
thickness.
available from your local Grayhill
component Distributor.
For prices and discounts, contact a local
Sales Office, an authorized local distributor,
or Grayhill.

OrDErING INFOrMatION: Non-Washable Switches

Series

Size: 06 = 6mm Square

Height (“H”): A = .124 (3,14), B = .152 (3,86), C = .230 (5,84), D = .329 (8,36), E = .467 (11,86)

95c06a2rat

F = .242 (6,15) for use with decorative caps

roHS compliant

terminal Style: RA = Right Angle

Operating Force (actuator color): 2 = 100g (Black), 3 = 160g (Brown), 4 = 260g (Red)

Series

Size: 06 = 6mm Square

Height (“H”): A = .169 (4,29), B = .197 (5,00), C = .276 (7,01), D = .374 (9,50), E = .512 (13,00)

95c06a2GWrt

F = .287 (7,29) for use with decorative caps

roHS compliant

packaging: Blank = Tube or bulk, R = Tape and Reel (see pkg note)

terminal Style: Blank = Thru-hole, GW = Gull Wing

Operating Force (actuator color): 2 = 100g (Black), 3 = 160g (Brown), 4 = 260g (Red),

5 = 320g (Orange), 6 = 520g (Yellow)

thru-Hole and Gull Wing

right angle

packaging

Thru-Hole: Bulk,1000 pcs/bag. Surface Mount: 77 pcs/tube, 1000 pcs/reel (.169” height), 900 pcs/reel (.197” height), 500 pcs/reel

(.276” and .287” height), 380 pcs/reel (.374” height). Right Angle: Bulk, 1000 pcs/bag.

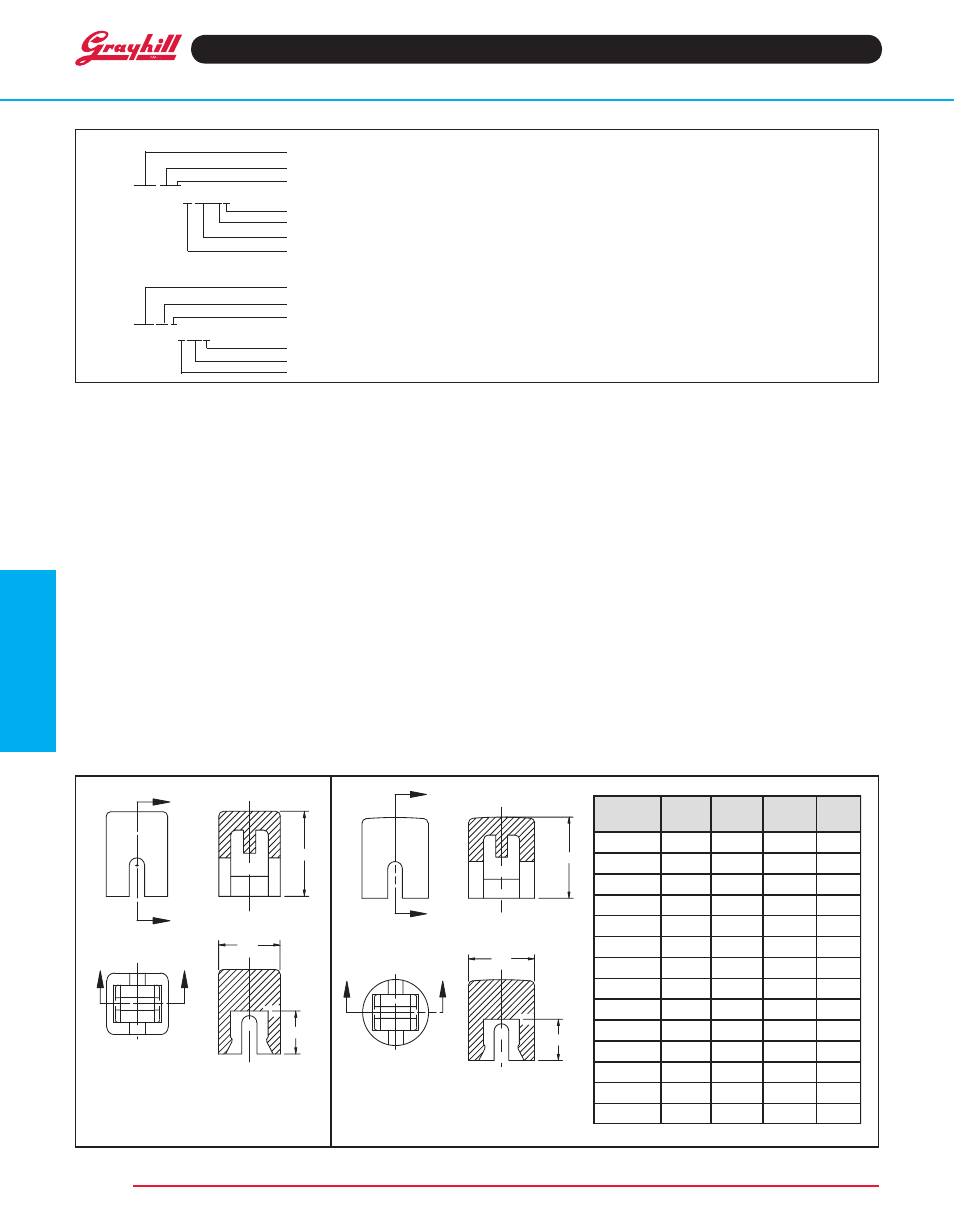

6mm SQUARE

"A"

"B"

.217

SEC "A-A"

.110

.157

SEC "B-B"

figure 1

figure 2

6mm ROUND

.217

.110

SEC A-A'

.177

DIA.

SEC B-B'

PART

NUMBER

95CAP-000

95CAP-001

95CAP-002

95CAP-003

95CAP-004

95CAP-005

95CAP-006

95CAP-010

95CAP-011

95CAP-012

95CAP-013

95CAP-014

95CAP-015

95CAP-016

SWITCH

SIZE

6mm

SHAPE

SQUARE

ROUND

COLOR

YELLOW

BLUE

RED

NATURAL

BLACK

GREEN

ORANGE
