Tact Switches
Non-Washable Tactile Switches

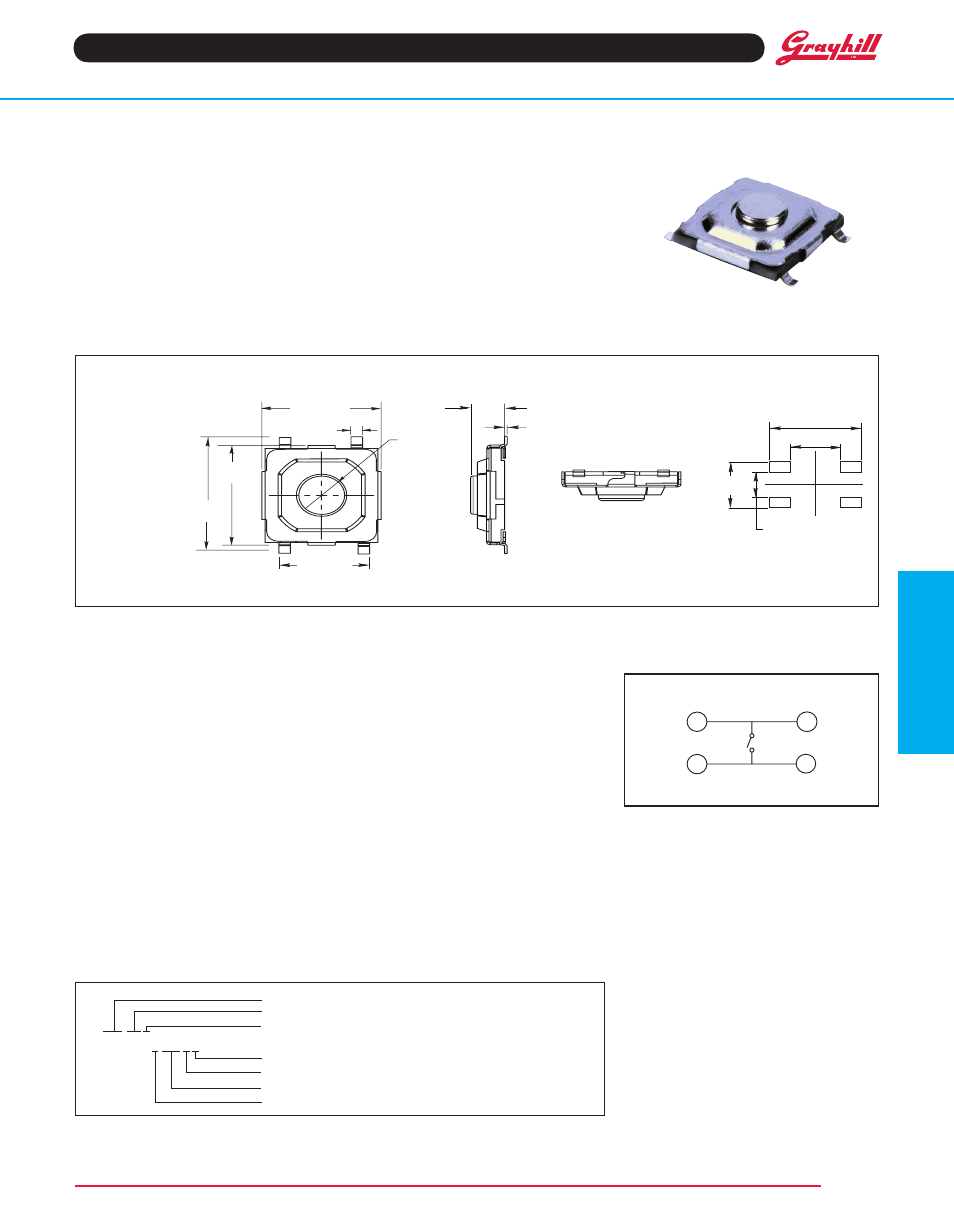

DIMENSIONS in inches (and millimeters)
FEaturES
• Excellent Tactile Feedback
• Compatible with SMT Assembly
Including Infrared and Vapor Phase
• Ultraminiature and Lightweight
Structure Suitable for High Density
Mounting
applIcatIONS
Used in applications such as consumer
electronics, audio equipment, PCs, VCRs,
cable boxes, modems, communications
equipment, controls, security and alarm
equipment, and test and measurement
equipment.
SpEcIFIcatIONS
Materials
Base: UL94V-0 LCP thermoplastic
cover: Nickel silver
actuator: Brass with nickel-plating
terminal: Brass with silver-plating
contact: Stainless steel with silver-plating
Electrical
rating: 50mA, 12 Vdc
life: 160g: 1,000,000 cycles;
260g: 200,000 cycles
actuator travel: .010” + .008”/ - .004”
contact resistance: 100 mΩ max.
Insulation resistance: 100 MΩ min. at
500Vdc
Dielectric Strength: No dielectric breakdown
after 250V for one minute.
contact arrangement: single pole, single
throw
Environmental
Operating temp. range: -25 to 70°C
Storage temp. range: -30 to 80°C
Mechanical Shock: MIL-STD-202F, Method
213B, Test Condition A. Gravity: 50G (peak
value), 11 msec. Direction and times: 6 sides
and 3 times in each direction.
Vibration: MIL-STD-202F, Method 201A. Passed
6 hours (2 hours in each) of three perpendicular
planes at a cycle of 10-55-10Hz/minute.
Soldering process
Hand Soldering: Use a soldering iron of
30 watts, controlled at 350°C for 5 seconds
maximum while applying solder.
reflow Soldering: Peak temperature 260°C
(500°F).
packaging
Tape and Reel: 4000 pcs/reel.
cIrcuItry
available from your local Grayhill component Distributor.
For prices and discounts, contact a local Sales Office, an authorized local distributor, or Grayhill.
Series
Size: 05 = 5mm Square
Height: B = .059 (1,49)
95c05B3GWrt
roHS compliant
packaging: R = Tape and Reel (see pkg note)
terminal Style: GW = Gull Wing
Operating Force: 3 = 160g, 4 = 260g
OrDErING INFOrMatION
Unless otherwise specified, tolerances are ±.010 (0,25)
T1 T2
T3 T4
SErIES 95c
5mm Square
.241
(6,12)
.146 (3,70)
.205
(5,20)
.205 (5,20) .059 (1,49)
.004 (0,10)
.002 (0,50)
Ш.079
(Ш2,00)
.315 (8,00)
.189
(4,80)
.102 (2,60)
.173 (4,40)
top View Front View
Side View
p.c.B. layOut
