Optical and Mechanical
Encoders
Mechanical Encoders
For prices and discounts, contact a local Sales Office, an authorized local Distributor or Grayhill.
opTionS
Adjustable Stops
Set and reset stops to limit rotation. All
dimensions are the same as for fixed stop
switches. Switches are shipped with the stop
blades located to limit rotation to 11 switch
positions. For continuous rotation, remove both
blades. For limited rotation, remove the 2nd
(clockwise) blade and move it to the hole located
between the positions shown in the Truth Tables.
Removal of a plastic washer provides access to
the blades and slots. Adjustable stop versions
are available in unsealed styles only.
Shaft and panel Seal
Switches are available in sealed or unsealed
styles. For sealed style, the panel is sealed by
an o-ring at the base of the bushing. The shaft
is sealed by an o-ring inside of bushing. After
the switch is mounted, seals do not alter the
dimensions of the unsealed style.
Dec. Switch 2nd output Terminal
no. pos'n.* pin** 1 2 4 8
0 1 4-5
1 2 5-6
2 3 6-7
3 4 7-8
4 5 8-9
5 6 9-10
6 7 10-11
7 8 11-12
8 9 12-1
9 10 1-2
10 11 2-3
11 12 3-4
Indicates contact made to common
* The switch position number is the terminal location opposite the shaft flat; it is
not the same as the decimal number.
** To limit an adjustable stop switch to the decimal number shown, insert the
second pin in the hole lying between the 2 switch positions indicated.

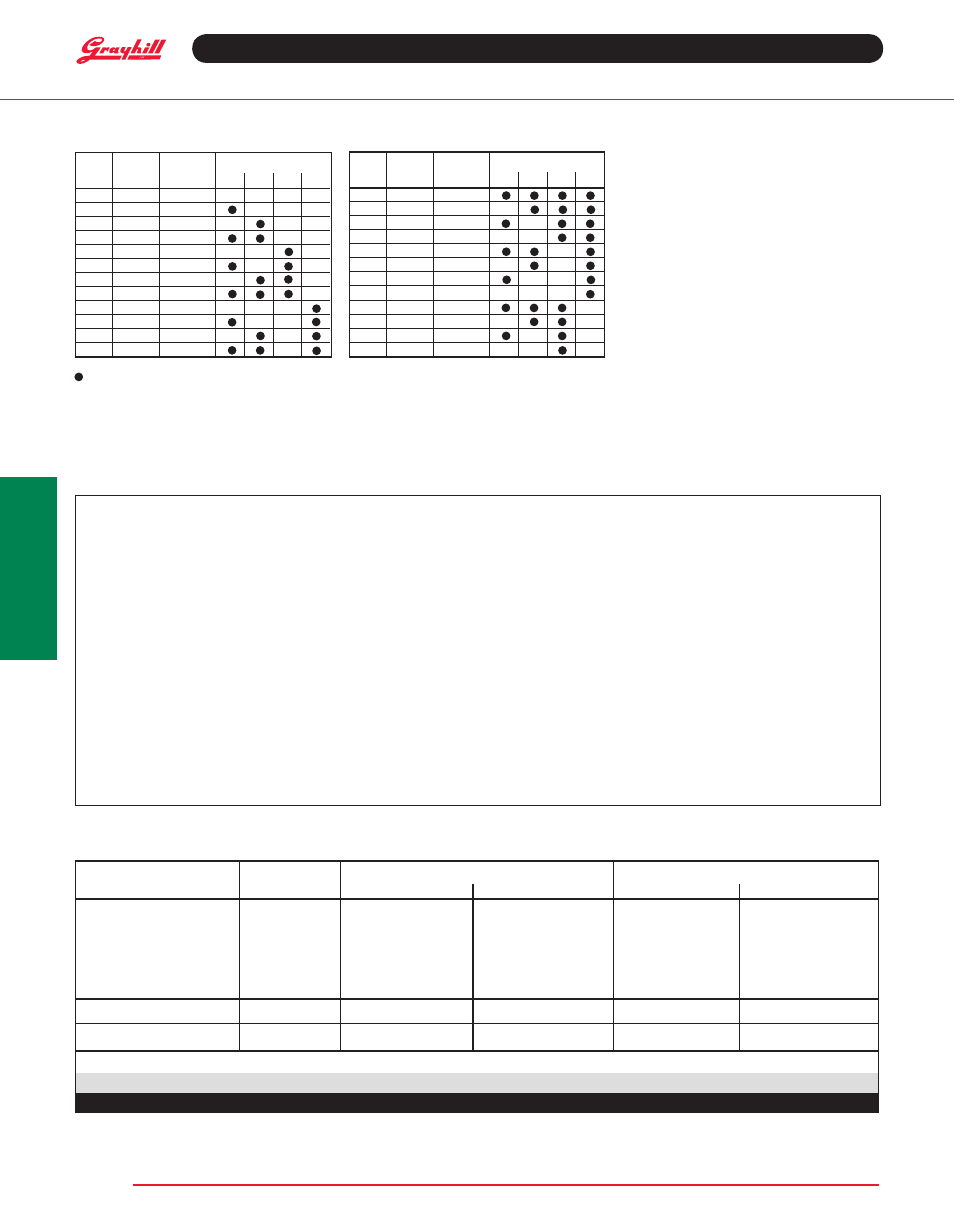

TrUTh TABleS
Binary Code Decimal Binary Code Decimal Complement
electrical rating
rated: To make and break 125 mA 30 Vdc
resistive load for 25,000 cycles of operation.
Cycle: (1 cycle = 360° rotation and return) Test
conditions are standard atmospheric pressure,
25°C and 68% relative humidity.
Contact resistance: 20 milliohms initially,
300 milliohms maximum after life
insulation resistance: 50,000 megohms
initially, 10,000 megohms after life
Voltage Breakdown: 500 Vac between
mutually insulated parts
SpeCiFiCATionS
Type of Maximum no. BCD output BCD Complement
Switch of positions Unsealed Sealed Unsealed Sealed
7 513360-7 513374-7 513361-7 513375-7
8 513360-8 513374-8 513361-8 513375-8
Fixed Stop 9 513360-9 513374-9 513361-9 513375-9
10 513360-10 513374-10 513361-10 513375-10
11 513360-11 513374-11 513361-11 513375-11
12 513360-12-F 513374-12-F 513361-12-F 513375-12-F
Continuous Rotation 12 513360-12-C 513374-12-C 513361-12-C 513375-12-C
Adjustable Stop 12 513385 ——— 513384 ———
The -C suffix indicates continuous rotation. The -F suffix indicates a fixed stop between positions 1 and 12.
orDerinG inForMATion
Materials and Finishes
Bases: Thermoset plastic
Detent rotor: Nylon
Shaft, Stop Blades, Stop Arm, Thrust Washer
And retaining ring: Stainless steel
Detent Balls: Steel, nickel-plated
Bushing: Zinc, Tin-zinc-plated
Detent Spring: Stainless steel
Common Terminals and rings: Brass, gold
plate .00003" minimum over silver plate .0003"
minimum
Terminals: Brass with silver contact surface,
gold-plated .00003"
rotor Contact: Berillium copper with silver
contact surface
Shaft And panel Seal: Silicone rubber
Mounting hardware: One mounting nut, .089"
thick by .375" across flats, and one internal tooth
lockwasher are supplied with the switch.
Additional Characteristics
Contact Type: Wiping contacts
Shaft Flat orientation: Switch position is
defined as that position that is opposite the shaft
flat. The location of the contacts in relation to the
shaft flat is shown on the circuit diagram.
Terminals: Only the active position terminals,
as shown in the circuit diagram are supplied
with the switch. All common terminals are
supplied.
Stop Strength: 7.5 in-lbs minimum
rotational Torque: 8 to16 in-oz
Bushing Mounting: Required for these
switches
Maximum Mounting Torque: 15 in-lbs.
Dec. Switch 2nd output Terminal
no. pos'n.* pin** 1 2 4 8
0 1 12-1
1 2 1-2
2 3 2-3
3 4 3-4
4 5 4-5
5 6 5-6
6 7 6-7
7 8 7-8
8 9 8-9
9 10 9-10
10 11 10-11
11 12 11-12
