Optical encoders, Specifications, Joystick operation – Grayhill Joysticks/NavCoders 60AR Series User Manual

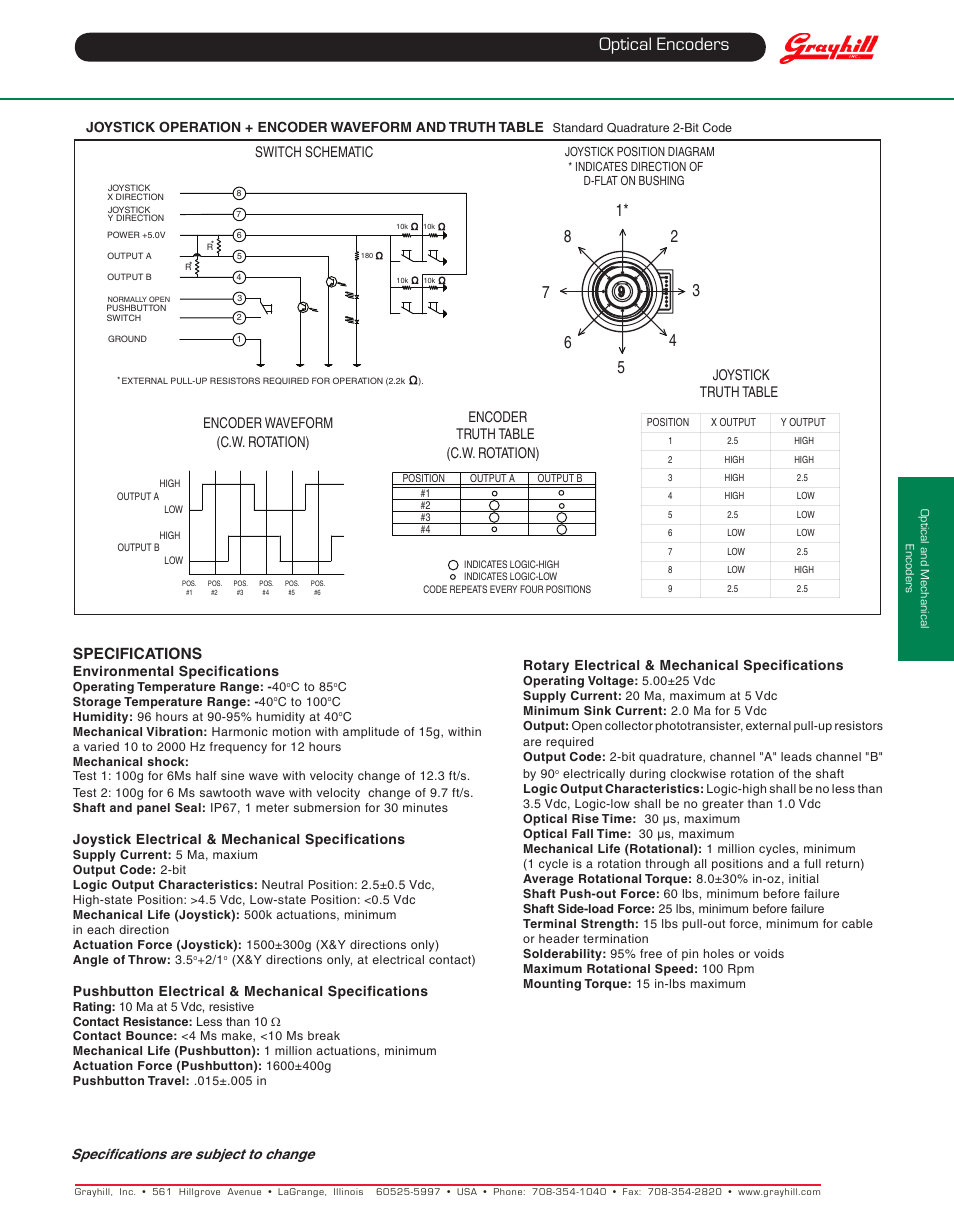

Page 2: Encoder waveform and truth table, Specifications are subject to change, Joystick truth table, Encoder waveform (c.w. rotation) switch schematic, Encoder truth table (c.w. rotation), Environmental specifications, Joystick electrical & mechanical specifications
Optical encoders, Specifications, Joystick operation | Encoder waveform and truth table, Specifications are subject to change, Joystick truth table, Encoder waveform (c.w. rotation) switch schematic, Encoder truth table (c.w. rotation), Environmental specifications, Joystick electrical & mechanical specifications | Grayhill Joysticks/NavCoders 60AR Series User Manual | Page 2 / 2 See also other documents in the category Grayhill Hardware:
