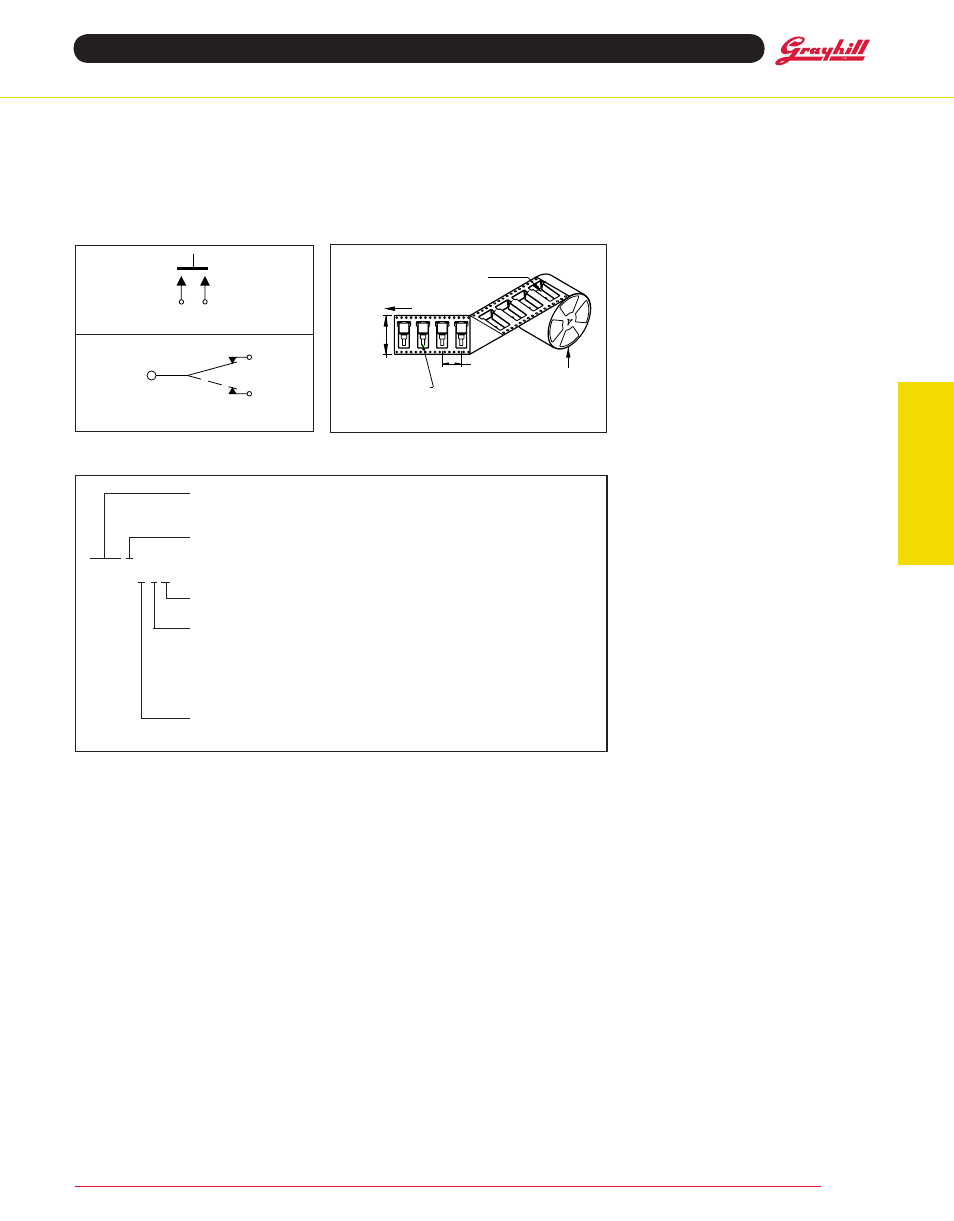

Butt Contact Pushbutton Switches
Series: 38BM = SPST, Momentary, Surface Mount
38BC = SPDT, Momentary, Surface Mount
dimension "a":
0 = 0.020" 4 = 0.215"
38BX-0-H-3-S
Seal: S = O-Ring Seal
Contact Material:
1 = Solder Dip over Gold
2 = Solder Dip over Silver
3 = Gold - RoHS Compliant
4 = Silver - RoHS Compliant
Orientation:
H = Horizontal to PCB
SPSt n.O.
SPSt–n.O.
CirCuitry taPe and reeL PaCKaGinG
OrderinG inFOrMatiOn
SPdt–n.O.
N.O.
TERM. 3
N.C.
TERM. 1
COMM
TERM. 2
SerieS 38BM and 38BC
Sub-Miniature Surface Mount
38BM-4-H-1-S
SHOWN FOR
REFERENCE
ONLY
SWITCHES AND COVER TAPE
NOT SHOWN FOR CLARITY
1.260±.012
(32.00±
0.3MM)
13
INCH
REEL
.630±.004
(16.00±0.1MM)
POCKET
CENTER
LINES
DIRECTION
OF FEED
