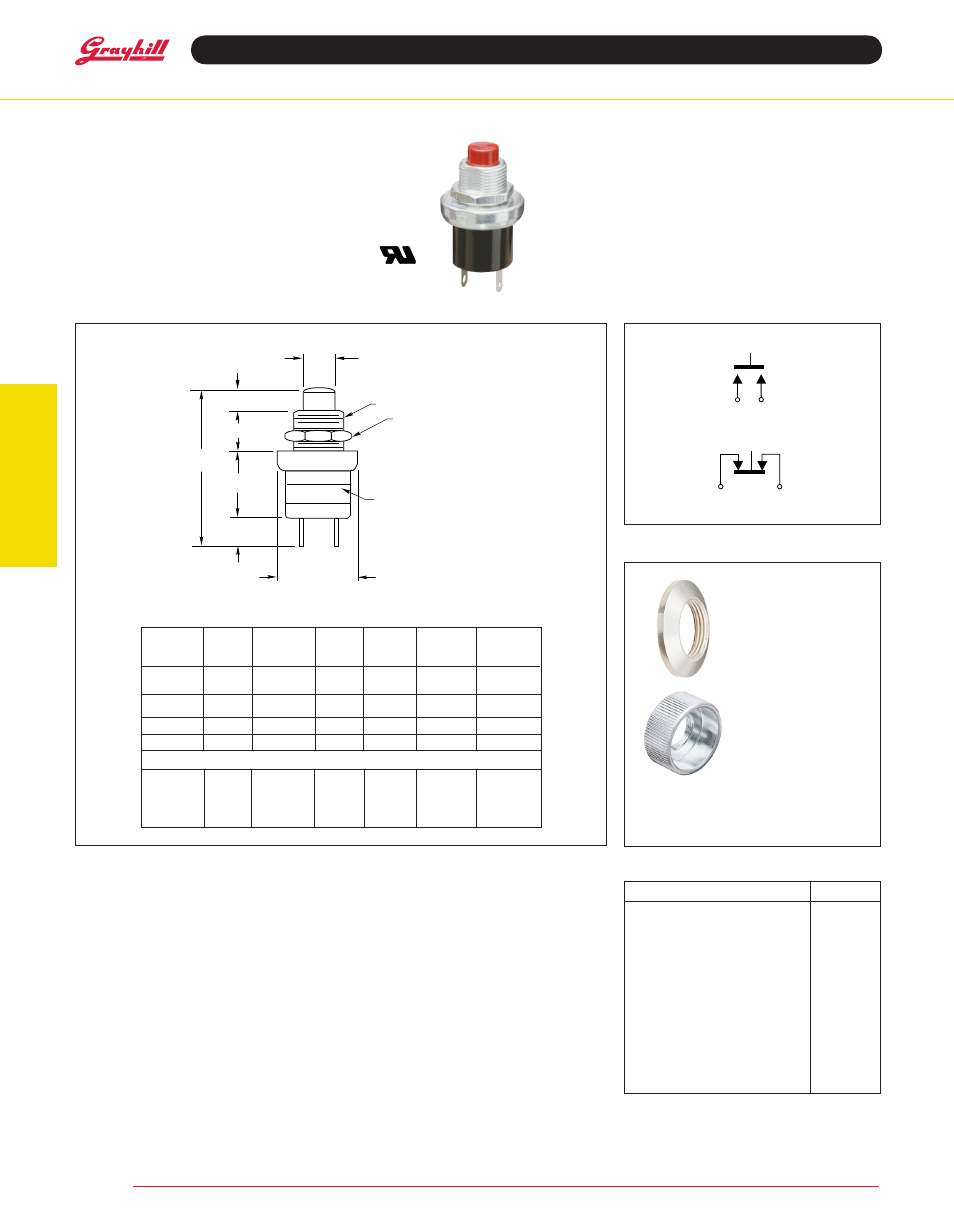

Grayhill Pushbutton switches: Wiping Contacts 4000 Series - Manual

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
Pushbutton Switches
Wiping Contact Pushbutton Switches
SerieS 10
SerieS 4000
SPSt, 1 and 3 amp
FeatureS
• Momentary or
Momentary With Positive Feel
• UL Recognized at 3 Amps
4001(UL)
10-09 (UL)
10-100
4002 (UL)
10-10 (UL)
10-101
diMenSiOnS in Inches (and millimeters)
decorative
Mounting nut
Part No. 07C1040-1
Button Guard
Part No. 10C1015-1
Oper. at rating at rating at
rated 115 Vac 220 Vac actuating
action Part no. Circuitry Load resistive resistive Force
Momentary 4001 SPST-N.O. 100,000 1 Amp 1 / 2 Amp 22 oz. ± 8
10-09
Momentary 4002 SPST-N.C. 100,000 1 Amp 1 / 2 Amp 23 oz. ± 7
10-10
Pos. Feel 10-100 SPST-N.O. 100,000 1 Amp 1 / 2 Amp 35 oz. ± 8
Pos. Feel 10-101 SPST-N.C. 100,000 1 Amp 1 / 2 Amp 35 oz. ± 10
underwriters Laboratory recognized
Momentary 4001 UL SPST-N.O. 6,000 3 Amp —– 22 oz. ± 8
10-09 UL
Momentary 4002 UL SPST-N.C. 6,000 3 Amp —– 23 oz. ± 7
10-10 UL
CirCuitry
aCCeSSOrieS
description & Button Color Part no.
SPST, N.O., Red
4001
SPST, N.O., Black 10-09
SPST, N.O., UL, Red 4001uL
SPST, N.O., UL, Black 10-09 uL
SPST, N.O., Positive Feel, Red 10-100
SPST, N.C., Positive Feel, Black 10-101
SPST, N.C., Red 10-10
SPST, N.C., Black 4002
SPST, N.C., UL, Red 10-10 uL
SPST, N.C., UL Black 4002 uL
Accessory Nut 07C1040-1
Accessory Button Guard 10C1015-1
OrderinG inFOrMatiOn SPeCiFiCatiOnS
rating Criteria
rated: See chart above
Contact resistance: 25 milliohms or less on
a new switch
Voltage Breakdown: 1,000 Vac between
mutually insulated parts
insulation resistance: 1,000 megohms
minimum
additional Characteristics
total travel: Normally open .140 ± .032 (3,56 ±
0,81). Normally closed .110 + .010/ - .020
(2,79 + 0,25/ - 0,51).
Overtravel: Normally open .020 (0,51) min.
Pretravel: Normally closed .010 (0,25) min.
Operating temperature: -40°C to +85°C
uL recognition: See chart above for rating. UL
file number is 35289.
Materials and Finishes
Mounting nut: Brass, tin zinc
Mounting Bushing and Cover: Zinc, zinc
trivalent chromate-plated
Button and Base: Thermoset plastic
Shorting Bar: Brass, silver-plated
Spring: Tinned music wire
Contact terminals: Berylium copper, silver-
plated .0003" to .0005"
Standard OPtiOnS
Epoxy sealed terminals are not available through
distributors.
For terminals bent at 90°, contact Grayhill.
D
.312 + .000 .012
(7,92 0,30) DIA.
B
A
15/32-32 UNS-2A THREAD
HEX MOUNTING NUT
.094 (2,39) THICK
.563 (14,30) ACROSS FLATS
.800 – .015
(20,32 – 0,38)
DIA.
E
C
A = N.O. 1.500 (38,1) REF.
B = N.O. .160 – .015 (4,06 – 0,38)
C = .375 – .010 (9,53 – 0,25)
D = .668 – .015 (16,97 – 0,38)
E = .297 –.020 (7,54 – 0,51)
N.C. .150 – .015 (3,81 – 0,38)
N.C. 1.490 (37,8) REF.
LABEL*
*PART NUMBER AND E.I.A.
DATE CODE LABEL
Dimension across bushing flats
is .406 ± .010 (10,31 ± 0,25).
The inside distance between terminals
is .359 (9,12) at the switch base.
SPSt n.O.
SPSt n.C.
