Optical and Mechanical

Encoders

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com

Optical Encoders

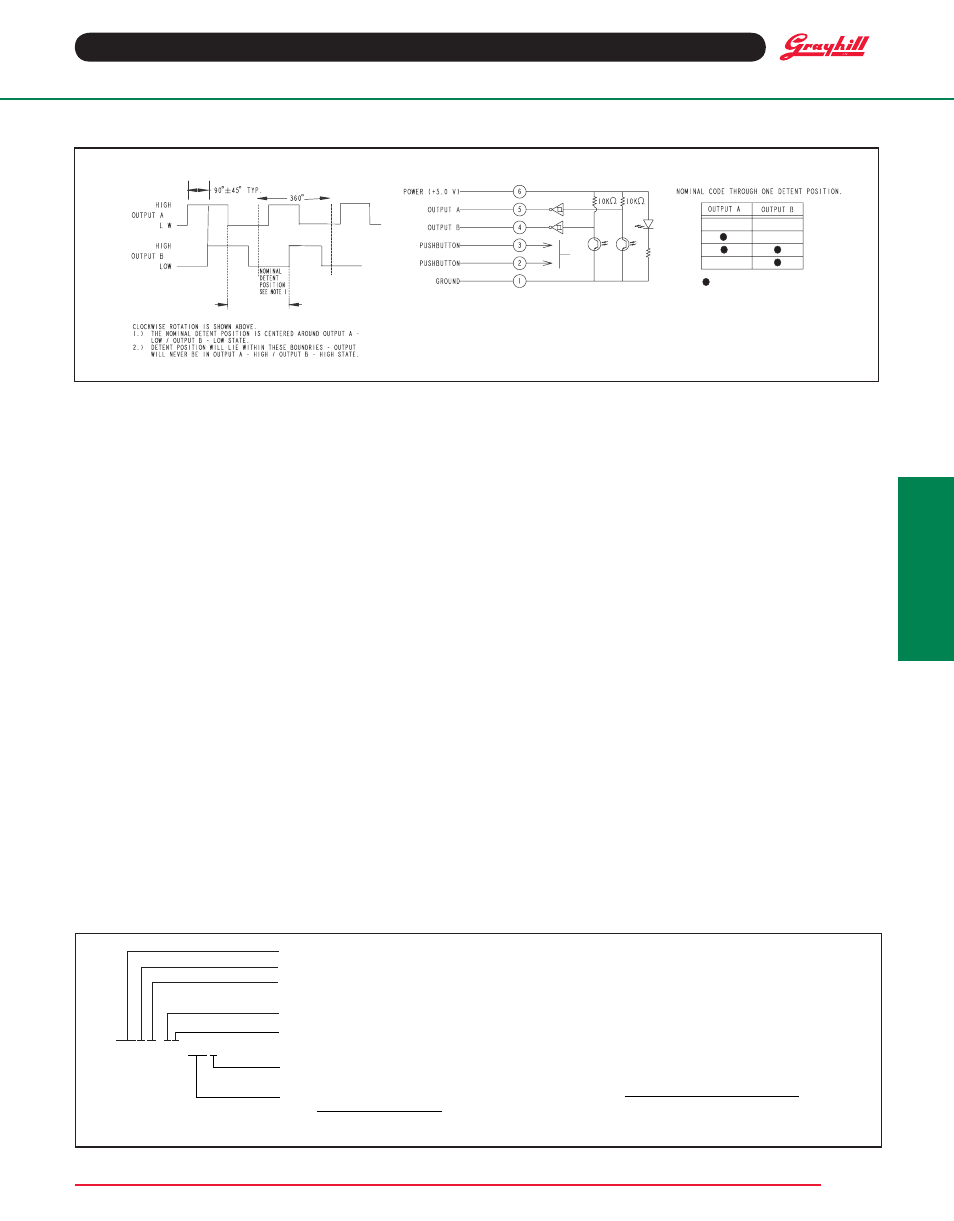

CirCUiTrY, WAVeFOrM AND TrUTH TABle

Indicates logic high; blank indicates logic low.
Code repeats every four cycles.

DETENT 2

DETENT 1

RANGE OF DETENT
REST POSITION

SPeCiFiCATiONS

environmental Specifications

Operating Temperature range: -40

0

C

to 85

0

C

Storage Temperature range: -55

0

C to 100

0

C

Humidity: 96 hours at 90-95% humidity
at 40

0

C

Mechanical Vibration: Harmonic motion with
amplitude of 15g, within a varied frequency of
10 to 2000 Hz
Mechanical Shock:
Test 1: 100g for 6 ms half-sine wave with a
velocity change of 12.3 ft/sec
Test 2: 100g for 6 ms sawtooth wave with a
velocity change of 9.7 ft/sec

rotary electrical and
Mechanical Specifications

Operating Voltage: 5.00±.25Vdc
Supply Current: 30 mA maximum at 5Vdc
Output Code: Two-bit quadrature, channel
A leads channel B by 90

0

electrically during

clockwise rotation of the shaft.
logic Output Characteristics:
Logic high signal shall be no less
than 3.8 Vdc
Logic low signal shall be no greater
than 0.8 Vdc
Minimum Sink Current: 2.0 mA
Power Consumption: 150 mW maximum
Mechanical life:

1 million cycles of operation

for Medium, Low and Non-Detent. 1/2 million
cycles of operation for High.

One cycle is a

rotation through all positions and a full return.

Average rotational Torque: H= 6.0 ± 2.6
in-oz, M= 2.7 ± 1.8 in-oz, L= 1.4 ± 0.8 in-oz,
N= <0.50 in-oz. Torque shall be within 50% of
inital value throughout life.
Mounting Torque: 15 in-oz maximum
Shaft Push-Out Force: 45 lbs minimum
Shaft Pull-Out Force: 45 lbs minimum
Terminal Strength: 15 lbs minimum terminal
pull-out force for cable or header termination
Solderability: 95% free of pinholes and voids

Pushbutton electrical and Mechanical
Specifications

rating: 50 mA at 12 Vdc
Contact resistance: <10

life: 1/2 million actuations minimum
Contact Bounce: <4 ms make, <10 ms break
Actuation Force:510 ±150 grams
Shaft Travel: .025 ± .015 inch

Materials and Finishes

Bushing: Zinc
Shaft:
Aluminum
retaining ring: Stainless Steel
Detent Spring: Music Wire
Detent Ball: High Carbon Chrome, Nickel
finish
Code Housing: Polyamide Polymer, Hiloy 610
Aperture: Stainless Steel

Detent: Polyamide Polymer, Hiloy 610
rotor Hub: Polyamide Polymer, Hiloy 610
Code rotor: Stainless Steel
Printed Circuit Boards: Nema Grade FR4,
Double Clad with Copper, Plated with Gold
over Nickel
infrared light emitting Diode Chips: Gal-
lium Aluminum Arsenide
Silicon Phototransistor Chips: Gold and
Aluminum Alloys
resistor: Metal Oxide on Ceramic Substrate
Solder Pins: Brass, Plated with Tin
Tact Switch: Cover - Stainless Steel, contact
Disc - Phosphor Bronze with silver cladding,
terminal - brass with silver cladding, base -
UL94V-0 Nylon 19: High Temp
Back Plate: Stainless Steel
Spacer: Nomex Type 410
Cable: Copper Standard with Topcoat in PVC
Insulation
Connector: Glass filled Polyester, Tin/Nickel
Phosphor Bronze
label: TT406 Thermal Transfer Cast Film
Solder: 96.5% tin / 3% silver / 0.5% copper,
no clean
lubricating Grease: NYE Nyogel 774L
Studs: Stainless Steel
lockwasher: Stainless Steel
Hex Nuts: Stainless Steel

61l515 -XX-040

c

Series

Operating Voltage: 5 = 5 Volts

Rotational Torque: N = Non-Detent, H=High Torque, M=Medium Torque, L=Low Torque

Pushbutton Option: 0=Non-Pushbutton, 5=510 grams

Termination: C = .050 Center ribbon Cable with connector

Cable Termination: 040=4.0 inches. Cable is terminated with Amp Connector P/N7-215083-6.
See Amp Mateability Guide for Mating Connector details.

Angle of Throw: 15 = 15° for complete quadrature cycle change and 24 detent positions
