Optical encoders, Specifications, Options – Grayhill Human Interface Optical Encoders 62R Series User Manual

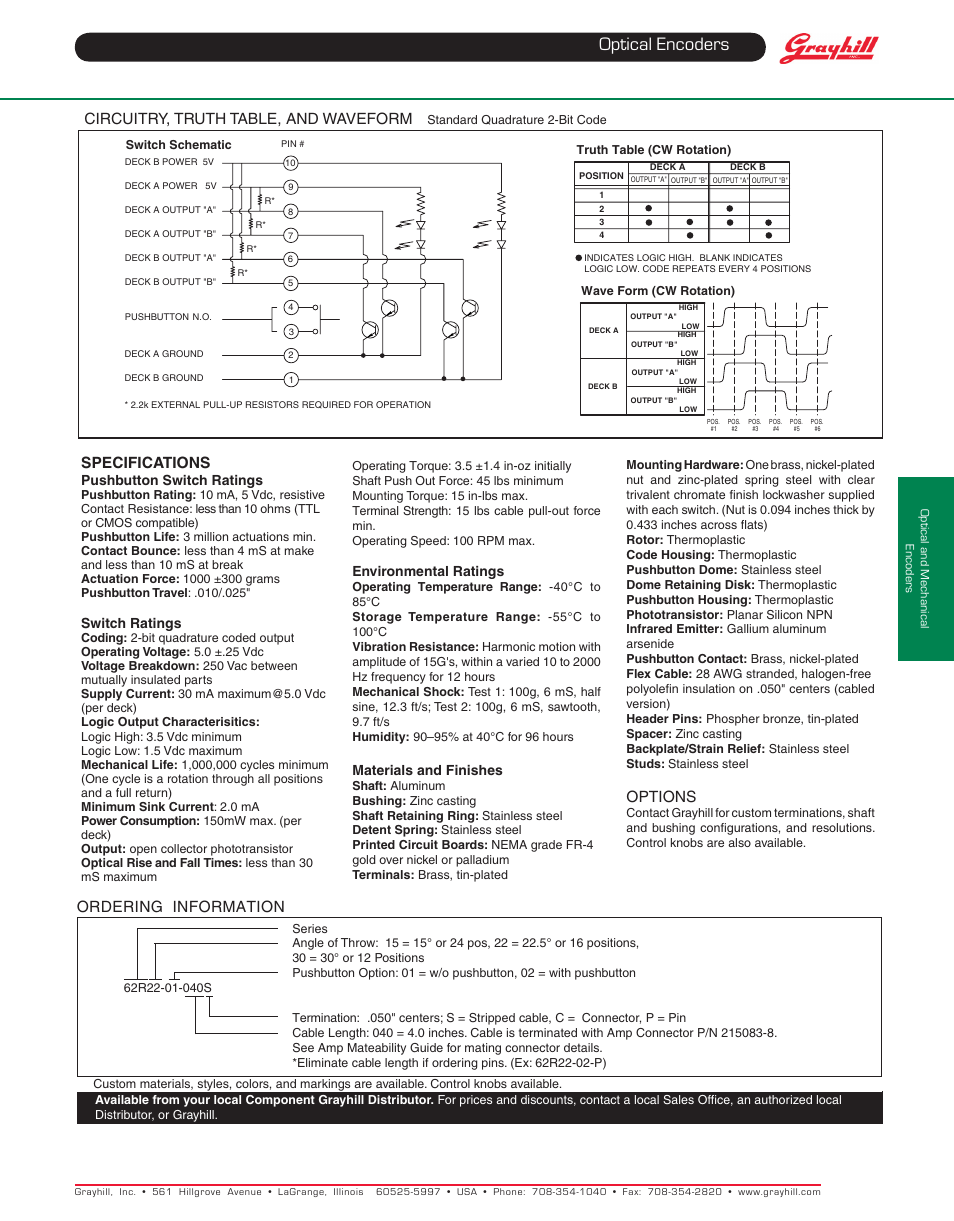

Page 2: Circuitry, truth table, and waveform, Ordering information
