62HNXX-XX-040C

SPECIFICATIONS

Pushbutton Switch Ratings

Rating: at 5 Vdc, 10 mA, resistive

Contact Resistance: less than 10 ohms

(TTL or CMOS compatible)

Pushbutton Life: 3 million actuations

minimum

Voltage Breakdown: 250 Vac between

mutually insulated parts

Contact Bounce: less than 4 mS at make

and less than 10 mS at break

Actuation Force: 1100 ±300g

Encoder Ratings

Coding: 2-bit quadrature coded output

Operating Voltage: 5.0 ±.25 Vdc

Supply Current: 30 mA [email protected] Vdc

Logic Output Characteristics:

Logic High: 3.0 Vdc minimum

Logic Low: 1.0 Vdc maximum

Mechanical Life: 1,000,000 cycles minimum

(One cycle is a rotation through all positions

and a full return)

Minimum Sink Current: 2.0 mA for 5 Vdc

Power Consumption: 150mW maximum

Output: open collector phototransistor

Logic Rise and Fall Times: less than 30 mS

maximum
Operating Torque: 5.0 in-oz +/- 1.5 in-oz
initial

Shaft Push Out Force: 45 lbs minimum
Mounting Torque: 15 in-lbs maximum
Terminal Strength: 15 lbs cable pull-out force
minimum
Operating Speed: 100 RPM maximum

Environmental Ratings

Operating Temperature Range: -40°C to
85°C
Storage Temperature Range: -55°C to
100°C
Vibration Resistance: Harmonic motion with
amplitude of 15G, within a varied 10 to 2000
Hz frequency for 12 hours
Mechanical Shock: Test 1: 100G, 6 mS, half
sine, 12.3 ft/s; Test 2: 100G, 6 mS, sawtooth,
9.7 ft/s
Relative Humidity: 90–95% at 40°C for 96
hours

Materials and Finishes

Code Housing: Reinforced thermoplastic
Shafts: Stainless Steel
Bushing: Zinc casting
Shaft Retaining Rings: Stainless steel

Detent Spring: Stainless steel
Detent Ball: Stainless steel
Detent Section: Hiloy 610
Printed Circuit Boards: NEMA grade FR-4
gold over nickel or palladium
Terminals: Brass, tin-plated
Mounting Hardware: One brass, nickel-plated
nut and zinc-plated spring steel with clear
trivalent chromate finish lockwasher supplied
with each switch. (Nut is 0.094 inches thick by
0.433 inches across flats)
Rotor: Thermoplastic
Pushbutton Dome: Stainless steel
Phototransistor: Planar Silicon NPN
Infrared Emitter: Gallium aluminum
arsenide
Flex Cable: 28 AWG, stranded/top coated wire,
PVC coated on .050 centers (cabled version)
Header Pins: Brass, tin-plated
Spacer: Hiloy 610
Shim: Stainless Steel
Endcap: Thermoplastic
Non-turn Pin: Stainless steel
Backplate/Strain Relief: Stainless steel
Studs: Stainless steel

ORDERING INFORMATION

Available from your local Grayhill Component Distributor.
For prices and discounts, contact a local Sales Office, an authorized local Distributor, or Grayhill.

Custom materials, styles, colors, and markings are available. Control knobs available.

Series
Style:
HN = High Torque, Concentric, Non-Turn
Angle of Throw: 45 = 45° or 8 positions,30 = 30° or 12 positions,

22 = 22.5° or 16 positions

Termination: S = stripped cable, C = connector, P = pins
Cable Termination: 040= 4.0in. Cable is terminated with Amp Connector

P/N 215083-6. See Amp Mateability Guide for mating

connector details. *Eliminate cable length if ordering

pins. (Ex: 62HN22-H9-P)

Pushbutton Option:

0 = w/o pushbutton, 9 = 1100g

pushbutton

Rotational Torque:

H = High Torque

OUTPUT

A

OUTPUT

B

HIGH

LOW

HIGH

LOW

POSITION NUMBER

1 2 3 4 5 6

Clockwise Rotation

Position Output A Output B

Indicates logic high; blank indicates

logic low. Code repeats every 4

positions.

1

2

3
4

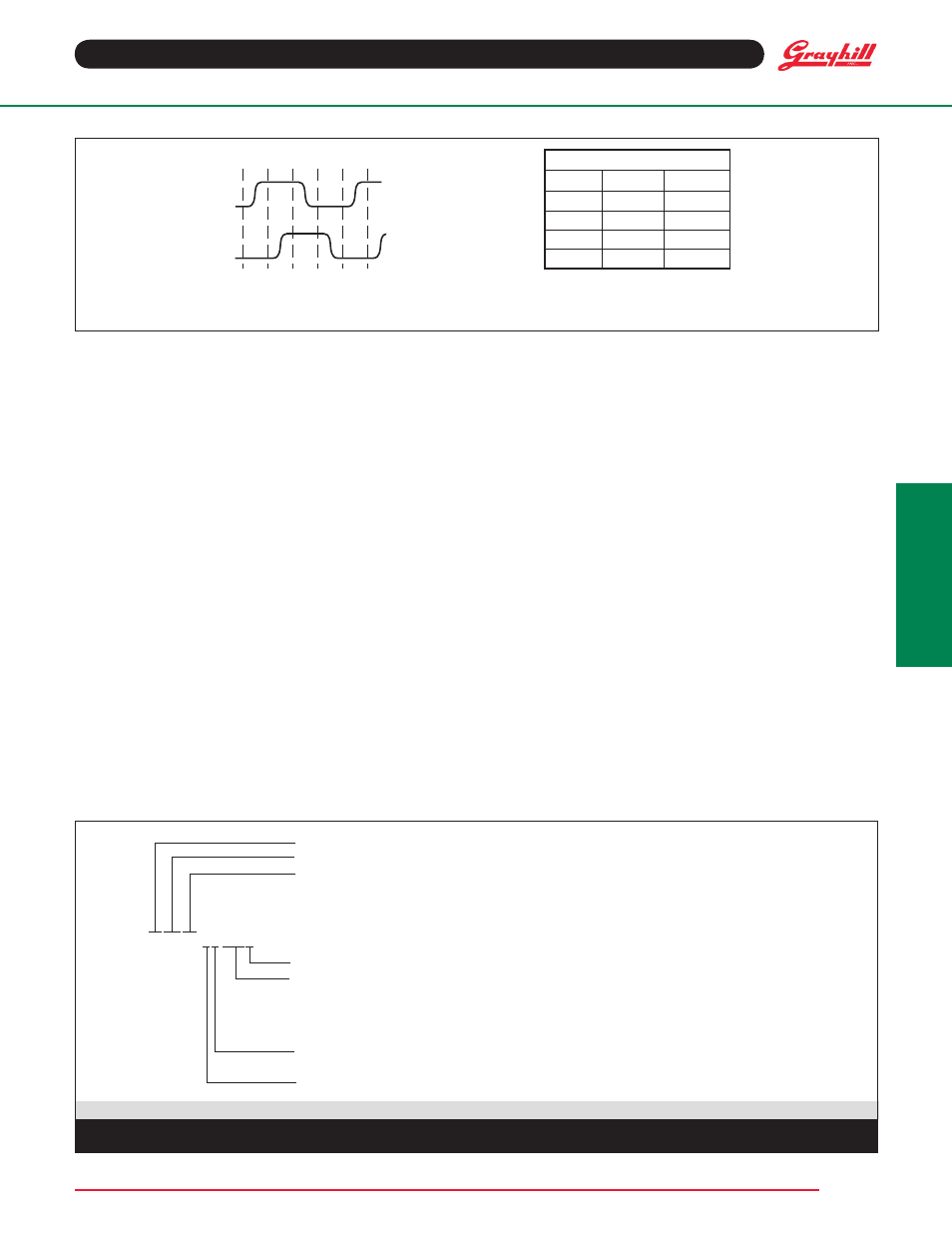

WAVEFORM AND TRUTH TABLE

Optical

and
Mechanical

Encoders
