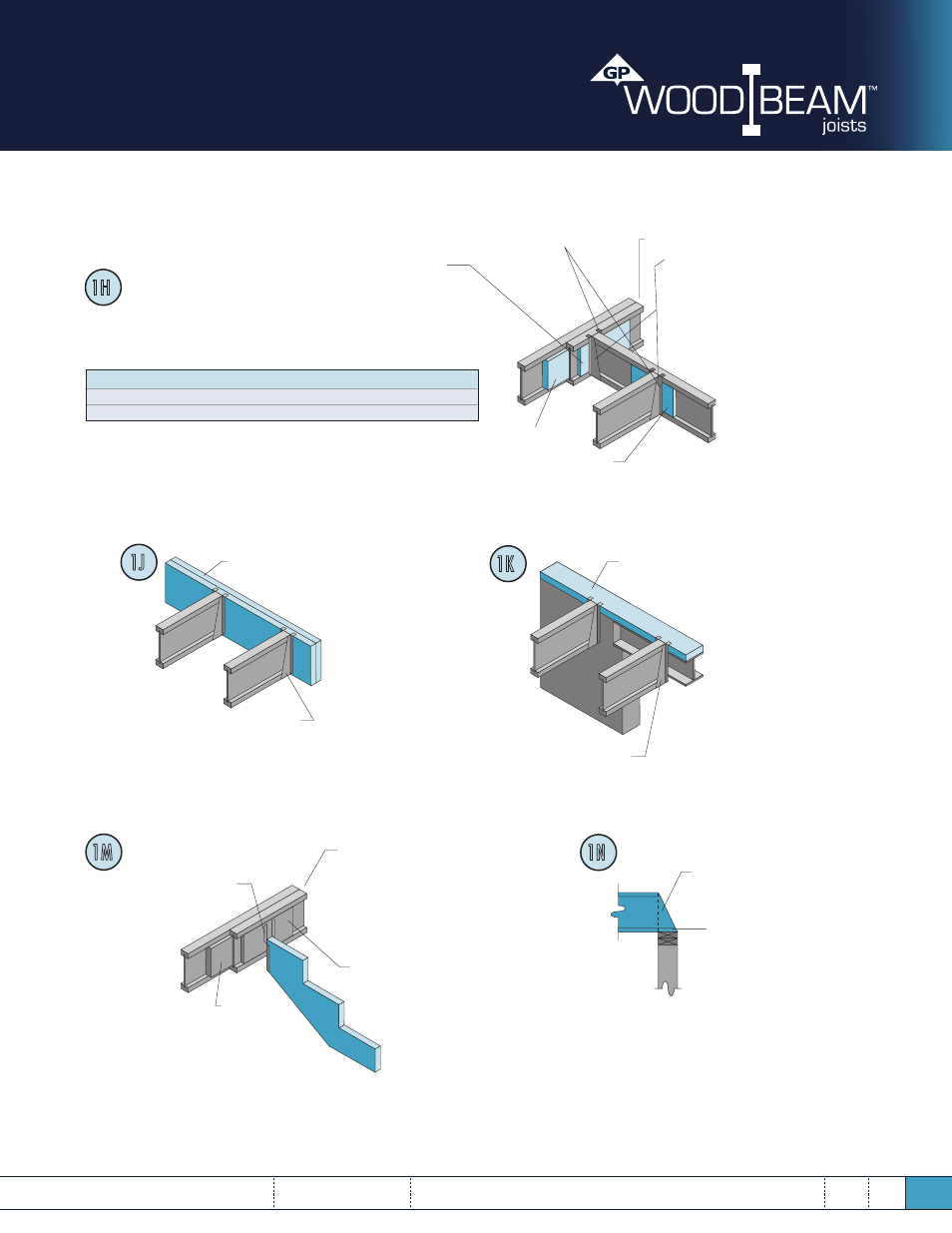

Floor details (continued)
1J
1M 1N
Filler block
Maximum factored support = 1620 pounds
1H
Flange Width
2 "
3 ½" ½ 5½"
7¼"
Filler block
1K
1"
1½"
Backer block (use if factored hanger load exceeds 360 lbs.) Before installing a
backer block to a double I-joist, drive three additional 3 inch nails through the
webs and filler block where the backer block will fit. Clinch. Install backer
tight to top flange. Use twelve 3 inch nails, clinched when possible. Verify
hanger capacity with manufacturer. Maximum factored resistance for
hanger for this detail = 1620 pounds.
Backer blocks (Blocks must be long enough to permit required nailing without splitting)
Material Thickness Required* Minimum Depth**
* Minimum grade for backer block material shall be Utility grade SPF (south) or better
for solid sawn lumber and Rated Sheathing grade for wood structural panels.
**For face-mount hangers use net joist depth minus 3¼".
Top - or face - mounted hanger Double I-Joist header
Note: Unless hanger sides laterally
support the top flange, bearing
stiffeners shall be used. Backer blocks
are not required for top mount hangers
with factored reactions less than
360 pounds.
Face-mount hangers shallower
than the joist depth shall
have full depth bearing
web stiffenners and
shall have
side flanges
at least 60%
of the joist
depth.
Backer block required
(both sides for face-mounted hangers)
For hanger capacity see hanger manufacturer’s recommendations.
Verify double I-Joist capacity to support concentrated loads.
Glulam or multiple structural composite
lumber (SCL) beams
For nailing schedules
for multiple SCL beams,
see the manufacturer’s
recommendations
Top - or face - mounted hanger installed
per manufacturer’s recommendations
Note: Unless hanger sides laterally support the top flange,
bearing stiffeners shall be used.
2x plate flush with
inside face of wall
or beam
Top-mounted hanger installed
per manufacturer’s recommendations
Note: Unless hanger
sides laterally support
the top flange, bearing
stiffeners shall be used.
Install framing anchor
per manufacturer’s
recommendations
(both sides of stringer)
Multiple I-Joist header with
full depth filler block shown.
Glulam and multiple SCL
headers may also be used.
Verify double I-Joist capacity to
support concentrated loads.
Backer block attach per 1H.
Nail with twelve 10d nails,
clinch when possible.
Do not bevel-
cut joist beyond
inside face
of wall
Attach
I-Joist
per 1B
Note: Blocking required at
bearing for lateral support,
not shown for clarity.
All nails shown in the details below are assumed to be common nails unless otherwise noted. 10d box nails may be substituted for 8d common shown
in details. Individual components not shown to scale for clarity.
