Addendum:
How to secure winch cable to drum

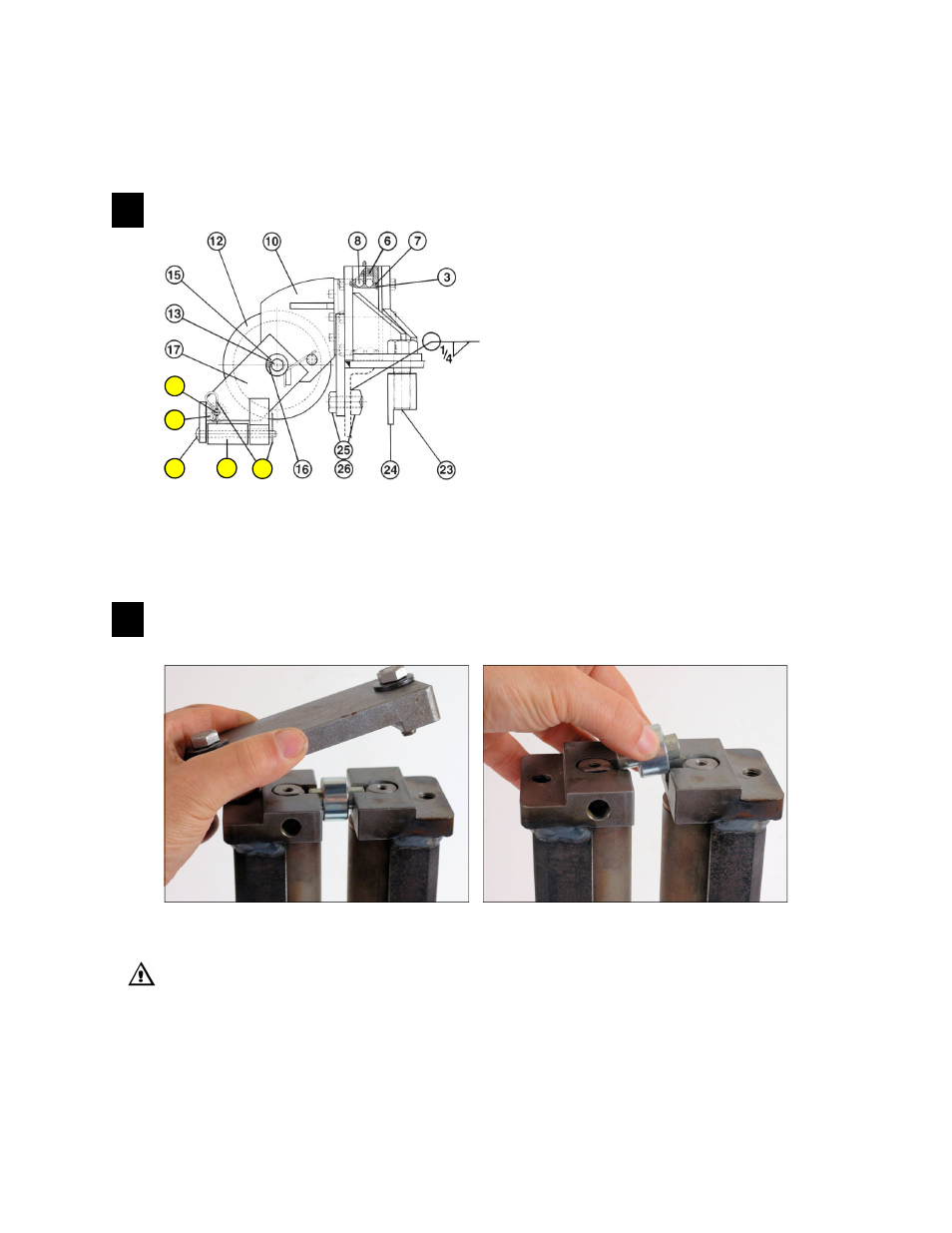

Remove hitch pins 22 on upper and one lower roller. Pull out pin 20 and remove roller 21. Remove pin 18
releasing roller 19. The cable will now be free to pull thru the Universal Sheave.
26
1
2
Feed winch line loop thru Swivel Sheave, following directions below.
Remove the top plate and roller on winder and remove cable. Replace parts so as not to loose them.
Wind the cable on the drum tightly and secure loop end to a lower wrap with tie wraps or suitable fastener.
Ensure that the winch clutch is engaged when using a accessory on the shaft extension so that the drum turns
with the shaft.
22 21
19
20
18
