General Machine Products 70524 Adams CD3 Continuous Duty Winch - Manual (Page 16)

AK 7/18/2012 ver 5

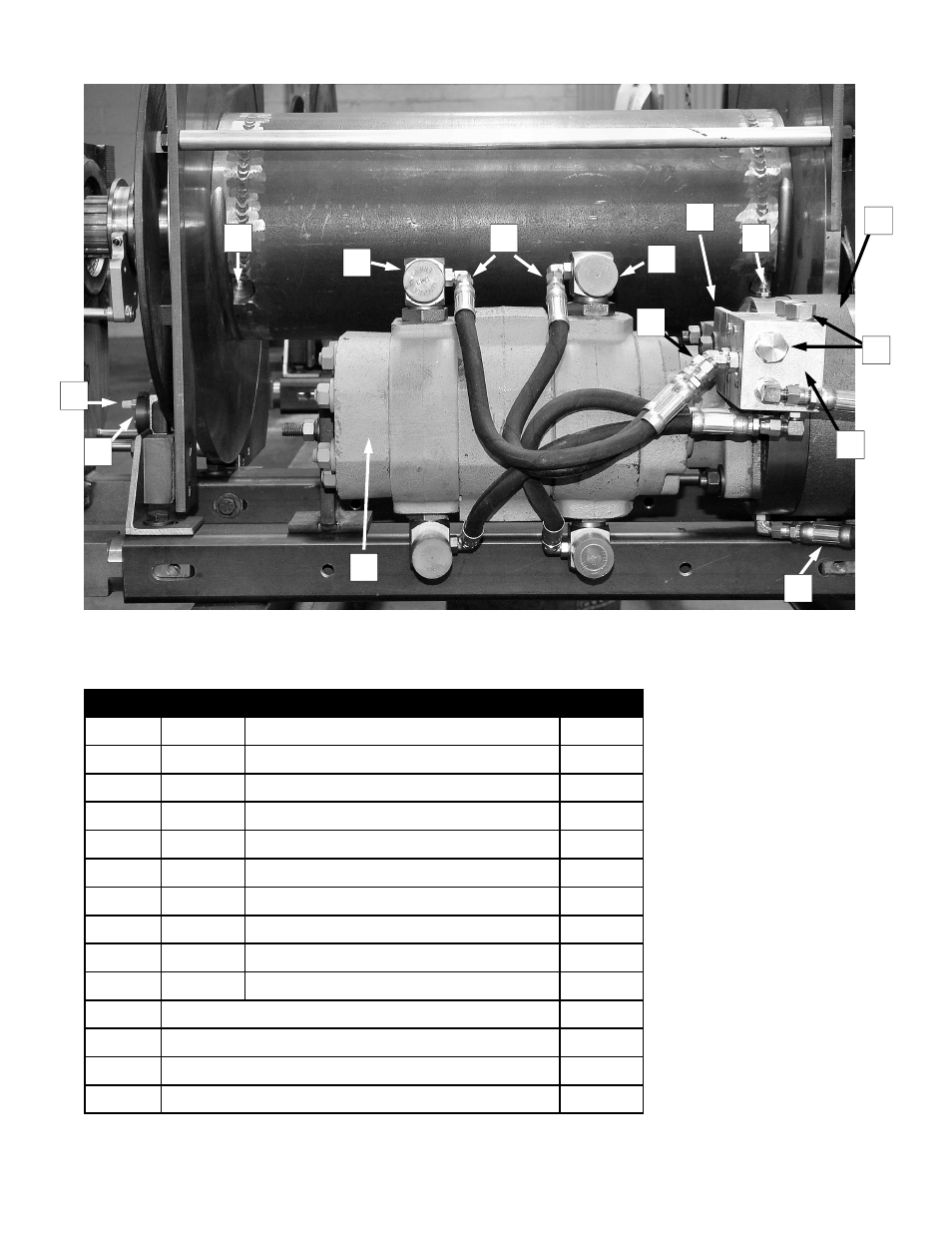

Motor/Full Load Brake / Shuttle Valve
Locator Item # Description Qty.
A 26100 Motor, Two-section Hydraulic 1
B 25654 Fitting, Left Hand 2
C 25658 Fitting, Right Hand 2
D 25369 Hose, Assembly 5
E 26099 Brake, Full Load 1
F 26281 Block, Shuttle Valve 1
G 25363 Cartridge, Shuttle Valve 3
H 26534 Bracket, Shuttle Valve (not shown) 1
J 25695 Fittings, 45º SAE 2
K 25365 Fittings, 90º SAE 8
Note 1 Location of Bleeder Screw for Full Load Brake
Note 2 Location of Bleeder Screw for Caliper Brake
Note 3 Rope Clamp-Order to match Cable Size 2
Note 4 Inlet Port for Caliper Brake from Acturator
K
H
C B
A
2
3
4
D
1
J
F
G
E
16
