General Machine Products Co., Inc.

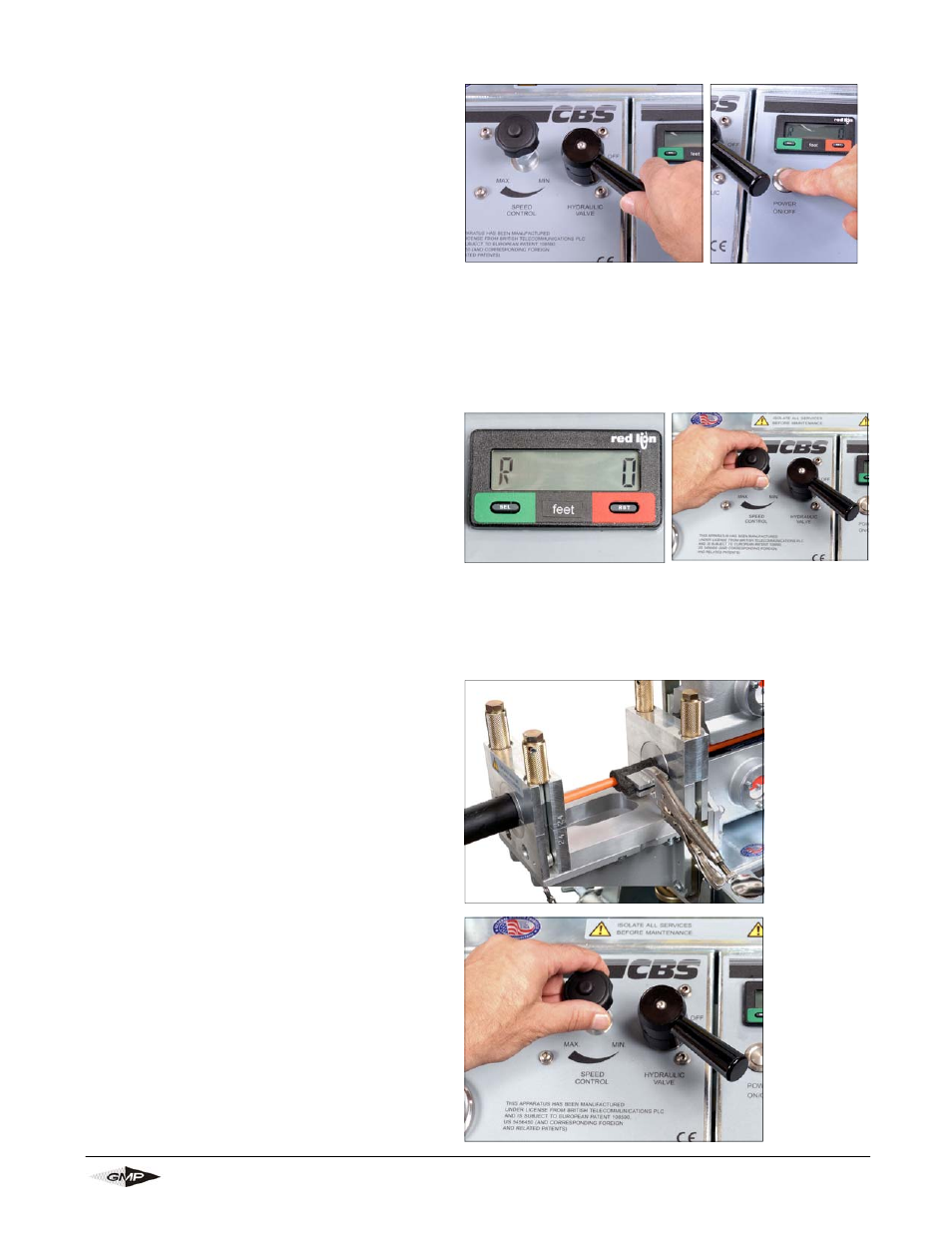

18. Turn the Hydraulic lever valve to
the “ON” position.
20. Turn the speed control valve
clockwise (towards ‘max’) until the
desired speed (130 ft/min max) is
achieved.
21. Continue to install rod into sub-duct. The operator wearing work gloves should insure the
rod enters the machine without debris. Care must be taken to avoid injury by clothing or
fingers being dragged into the machine. Failure to do so may result in damage to the rod
form the drive belts and/or jamming of the rod.
23. On completion screw the speed
control knob to the min to stop the
machine, (counter clockwise),
press the reset button and select
neutral from the direction control
valve.
19. Turn on the digital display by pressing the “power on/off” button. Allow approx. five
(5) seconds for the display to appear. Pressing SEL toggles between installation dis-
tance (ft) and speed (ft/min) (designated by R). Pressing RST will reset the distance
reading to zero (0).
24. To prevent dirt from entering the
machine when pulling back the
rod, use a felt wiper at the sub-
duct out feed side and clamp it
tightly to the rod as shown in
photo.
