General Machine Products 89300 AirStream Cable Blowing Machine - Manual (Page 41)

Page 41 of 44

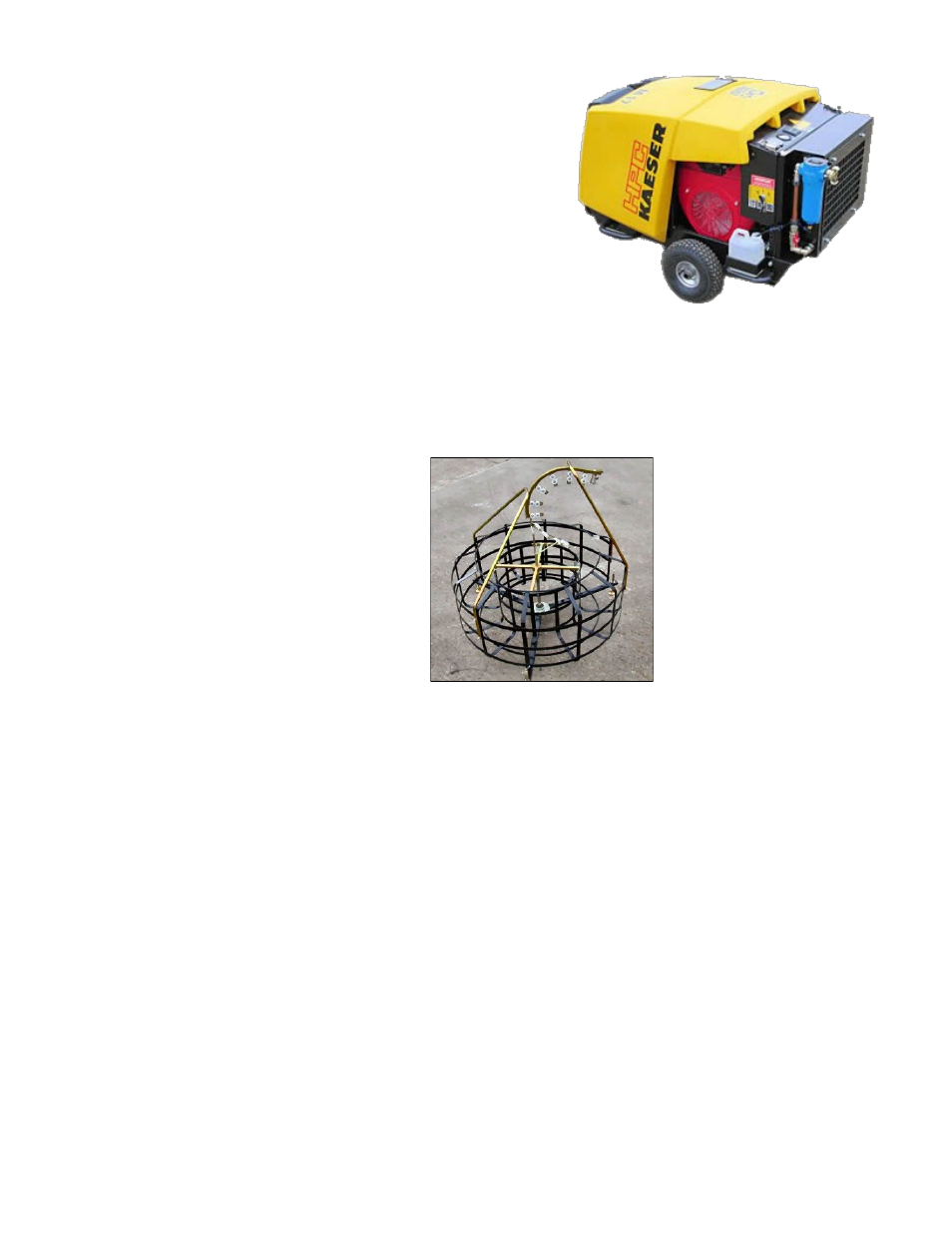

Airstream Compressor
P/N 89011
M17 Compressor (p/n 89011) is designed specifically for use with
Breeze and the Airstream. This reliable & efficient screw compres-
sor, powered by a gasoline engine, provides a maximum working
pressure of 215 psi (15 bar) with 35.3cfm (1000 liters/m) flow.
The compressor is fitted with an after-cooler and water separator
and comes mounted on a two wheeled trolley.
Micro Cable Fleeter
P/N 89002
The Micro Cable Fleeter replaces the manual
method of “figure eighting” cable, and pro-
vides protection and security for the cable.
It has a nominal capacity to store 6500 ft.
(2000 meters) of 8.5mm diameter cable.
BLOWING ACCESSORIES
Engine: Honda 21 hp Width: 31" (800 mm)
Fuel Cap.: 5 gal (20 liters) Height: 30" (780 mm)
Length: 47" (1200 mm) Weight: 452 lbs. (205 kg)
