Dimensions and Technical Specifications RTCSmp Built-In Temperature Controlled Hold-Line
Part # 4532287 Rev 4 (6/10/14) 7
3 Dimensions and Technical Specifications

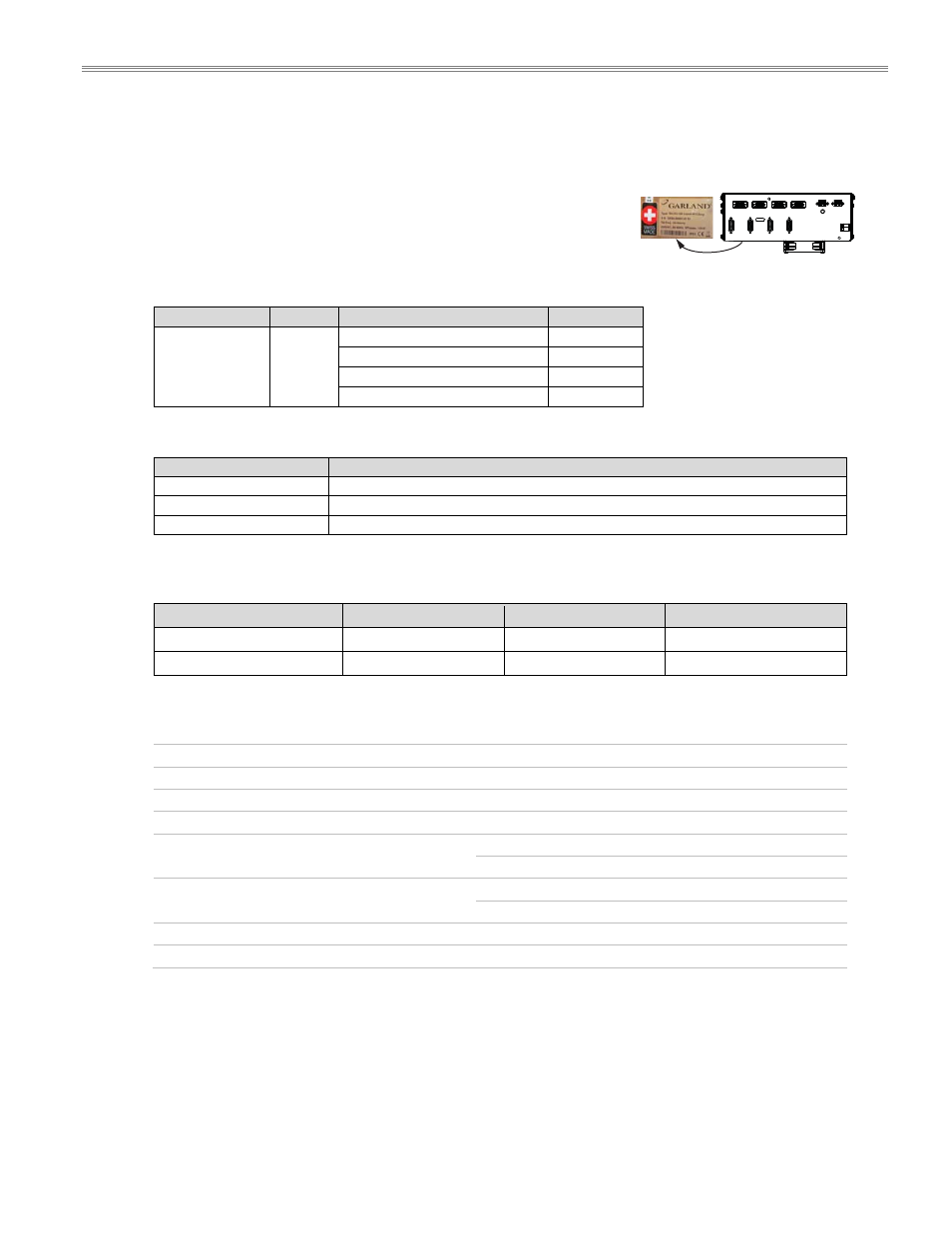

3.1 Rating Plate
The rating plate specifies important information such as model number,
serial number, and electrical specifications. The rating plate is affixed to
the bottom of the generator, by the connectors at the front.
3.2 Nomenclature and Models
Series Built-In Power (Watt) Model
HO = Hold Line IN
800 (1 heat-retaining plate) HO IN 800
1600 (2 heat-retaining plates) HO IN 1600
2400 (3 heat-retaining plates) HO IN 2400
3200 (4 heat-retaining plates) HO IN 3200
3.3 Dimensions
Component Dimensions
Generator Housing 11.93” x 12.28” x 5.31” (303 x 312 x 135 mm)
Heat Retaining Plate 20.47” x 12.60” x 2.95” (520 x 320 x 75 mm)
Ceran Glass 20.47” x 12.60” x 0.16” (520 x 320 x 4 mm)
3.4 Electrical Specifications
Model Voltage Power Power Per Heating Plate
HOIN800/1600/2400/3200 208 V AC / 1Ph 3200 W / 17A 800W
HOIN800/1600/2400/3200 230 V AC / 1Ph 3200 W / 15A 800W
3.5 Operating Conditions
Max. Tolerance of Nominal Supply Voltage +6 /-10 %
Supply frequency 50/60 Hz
Ingress Protection class IP X0
Minimal Diameter of Induction Pan 5” (12cm)
Maximum Ambient Temperature In Storage > -4°F to +158°F (-20°C to +70°C)
In Operation >+ 41°F to +104°F (+5°C to +40°C)
Maximum Relative Air Humidity In Storage > 10% to 90%
In Operation > 30% to 90%
Set Temperature Range 122-212°F / 50-100°C
Maximum air flow: 56.50cfm / 96m 3 per hour and min. opening: 9.30 sq.in. / 6000mm 2 is required.
3.6 Compliances
 North American models:
ETL listed in compliance with UL 197, CSA C22.2 No.109, NSF-4. Complies with FCC part 18, ICES-001
 CE models
comply with the latest European Norms:
EN 60335-1, EN 60335-2-36, EN 62233 (EMC/EMV)
