Installation RTCSmp Built-In Temperature Controlled Hold-Line
16 Part # 4532287 Rev 4 (6/10/14)
4.5.3.1 Orientation
The generator can be mounted in any orientation.
IMPORTANT: Consideration must be given to
electrical connections, cooling (fresh air intake and
exhaust) and service access.
4.5.3.2 Mounting Methods
To install, use the holes (A) and/or the
mounting brackets (C).
(A) There are two holes on the back
for installation.
(B) Slots for inserting the mounting
brackets.
(C) Mounting brackets (provided).

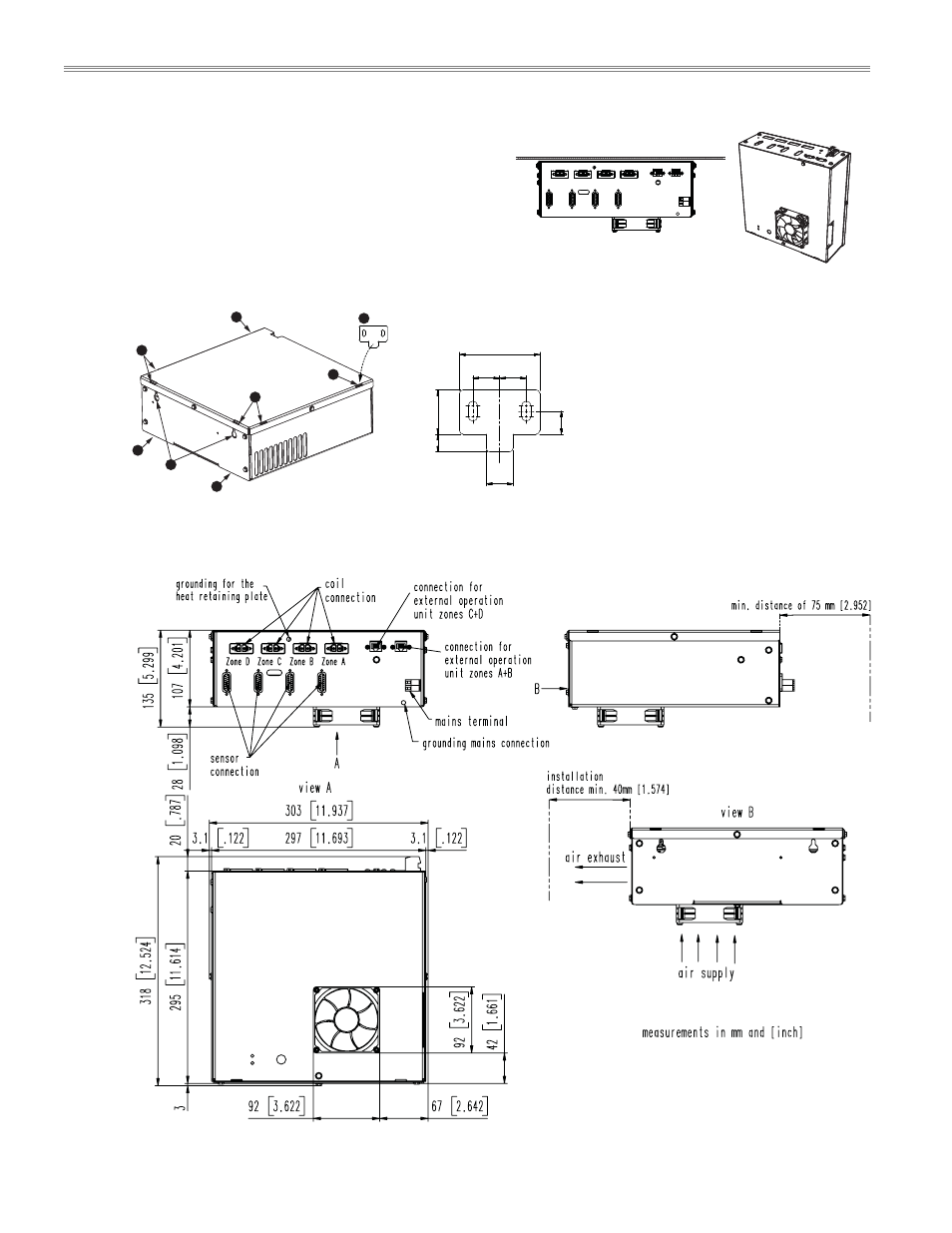

4.5.3.3 Dimensions: Induction Generator RTCSmp HOIN800/1600/2400/3200
A
B
B
B
B
B
B
C
1.77” (45 mm)
0.59”
(15 mm)
0.39” (10 mm)
0.51”
(13 mm)
0.98” (25 mm)
0.59”
(15 mm)
0.59”
(15 mm)
