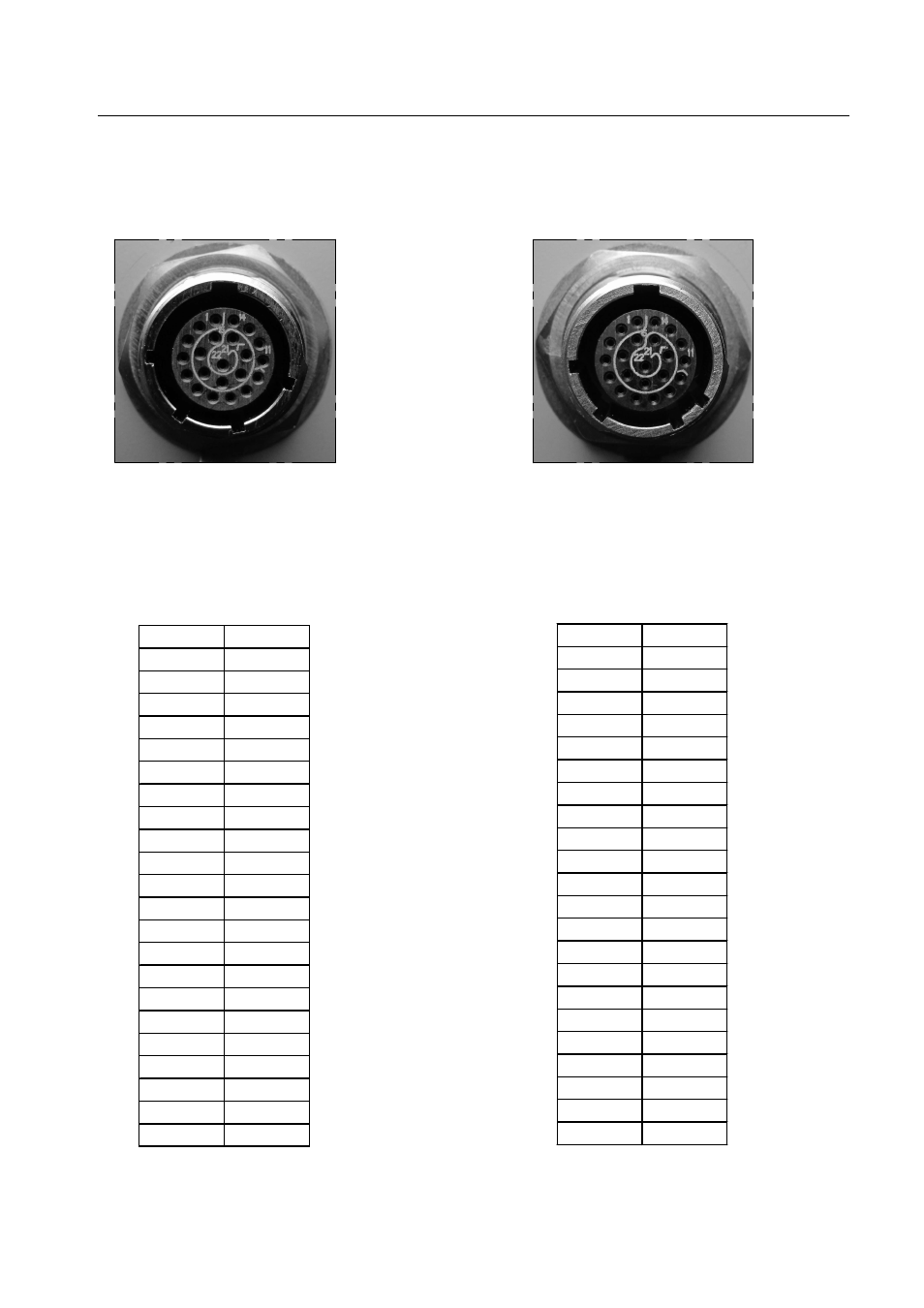

J3 = DATA CABLE
AMPHENOL CONNECTOR
#91569783-35J
(2) USB, (1) TRUE ETHERNET,
(2) 5 Vdc POWER OUTPOUTS
J4 = DATA CABLE
AMPHENOL CONNECTOR
#91-569783-35S
(2) SERIAL, & (1) USB
J3 PIN# J3 SIGNAL
1 PPTMDI2-
2 PPTMDI2+
3 PPTMDI1-
4 PPTMDI1+
5 PPTMDI0-
6 PPTMDI0+
7 USB4_GND
8 USBDP4
9 USBDM4
10 USB4_PWR
11 USB3_GND
12 USBDP3
13 USBDM3
14 USB3_PWR
15 +5V_GND
16 +5VDC
17 +5VDC
18 NC
19 NC
20 PPTMDI3-
21 PPTMDI3+
22 +5V_GND
J4 PIN # J4 SIGNAL
1 GND
2 DTR2
3 SOUT2
4 SIN2
5 DCD2
6 RI1
7 CTS1
8 R TS1
9 DSR1
10 GND
11 DTR1
12 SOUT1
13 SIN1
14 DCD1
15 USBDP2
16 USBDM2
17 USB2_PWR
18 RI2
19 CTS2
20 RTS2
21 DSR2
22 USB2_GND
Connector Data cables are not supplied with the docking station
MIL STD 461F was achieved by using completely shielded cables. Cables
containing USB signals must not exceed 5 meters in length.
