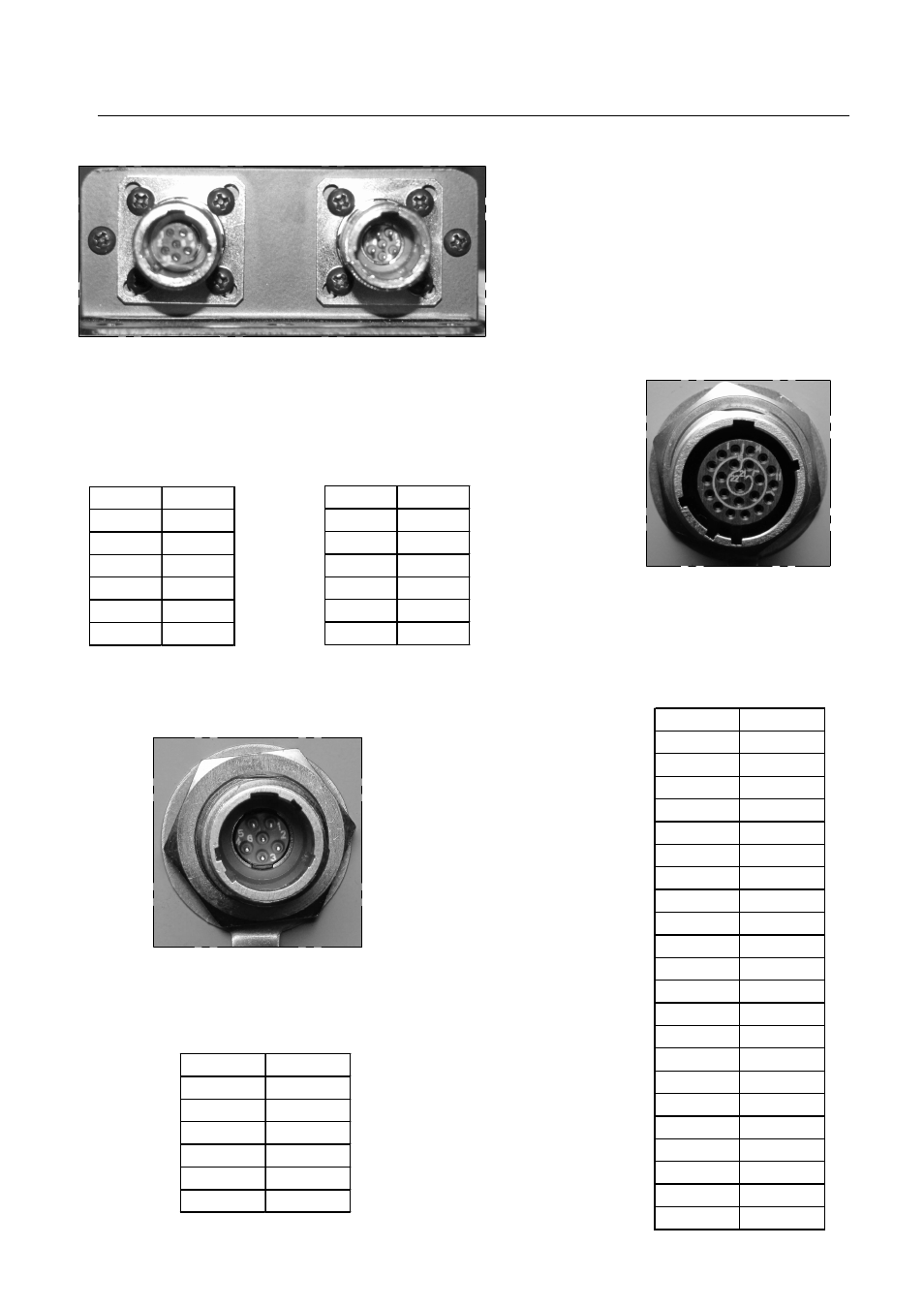

J2 = DATA CABLE
AMPHENOL CONNECTOR
#91-569783-35H
(1)VIDEO, (1)AUDIO,
(1)USB ETHERNET
J1 = INPUT POWER
AMPHENOL CONNECTOR
#91-569781-35G
J1 PIN # J1 SIGNAL
1 PWR_IN
2 GND
3 GND
4 GND
5 PWR_IN
6 PWR_IN
J2 PIN # J2 SIGNAL
1 VSYNC
2 HSYNC
3 DDC2BD
4 NC
5 SYNC_GND
6 +5V_VIDEO
7 CRTB_GND
8 CRTG_GND
9 CRTR_GND
10 GND
11 NC
12 CRTB
13 CRTG
14 CRTR
15 USB_RXP
16 USB_TXN
17 USB_TXP
18 HP_R
19 HP_L
20 AGND
21 DDC2BC
22 USB_RXN
18 - 32Vdc INPUT POWER FROM
VEHICLE
AMPHENOL CONNECTOR
JD38999/20FA35PN
POWER SUPPLY CONNECTORS
15Vdc OUTPUT POWER TO
DOCK
AMPHENOL CONNECTOR
JD38999/20FA35SN
J5 PIN # J5 SIGNAL
1 PWR_IN
2 GND
3 GND
4 GND
5 PWR_IN
6 PWR_IN
J6 PIN # J6 SIGNAL
1 PWR_OUT
2 GND
3 GND
4 GND
5 PWR_OUT
6 PWR_OUT
NOTES:
1. It is recommended to install a
32V - 10Amp
in-line fuse connected as close to the battery
or power source as possible.
2. The estimated power draw on the 28Vdc
vehicle supply is 3 Amps.
3. MIL STD 461F was achieved by using
completely shielded cables. Cables
containing USB signals must not exceed 5
meters in length.
Connector Data cables are not supplied with the docking station
