DOOR COVER INSTALLATION (Continued)

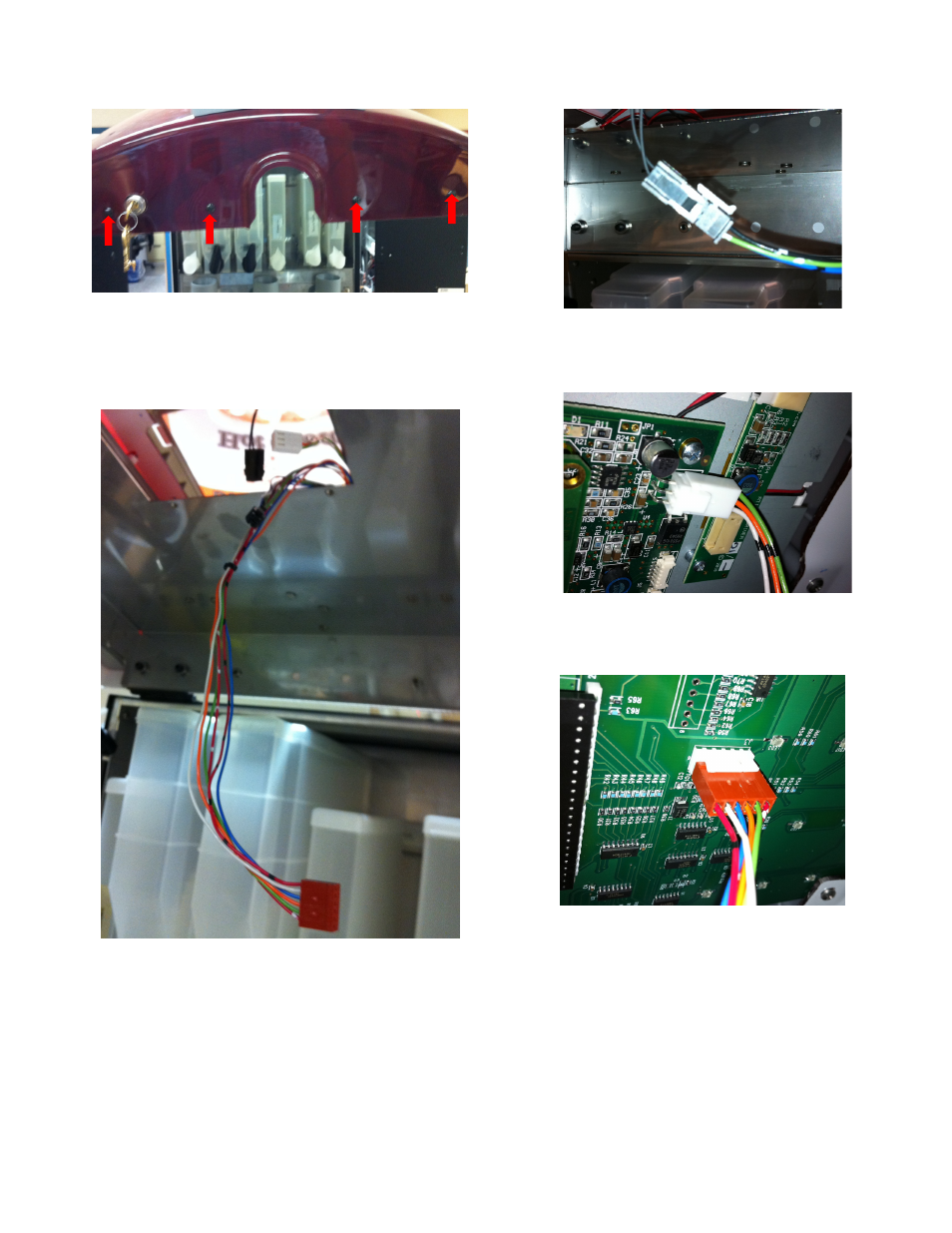

4. With door in raised position, remove four screws
and remove inner access panel. Pull door inter-
connect wiring through access hole.
5. Connect black four pin connectors. Connectors
are keyed, and latch must engage hook.
6. Connect three pin connector to rear of the dis-
play.
7. Connect six pin connector to the rear of lower
circuit board.
8. Replace inner access panel and screws removed
in step 4.
