4

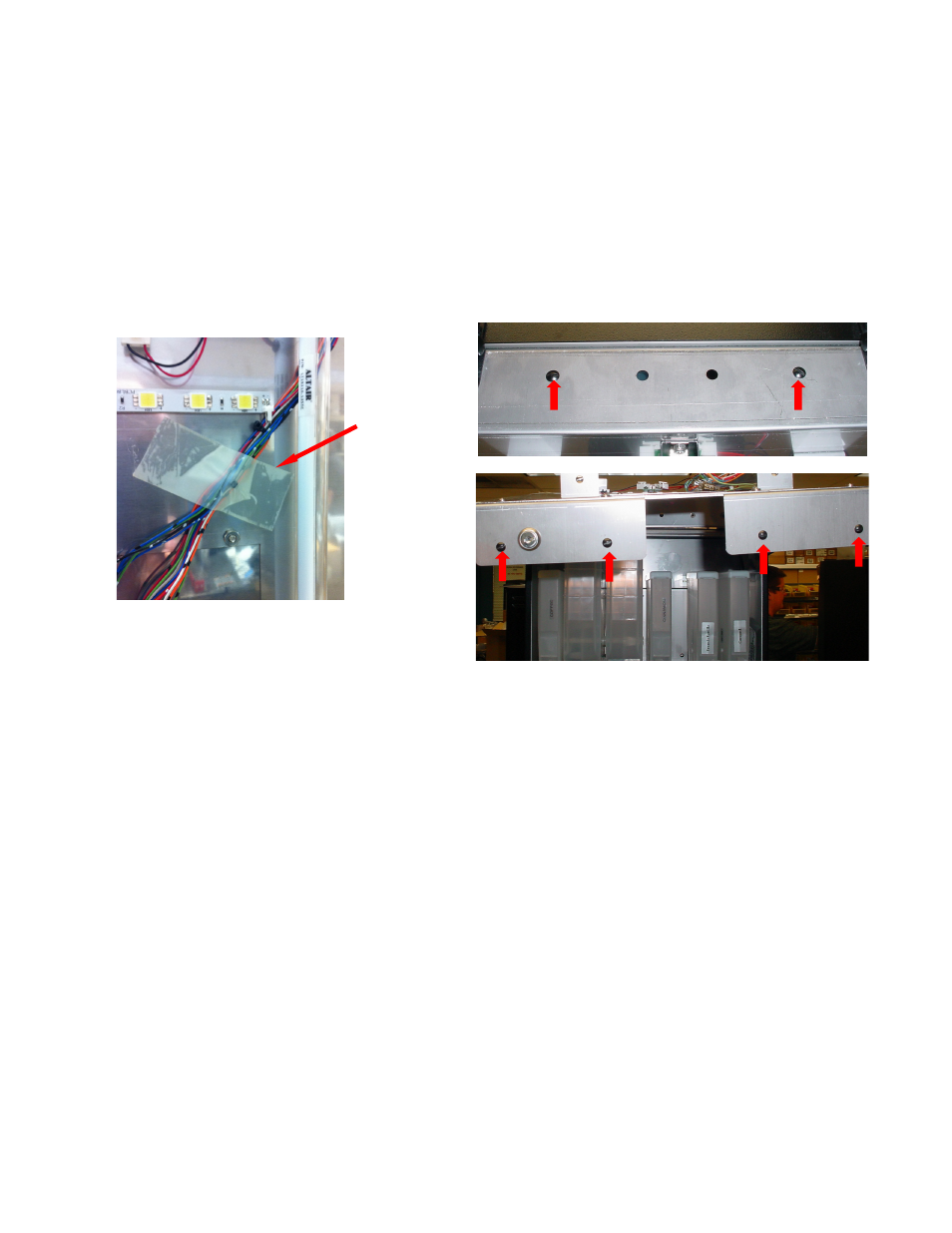

INITIAL SET-UP
1. Apply the four non-skid pads from the parts box to the bottom of the legs.
2. Remove the drip tray assembly, drip tray bracket, and splash panel assembly from the parts box.
3. Place a set of key holes in the drip tray bracket over the lower two screws in the panel below the hopper ac-
cess door; push down gently and tighten screws.
4. Place the set of keyholes in the splash panel over the upper two screws and position so the screws are be-
tween the holes.
DOOR COVER INSTALLATION
1. Remove tape holding wiring harness to door in-
ner panel.
2. Remove six 8-32 black truss head screws from
top and bottom of door inner panel, set aside and
save.
3. Remove door cover from box in packaging, and
carefully slip over inner metal door. Fasten door
cover with six screws removed in step 2, four in
the bottom, two in the top.
Remove
45304.1 090611
