17
B-CONTROL FADER BCF2000/B-CONTROL ROTARY BCR2000
can also be set (release dynamic). Therefore, you can limit the
modulation range (FX depth) using After Touch.
MMC:
MIDI Machine Control data is only assignable to button
elements.
Encoder 4 (Value 1) sets “Locate Time” hour and minute values,
while encoder 5 (Value 2) sets seconds and frames. The Locate
Position is always sent before the MMC command. We therefore
have the following logic-switching sequence:
If the “Locate” parameter has been selected, the sequencer or
hard drive recorder always jumps to the set position. If “Play” has
been selected as the parameter (for a button), the sequencer
always starts from the set locator point as soon as the button is
pressed. “Rewind” always begins at the chosen locator point.
Select the frame rate with encoder 6: 24, 25, 30 (non-drop), 30d
(drop frame) or “off” (in this case only the MMC message is sent,
without any information of the locate position).
GS/XG:
Encoder 3 directly selects the most important “Main Control”
parameters. The display indicates them as a (shortened) text
(table 4.2). In this case, these are CCs or NRPNs (no SysEx data).

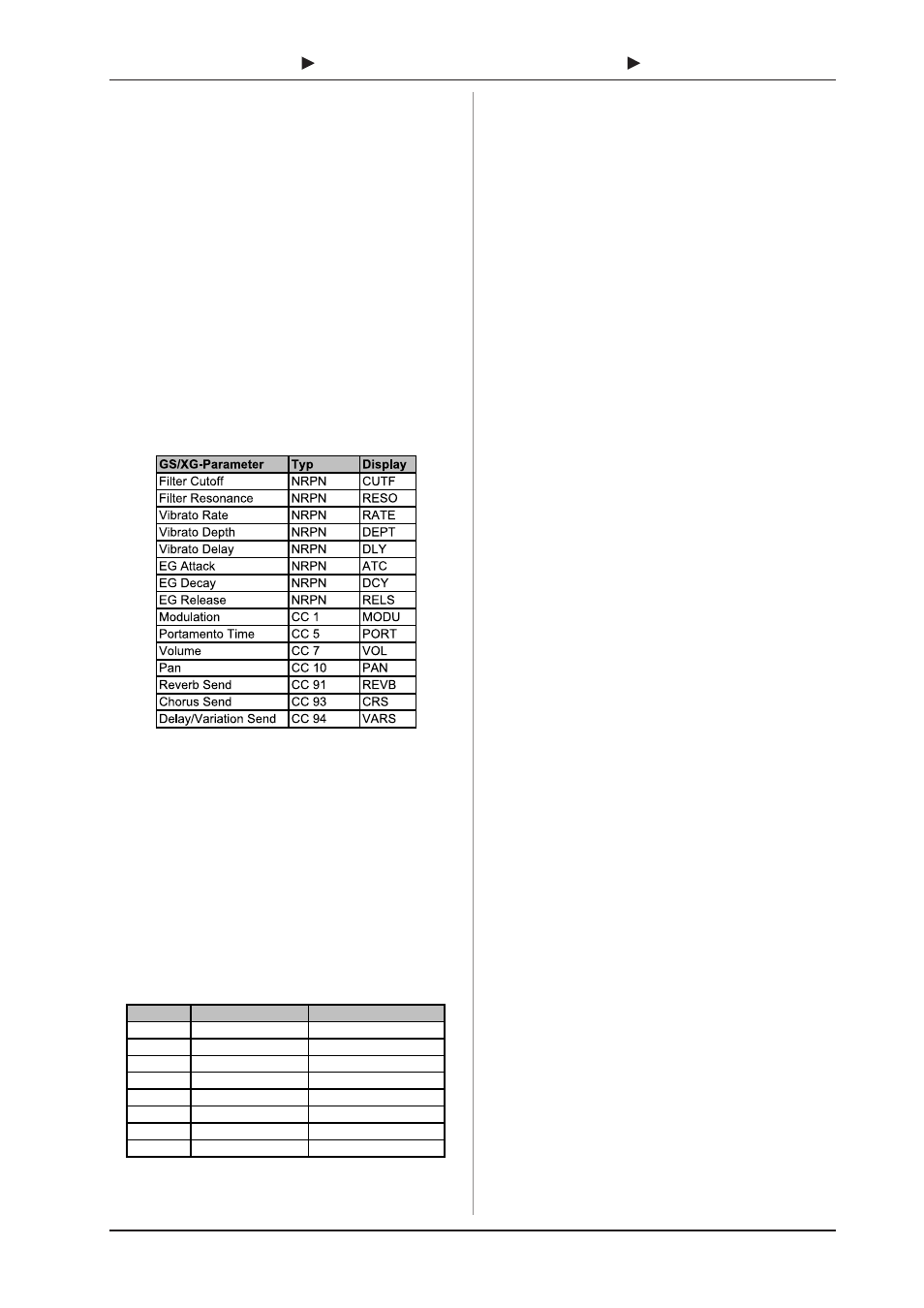

Table 4.3: GS/XG Parameter Main Controls
Encoders 4 and 5 let you confine or invert each controllers’
value range.
4.5 Settings in the global setup menu
Settings that have an effect on all presets are made in the global
setup menu.
s
Keep the EDIT key pressed and at the same time press the
STORE key.
s You are now in the global setup menu, and can let go of
both keys.
s Now, turn the push encoders 1 to 8 to get the desired setting.
This is how the push encoders are allocated:
(QFRGHU )XQFWLRQ 6HOHFW
1 Operating Mode U-1 ... U-4, S-1 ... S-4
2 Global RX Channel Off, 1 ... 16
3 Footswitch Auto/Normal/Inverted
4 Start-Preset 1 ... 32, Last
5 Device ID 1 ... 16
6 SysEx Dump Single/All
7 - -
8 MIDI Data Interval (ms)
Table 4.4: Push encoder allocation in global setup menu
s To exit the global setup menu, press EXIT.
4. OPERATION
+
The settings in the global setup menu take effect
immediately and do not have to be separately stored.
Operating Mode:
The operating modes are described in chapter 4.1. You can
select USB modes U-1 to U-4 and stand-alone modes S-1 to S-4.
Global RX Channel:
The B-CONTROL receives program change commands on this
channel.
Footswitch type:
Because there are different kinds of footswitches (depending
on their switching behavior), the polarity of the footswitch connector
can be set (normal/inverted), or it can be automatically detected
during power startup (auto recognition).
Start Preset Number:
Each of the 32 presets can be selected as the startup preset.
Additionally, with the “Last” function, at startup you have the option
to always load the preset that was used last.
Device ID Number:
You should change the ID number settings only if you work
with several BCF2000s or BCR2000s at the same time, and
problems with recognizing the correct device start occurring during
a SysEx Dump procedure.
+
Please keep in mind that SysEx Dumps can only be
received at the device number to which they were sent!
SysEx Dump Select:
Turning push encoder 6 lets you select between the current
preset (single) or the entire memory contents of the 32 presets
(all) should be sent as a SysEx dump. One press on encoder 6
triggers the dump.
To receive a SysEx dump, you don’t have to change any settings
on your equipment. If you send a single preset to the
B-CONTROL, the data is written to a temporary memory; to be
stored permanently, the data has to be stored on a storage slot of
your choice (preset store function).
+
WARNING: If you send an “ALL-Dump” to the
B-CONTROL, the entire memory contents are directly
overwritten! No request to confirm will be made, and
the memory has no redundant safety function!
s To cancel a SysEx dump, press the EXIT key.
MIDI Data Interval:
This is where you adjust the data transmission rate. This setting
only has an effect on MIDI data packs such as SysEx dumps and
not on controlling of MIDI commands (they are carried out in real
time anyway). The transmission rate is adjustable in milliseconds.
4.6 Additional functions
Temporary “Local Off”:
“Local Off” means that when you move a control element on
the B-CONTROL, no MIDI data is transmitted. If the position of a
control element deviates from the current value in the software,
you can readjust its position until the correct position is found by
using this function. After that, the control can be moved again
without creating an audible value deviation.
Deviations between the position of a control element and the
current parameter value can occur if no parameter feedback is
being sent while a value is being changed in the software (e.g.
mixer automation).
s
Press the EXIT key and keep it pressed.
s Move the desired control element until you get the correct
value.
s Let go of the EXIT key. The control element can now be
moved again.
