Gold Cello Cable Kit
MAN-G-CEL-CBLKIT (Ver. 1.101)
www.elmomc.com
13
Chapter 6: VL+ Auxiliary Supply (CBL-CEL24)
The VL+ auxiliary supply is a two single twisted-pair 24-AWG double-shielded cable. It is
connected using an Ending ferrule. The part number (P/N) of this cable is CBL-CEL24.
The cable is open on the second side so that it can be connected to the power supply.
The general pinout of the VL+ auxiliary supply is as follows:
Pin
No. Signal Color Twisted &
Shielded Wire
1 VL+ Red
Pair
2 PR Black

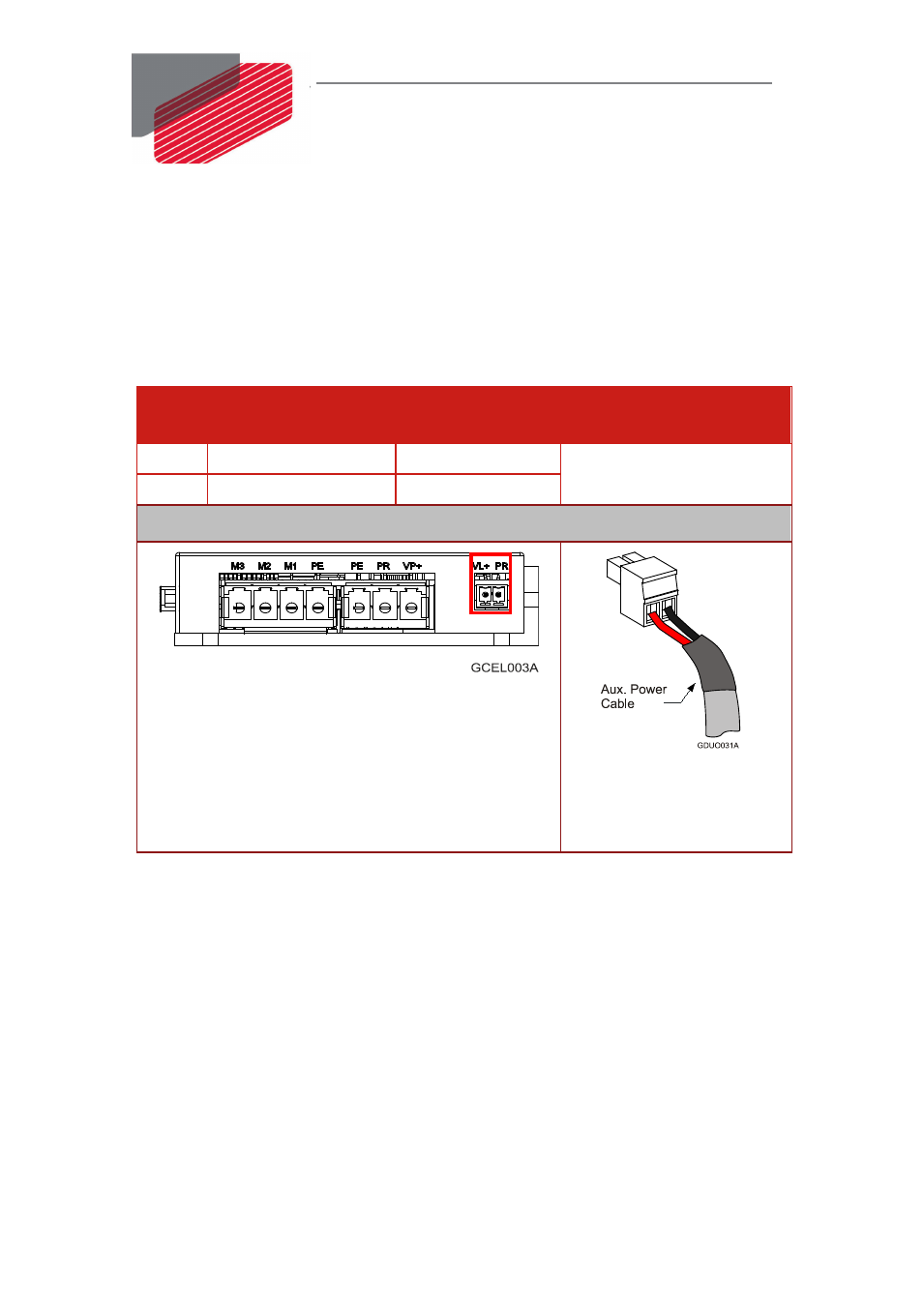

Pin Positions
2-Pin Phoenix 3.81 mm Pitch
2-Pin Phoenix Plug-in
Connector
Table 1: Auxiliary Power Connector
