Gold DC Whistle Installation Guide
MAN-G-DCWHIIG-EC (Ver. 1.700)
||STO (Safe Torque Off) (J11)| www.elmomc.com
32
Table of Contents
6.5. STO (Safe Torque Off) (J11)
See Chapter 9 in the in the MAN-G-Panel Mounted Drives Hardware manual for full details.
Pin (J11) Signal Function
1 STO1 STO1 input (default 24 V)
2 STO2 STO2 input (default 24 V)
3 STO_RET STO signal return

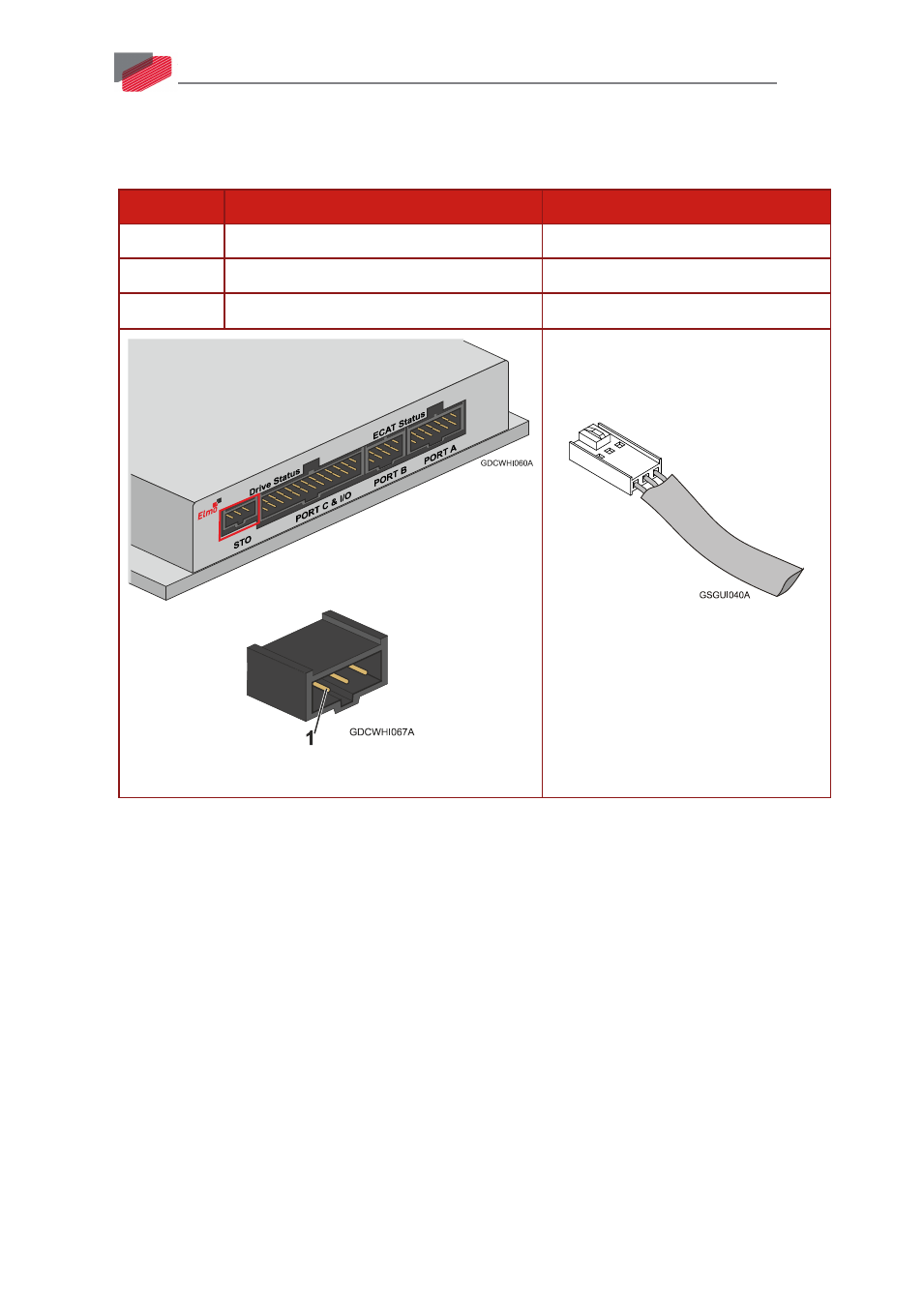

3-Pin 2.54 mm Pitch Molex
3-Pin Molex Plug
This cable is included in the cable kit
described in Section 3.1.1.
Table 6: STO Input – Pin Assignments
