EITHER 12 OR 13 WILL BE SUPPLIED - BOXED SEPARATELY.
Bed Assembly continued
Stage
6
Stage
6a
BED SLAT FIXING
UPGRADE SPRUNG SLAT SYSTEM
G x6
J x6
K x6
12
12
12
13
Q
P
Q
13
13
13
G x4
J x4
K x4
O x8

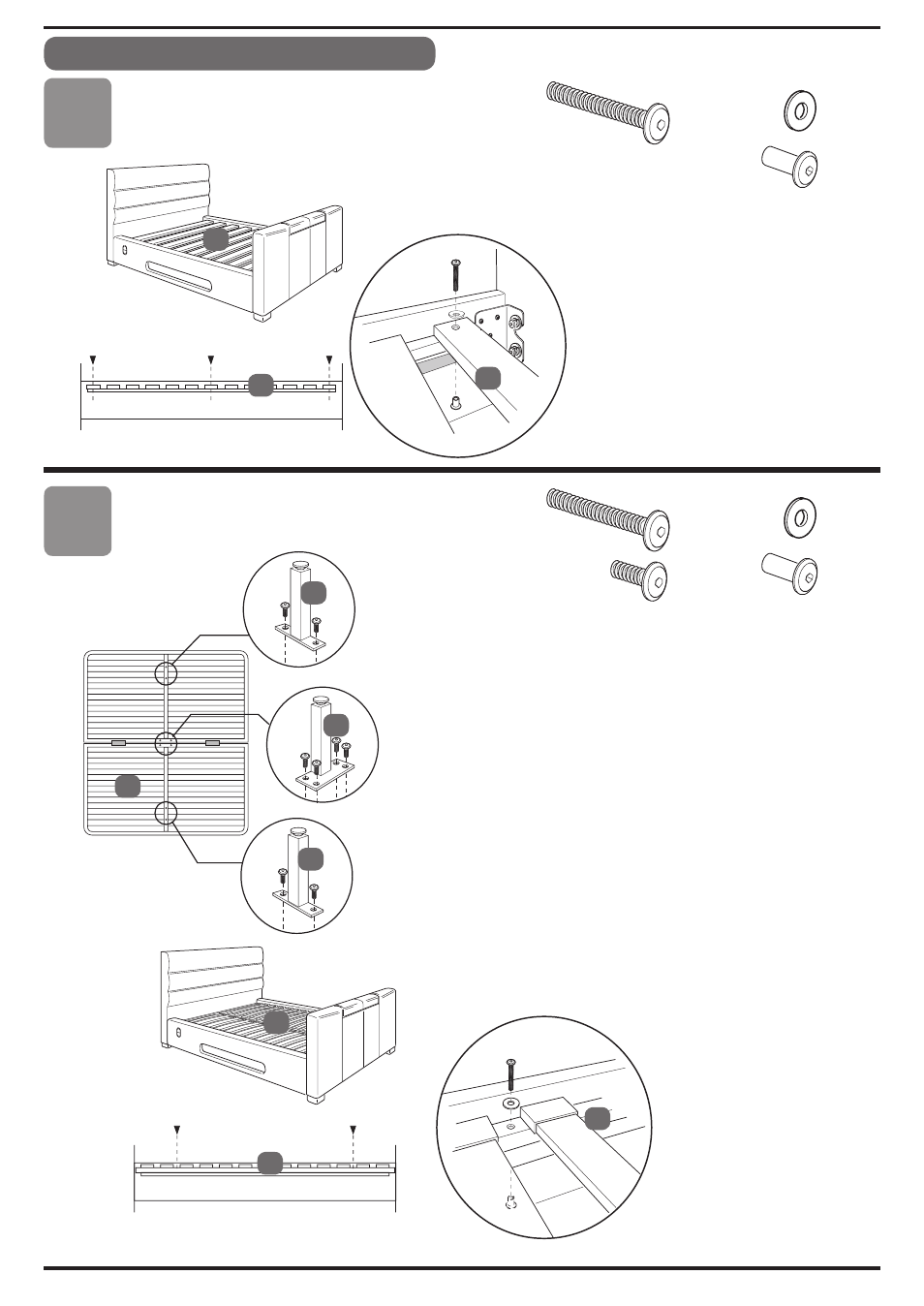

Lay the set of slats (12) onto the metal
slat support rails, on each side of the bed.
Align the first and last slat with the
end of the rails, and secure in place
using the bolts (K), washers (G) and
sleeve nuts (J). Fully tighten using
the allen key (N).
Once ends are secure, fix two bolt sets
Open the metal slat frame and lay face down on the working
surface.
Fit the support legs (P & Q) to the positions shown, securing
with the bolts (O). Fully tighten using the allen key (N).
Carefully turn the slat frame over, and position onto the metal slat
support rails. Align the frame with the fixing holes at each
end of the rail
and secure using just 4 sets of the bolts (K),
washers (G) and sleeve nuts (J). Fully tighten using the allen key (N).
Finally, please ensure that all bolts are fully tightened
before the bed is used.
Page 6 of 7
to centre slat, so all 6 sets are used.
