Page 5 of 6, Bed assembly – Dreams Vienna Ottoman Bedstead User Manual
Page 5
Bed Assembly
Stage
6
Page 5 of 6
7
CROSS BAR
NOTE: IT IS VERY IMPORTANT
THAT THIS CROSS BAR
IS FITTED.

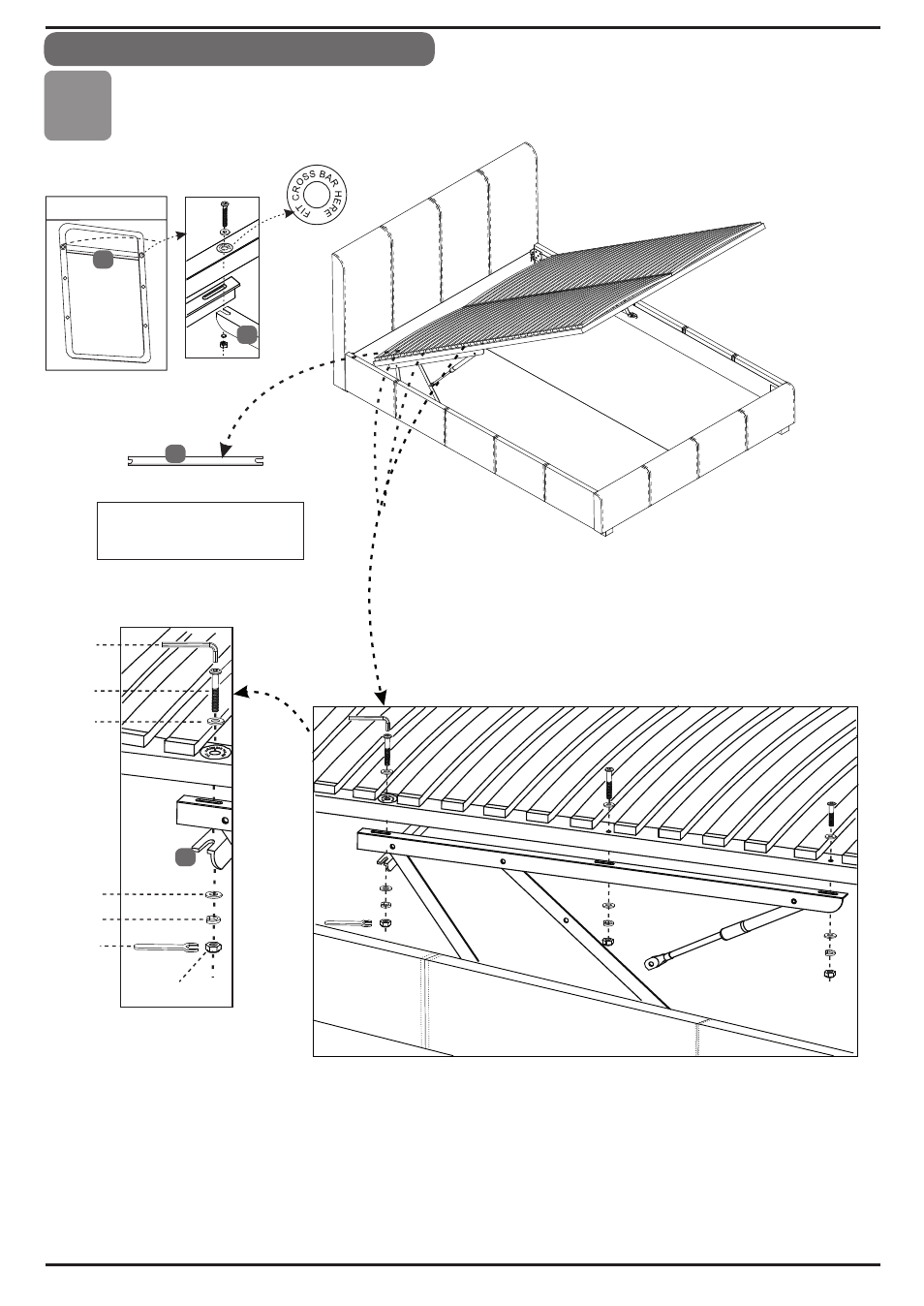

Fix the cross bar (7) in the first hole of lift up mechanism. using fixings (E), (C), (B) & (F).
Then tighten the bolt by using allen key and spanner (D)
& (H).
REMINDER: Do not fully tighten all the bolts before confirming the metal frame is in correct position.
Make sure the 3 SETS of bolts are connected as shown.
Once everything has been assembled. Tighten all the bolts.
LABEL
7
HEADBOARD
D
E
C
F
B
C
H
7
7
