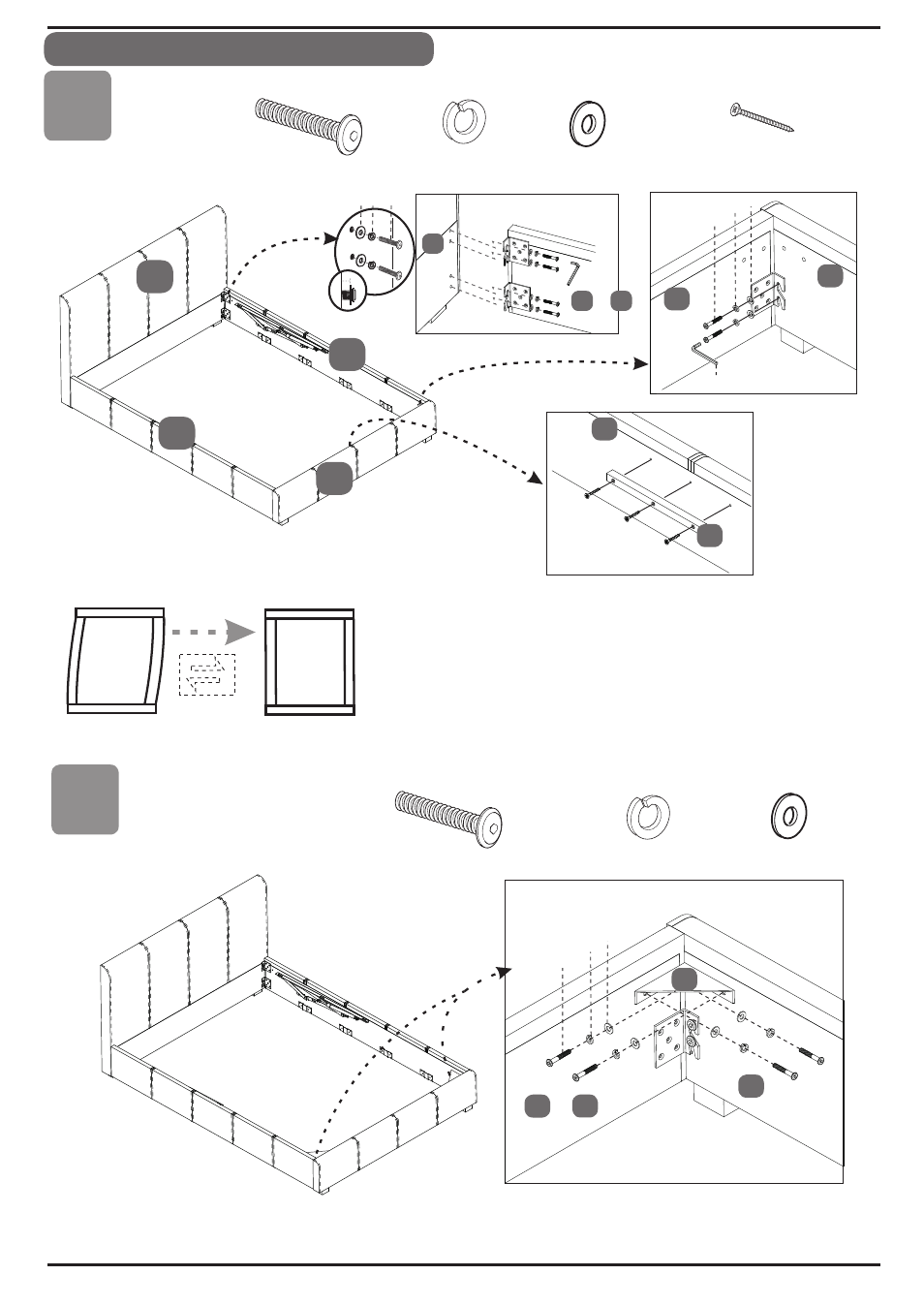

MAKE CERTAIN THE BED IS SQUARE AS SHOWN.
Bolt the angle brackets (9) into threaded inserts in the corner of the footboard (2) and side rails (3 & 4).
Stage
2
A C x8 x8
K
2
3
A
B
C
B x8
4 &
Fit the bolts (A), spring washers (B), and washers (C) to the holes in the
headboard (1) and footboard (2). Note: Do not fully locate the
bolts, but leave 10mm protruding.
Fit the side rails (3 & 4) to the headboard and footboards locating the
brackets over the bolt heads - make sure they are placed as shown.
Fix the wooden rail (9) to footboard (2) using screws (I).
Note: Before tightening any bolts 100%
Bed Assembly
Stage
1
I
x12 B x12 I x3
Page 3 of 6
A C B
10mm
1
2
3
4
9
I
I
2
A C x12
3
2
B
A
C
D
3
1
4 &
Once all four corners are located check the bed is square, then fully tighten the bolts using the allen key (D).
