Connecting to a Television
Caution: Make sure to check the voltage specification of the wall outlet is
the same rating with the receiver. To prevent the risk of electric shock, do
not open the cover or the back of the receiver.
Note: When connecting the receiver to other equipment, e.g., TV, VCR and
amplifier, make sure to refer to relevant user manual for instruction. Also, make
sure you disconnect all the equipments from the mains supply before the
connection.

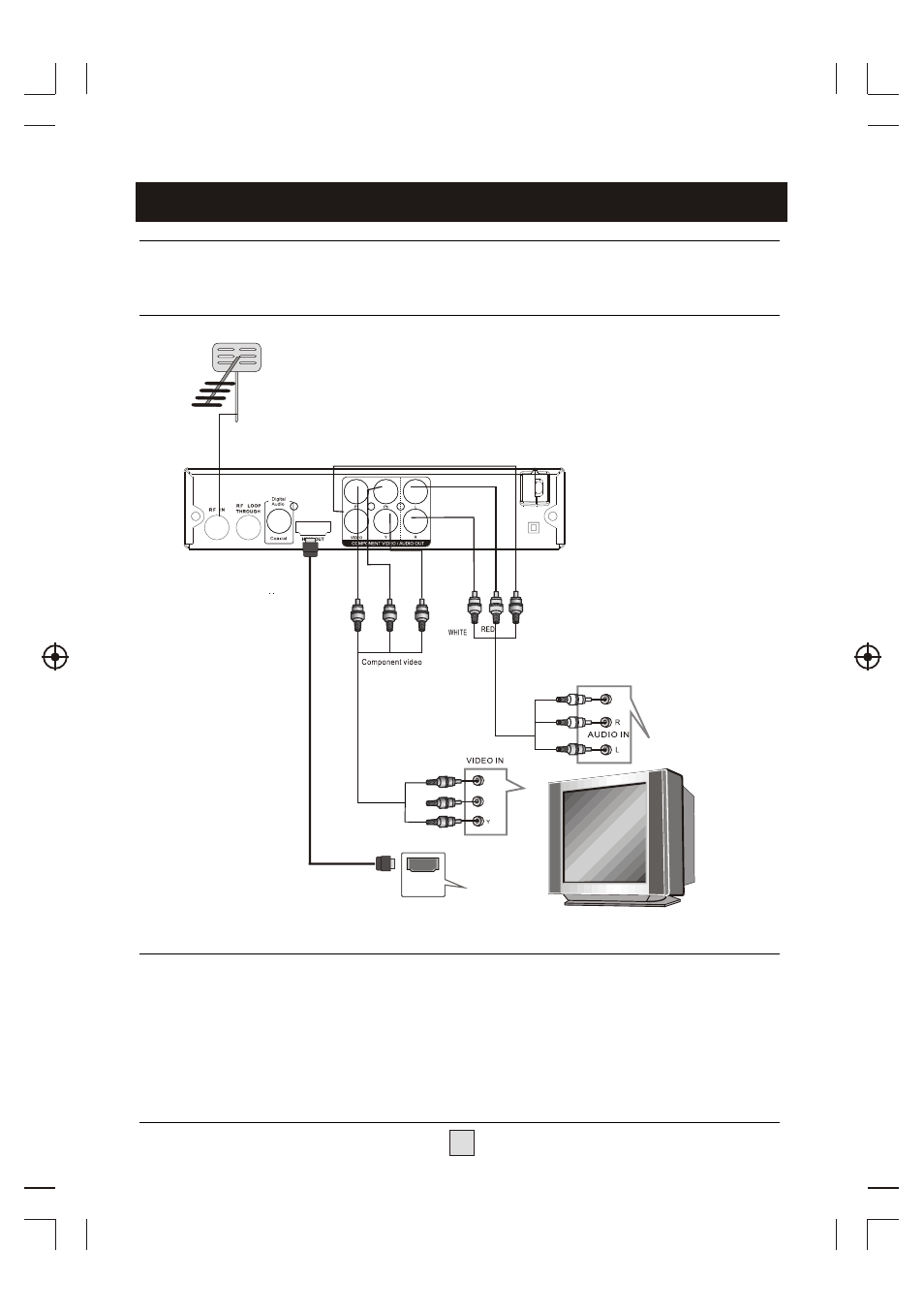

Composite Audio Connection.
For a basic connection from your Set Top Box to the television, use the
Composite connection outlined below. For a higher quality connection, use the
Component Video connection outlined with the
For the highest quality connection use a direct HDMI connection.
9
TV Aerial
Cr
Cb
Composite
HDMI
YELLOW
VIDEO IN
(Audio)
(Video)
