Page 41: Assembl y
ASSEMBLY
5145 01/11
Assembly Section 3-7
© 2011 Alamo Group Inc.
ASSEMBL
Y

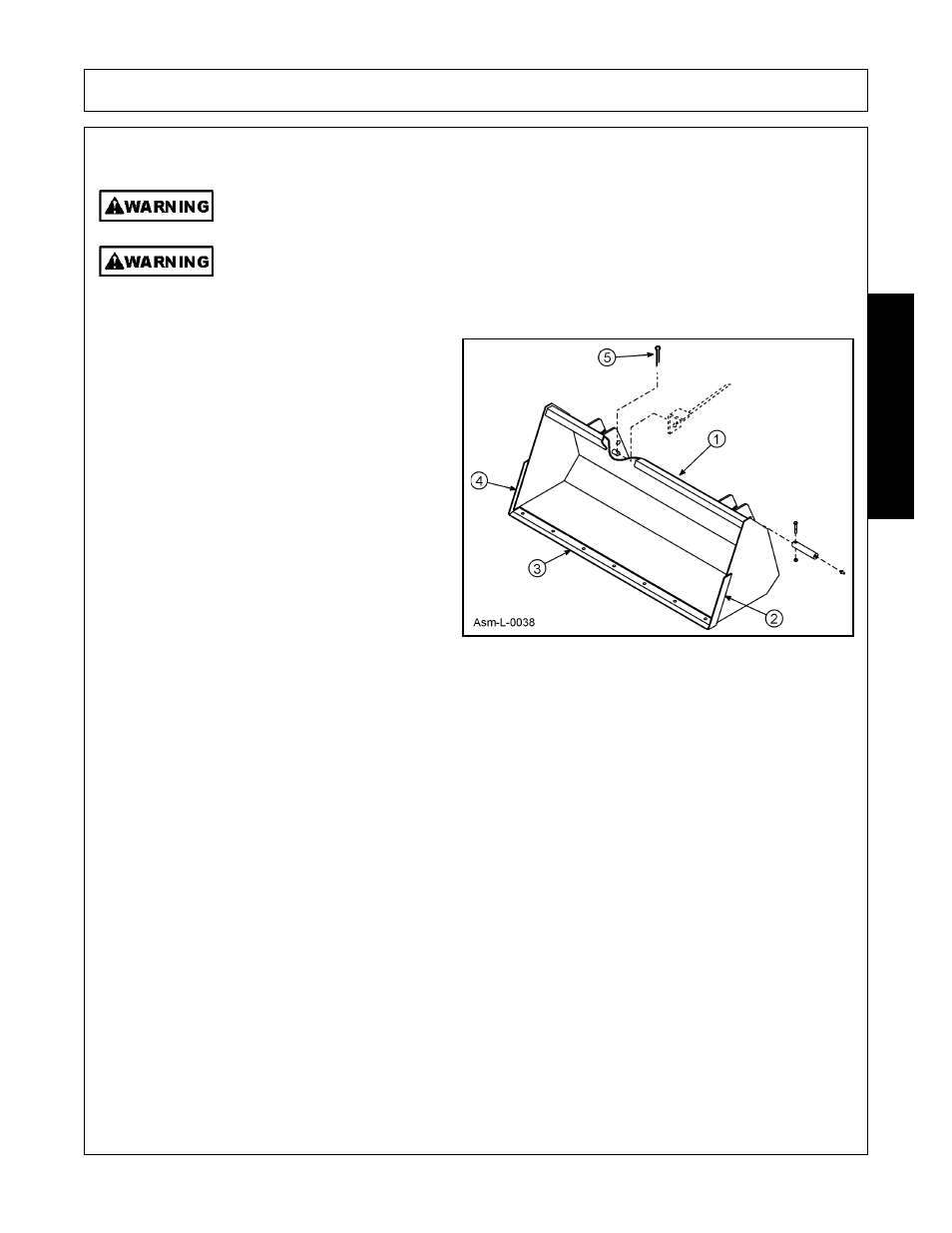

Attaching Pin on Bucket
Always wear safety glasses when removing or installing buckets.
Always use a drift and hammer made of non-sparking material (a shot-filled mallet is
recommended) to install or remove pins. A steel hammer or drift could generate flying metal
fragments and result in injury. Always wear safety glasses when using a hammer to remove
or install pins.
Material buckets can be installed using tools
ordinarily available.
Attach bucket to lift boom frame and bucket
cylinders with four 3/8” cap screws and 3/8” lock
nuts (supplied with loader).
Attach bucket leveling rod (supplied with loader)
through slot in bucket leveling bracket attached to
tilt cylinder and inner ear on right side of bucket with
3/16“x 2” cotter pin (5).
