TECHNICAL SPECIFICATION - DVA S1518N
System Active 2-Amps
Type of amplifier Digital - Class D (DIGIPRO G2 technology)
RMS power 1500W
Musical power 3000W
Frequency response +/-3dB 39 -120Hz
Crossover LF-MF (Low-Mid) 75 - 120Hz (5Hz steps) selectable
Sound pressure (SPL) 138dB peak
Component parts 2 woofer 18" RCF - 4" coil
Input sensitivity nominal 0dBu
Input impendence Balanced 20Kohm
Unbalanced 10Kohm
Power supply Full range 100Vac -240Vac, 50-60Hz con PFC
Inrush Current
16,1 A
DSP Analog Device 56 bits
Audio conversion 24 bit / 96kHz S/N=116dB
Volume control Digital
Box material Birch plywood, black painted orange peel
Housing shape Rectangular
Handle 3 x side
Front grille Performed sheet 1.5mm with internal foam
Dimension WxHxD 515x640x720mm
Weight 44Kg (neodymium woofer)
47,5Kg (ceramic woofer)
TECHNICAL SPECIFICATION - DVA S2585N
System Active 2-Amps
Type of amplifier Digital - Class D (DIGIPRO G2 technology)
RMS power 2500W
Musical power 5000W
Frequency response +/-3dB 35 -120Hz
Crossover LF-MF (Low-Mid) 75 - 120Hz (5Hz steps) selectable
Sound pressure (SPL) 140dB peak
Component parts 1 woofer 18" RCF - 4" coil (frontal)
1 woofer 15” RCF - 4” coil (rear)
Input sensitivity nominal 0dBu
Input impendence Balanced 20Kohm
Unbalanced 10Kohm
Power supply Full range 100Vac -240Vac, 50-60Hz con PFC
Inrush Current
28,3A
DSP Analog Device 56 bits
Audio conversion 24 bit / 96kHz S/N=116dB
Volume control Digital
Box material Birch plywood, black painted orange peel
Housing shape Rectangular
Handle 3 x side
Front grille Performed sheet 1.5mm with internal foam
Dimension WxHxD 515x640x1000mm
Weight 65Kg
[ ]
[ ]
EMI CLASSIFICATION
According to the standards EN 55103 this equipment is designed and suitable to operate in E5
Electromagnetic environment.
Ruotare la fase di 180°
Rotate 180° phase
Impostare il delay a 3,5msec
Set delay to 3,5msec
Phase
0°
180°
Delay
0
0.5
1.0
1.5
2.0
2.5 3.0
3.5
4.0
mSec
4.5

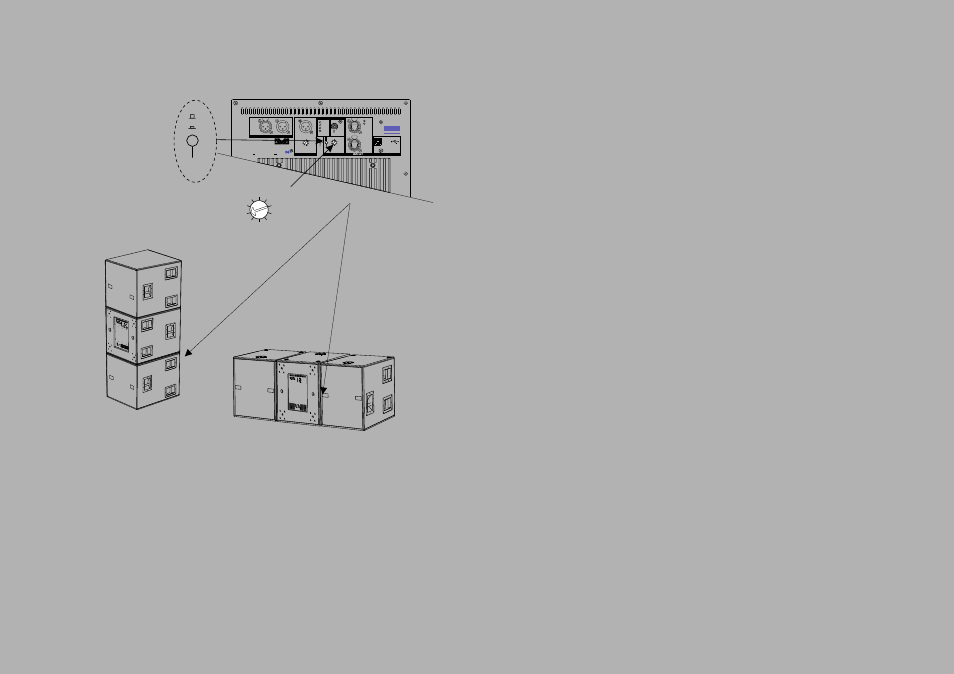

DVA S1518N, being a standard subwoofer, can be configured as cardioid following the
indications reported below using three subwoofers DVA S1518N at the same time.
Input Link Ready
Limiter Signal Mute/Prot Data
Input
Data
Link
Service Data
USB
Remote Preset
Active
Link Active B B d d
TECHNOLOGIES TECHNOLOGIES 0dB
+4dB
Audio Balanced Input/Link
Input Control
SUB Phase/Delay
Input Sens
Status
75 80 85 90 95 100 105 110 115 User/120
Xover Out
Xover Frequency
selection 24dB/oct
0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0
Phase
mSec
DSP Up-grade
Hz 4.5 0°
180°
Delay Digital Vertical Array
NEODYMIUM CERAMIC
S
1 1 5 5 8 8 1 1
Rear
Front
Rear
Front
