Danuser SM40 Hammer - Manual (Page 22)

22
Parts

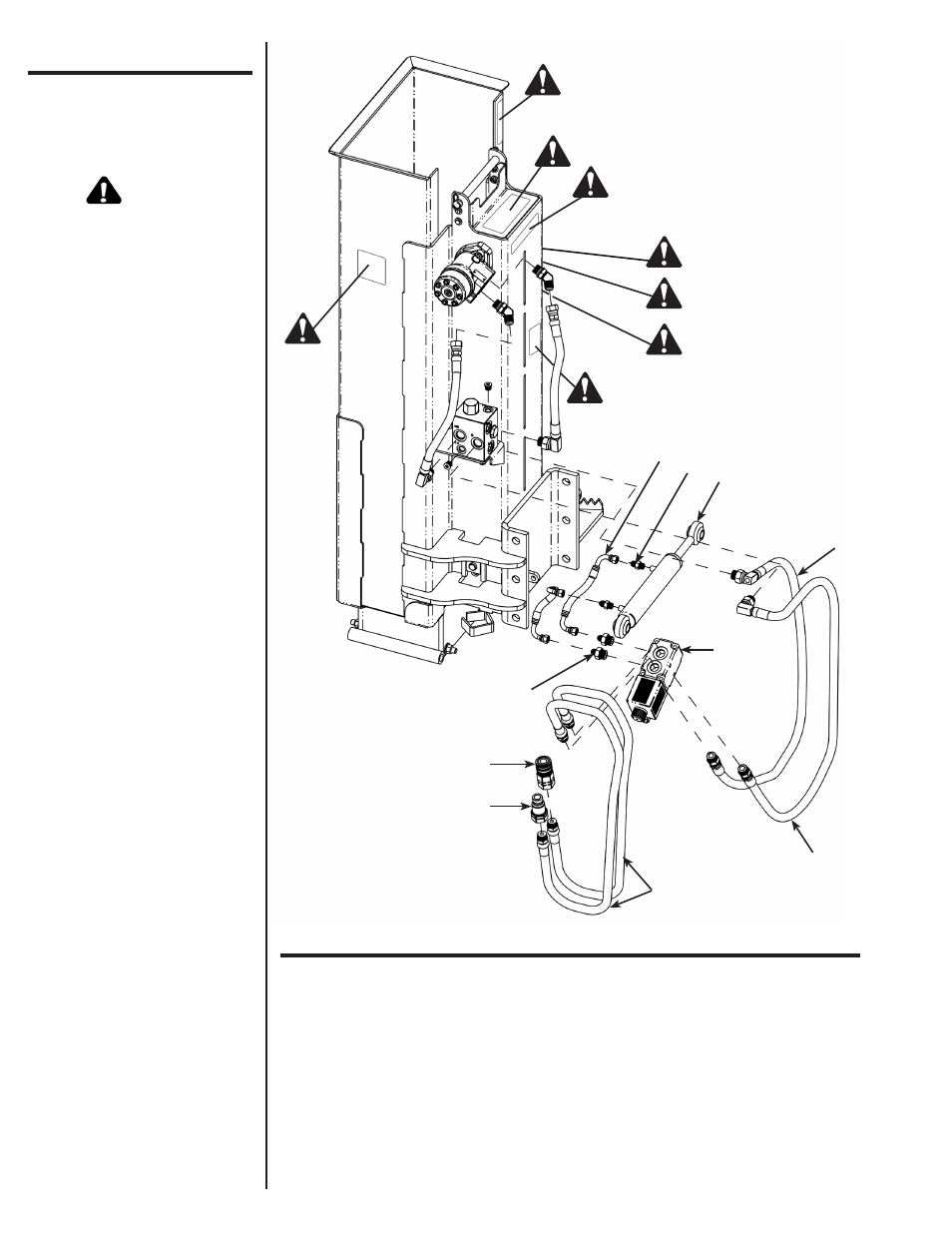

Tilt Hydraulics
REF. NO. PART NO. DESCRIPTION QTY.
1 21164 Diverter-Cylinder Hydraulic Hose 2
2 21154 Restrictor 2
3 21103 Hydraulic Cylinder 1
4 21147 Diverter-Manifold Hydraulic Hose 1
5 21153 #10 O-ring #6 JIC Fitting 2
6 21128 Diverter Valve 1
7 21145 Vehicle-Diverter Hydraulic Hose 2
8 21146 Diverter-Cylinder Hydraulic Hose 1
9 10049 Female Coupler 1
10 10048 Male Coupler 1
1 2
3
4
5
6
7
8
9
10
= Safety Sign
Location
