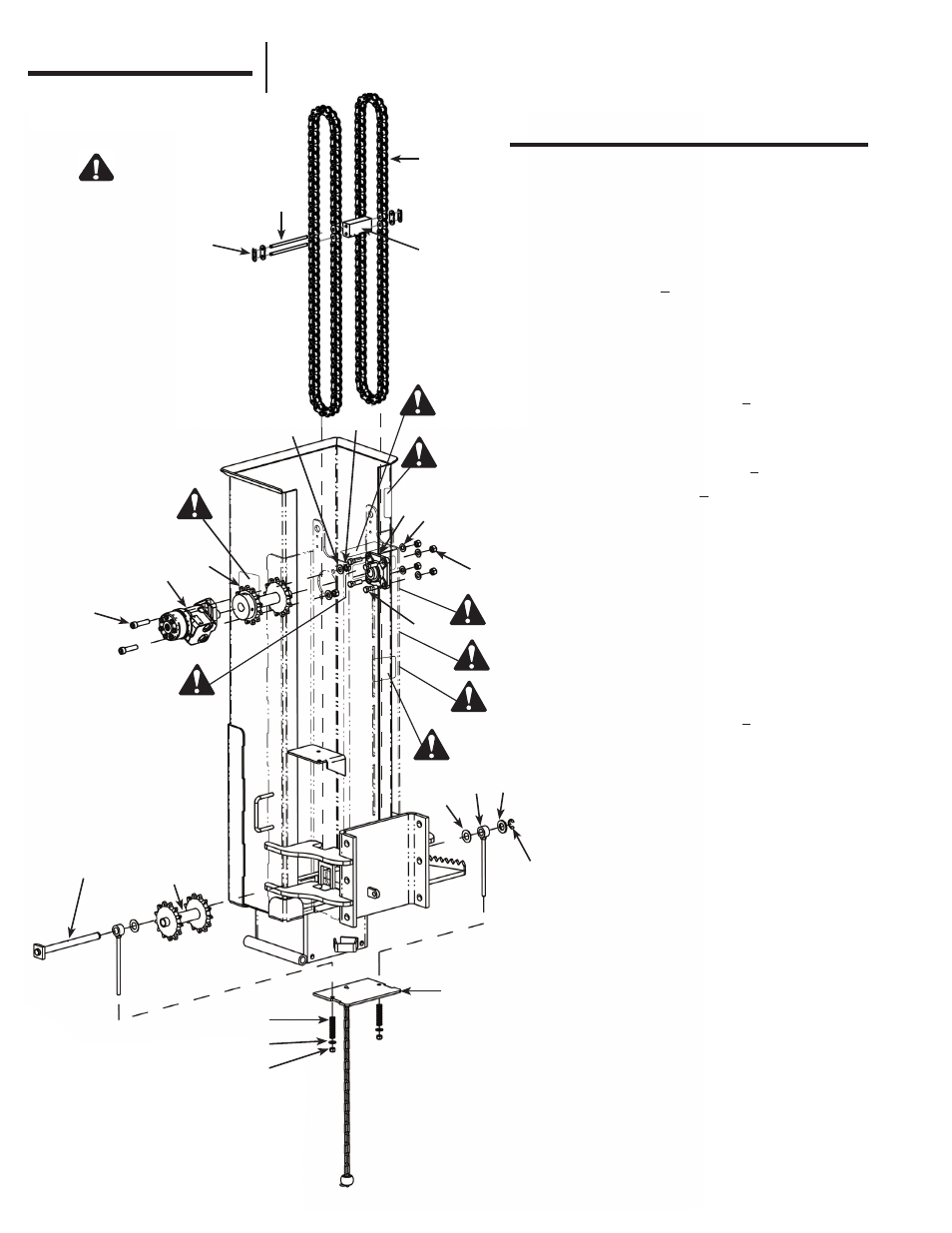

Parts
Drive Assembly
REF.
NO.
PART
NO.
DESCRIPTION
QTY.
1
21119 Connecting Link
2
2
21024 Chain Pin
2
3
21025 Roller Chain #80, 1" Pitch
2
4
21122 Catch Weight
1
5
21126 Socket Head Bolt
(1/2" 13 x 2")
2
6
21113 Hydraulic Motor
1
7
21114 Upper Sprocket Shaft
Assembly
1
8
21156 1/2" Flat Washer
2
9
10125 Toplock Nut (1/2" 13)
2
10
21043 Bearing
1
11
2489 7/16" Flat Washer
4
12
10197 Toplock Nut (7/16" 14)
4
13
21057 Bolt (7/16" 14 x 1-1/2")
4
14
21040 Sprocket Shaft
1
15
21080 Lower Sprocket Shaft
Assembly
1
16
21125 Shim
2
17
21083 Tensioning Rod
2
18
10267 3/4" Flat Washer
1
19
2172 Retaining Ring
1
20
21123 Spring
2
21
2178 3/8" Flat Washer
2
22
10412 Toplock Nut (3/8" 16)
2
23
21110 Cover Assembly
1
= Safety Sign
Location
9
