Regular Service
It is necessary to perform the following steps once per work shift to ensure the
proper function of the Compressed Air Cooler.
!WARNING: System under pressure. Do not attempt to service air
cooler until air power is disconnected, the system has
depressurized, and all components have cooled.
A. EMPTY FAN MOTOR MOISTURE SEPARATOR
Open drain valve by pushing white slide valve in on fan motor moisture separator.
Allow to drain (Figure 10).
NOTE: Monitor water level of moisture separator regularly and keep levels
below baffle.
B. EMPTY BLOWER MOISTURE SEPARATOR
Loosen blower moisture separator drain valve by turning counterclockwise, allow to
drain (Figure 11).
!IMPORTANT: Monitor and drain moisture separators at least once per work
shift to prevent water from freezing inside air cooler or causing corrosion.
Depending on usage and environmental conditions, moisture separators may
need to be drained more often.
3.

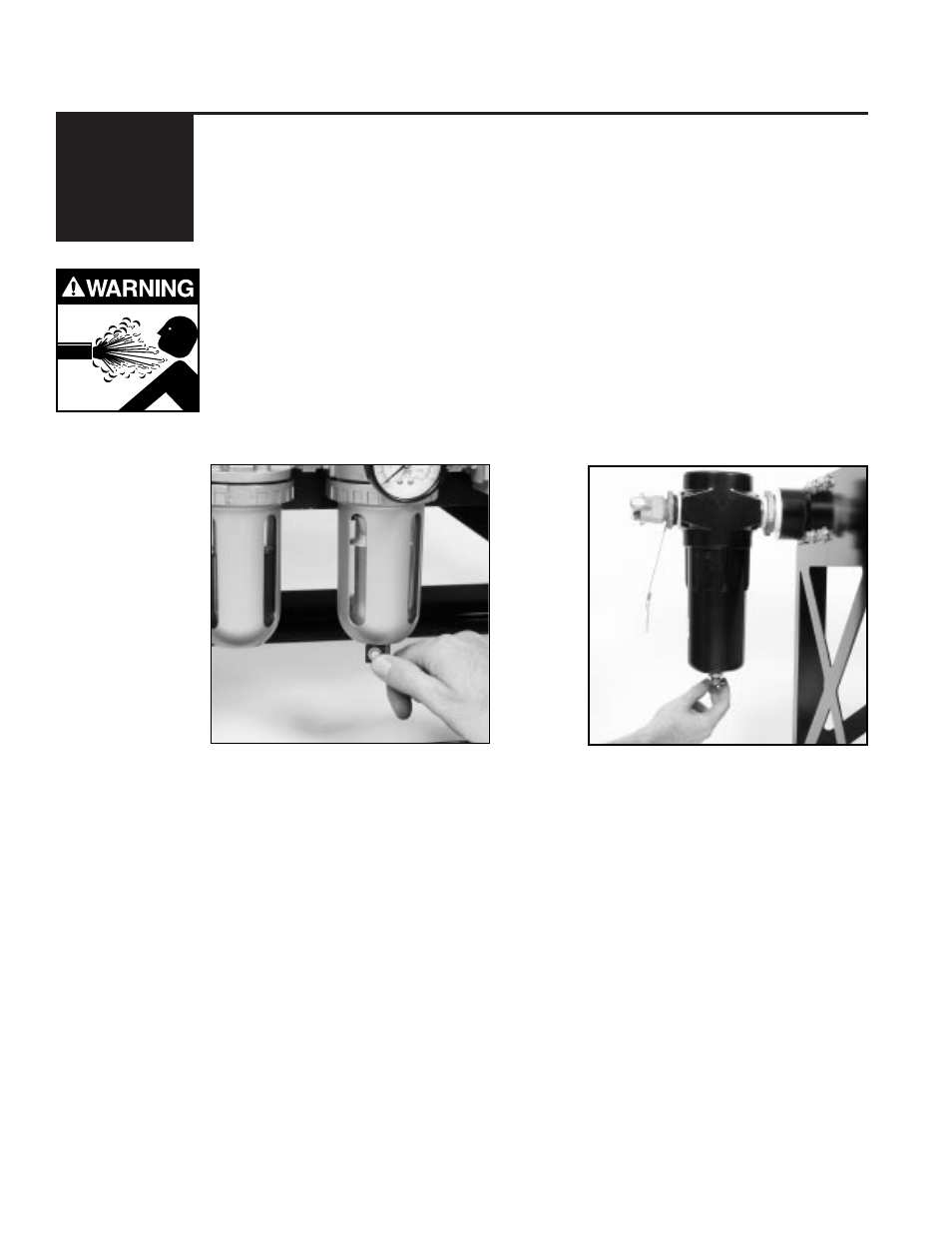

Figure 10. Empty Fan Motor
Moisture Separator
Figure 11. Empty Blower
Moisture Separator
