4

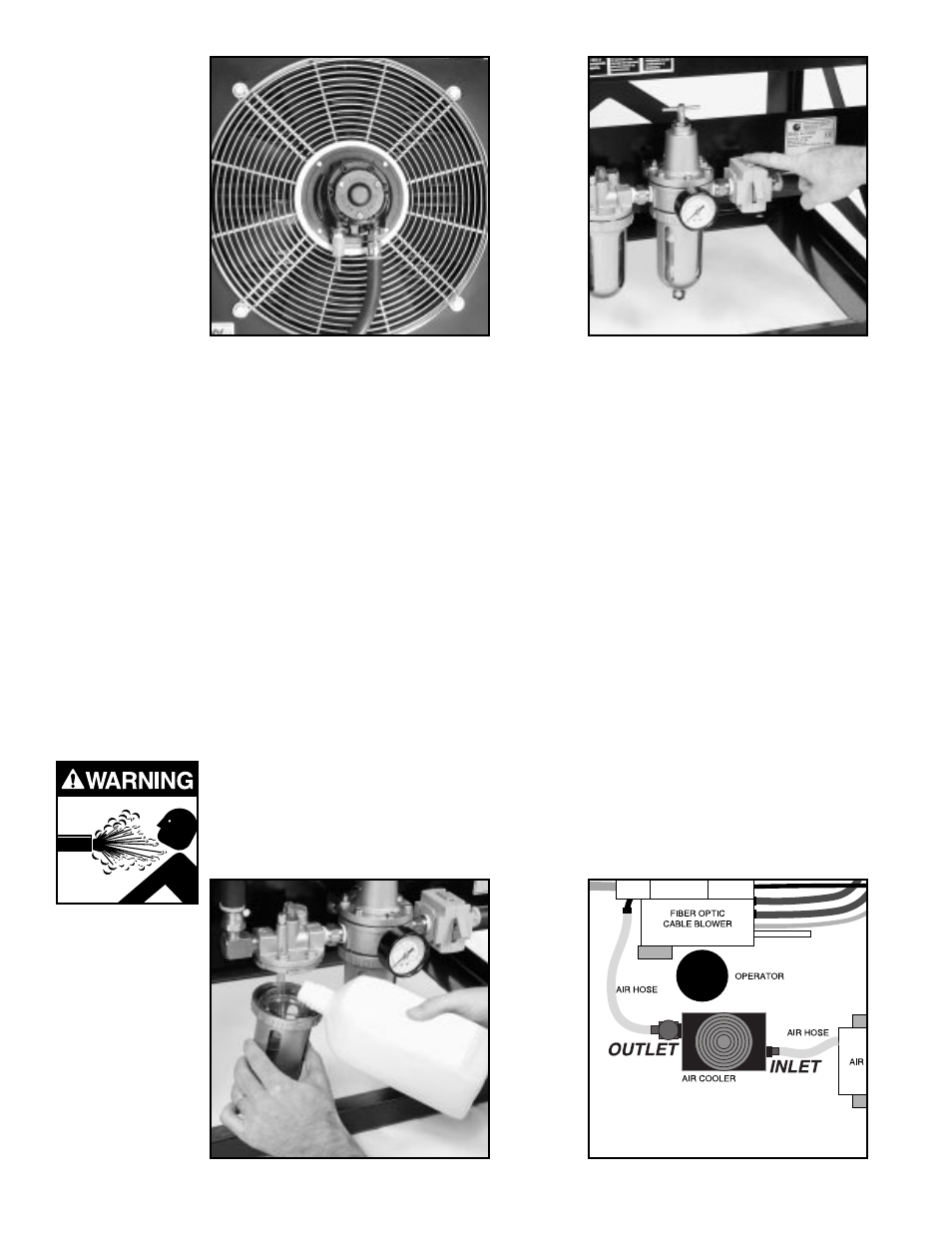

C. CHECK FAN
Check fan blade before set-up to make sure it is free of obstruction (Figure 3). Blade
should rotate counterclockwise when Compressed Air Cooler is running.
!CAUTION: Never lean over or look down into the cooling fan when
operating the air cooler.
D. ADJUST FAN MOTOR
The air cooler is equipped with an OSHA approved lockout valve. In the closed
position, the valve blocks air to the pneumatic fan motor. A padlock can be placed
on lockout valve to prevent unauthorized usage. Push lockout slide down to unlock
(Figure 4).
E. ADD LUBRICANT FOR FAN MOTOR
Remove lubricator shatter guard by pushing it up and turning clockwise. Remove
reservoir. Fill lubricator reservoir with SAE 10 weight detergent oil. Replace reservoir
and shatter guard (Figure 5).
F. CONNECT HOSES
Secure compressor hose to inlet pipe on Compressed Air Cooler. Secure Fiber Optic
Cable Blower hose to outlet pipe on Compressed Air Cooler (Figure 6).
!WARNING: System under pressure. Use safety clips on all
pneumatic hose connections. Always wear personal protective
equipment.
Figure 4. Open Lockout Valve
Figure 5. Add Lubricant and
Replace Reservoir
Figure 6. Connect Hoses
Figure 3. Blade free of
obstruction
