Condux Deluxe Y-Block - Manual (Page 6)

6
5. Place innerduct in the Innerduct Seal and Innerduct Clamp on both the enter
and exit side of the Y-Block. Note placement up to ridge on Innerduct Seal
(Figure 6). Make sure lay static cable in the Y-Branch of the Y-Block as seen
in Figure 6.
6. Clamp Innerduct in place (See Figure 7).
7. Choose correct Cable Seal and install
around cable (Figure 8) and push into the
provided slot, split side down (Figure 9).
8. Hand push cable to be installed from the
blower into the Y-Block (Figure 10).

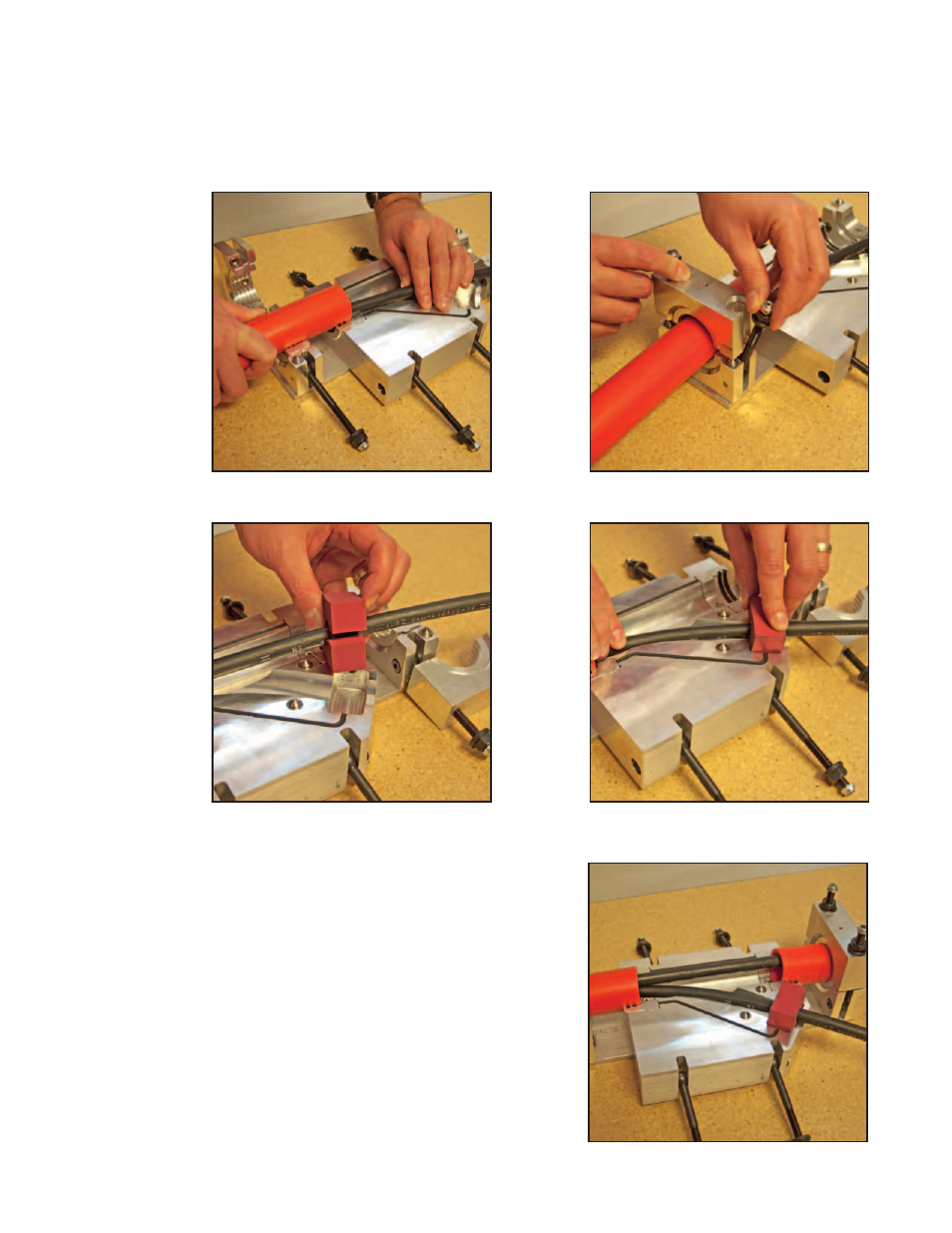

figure 6. Insert Duct
figure 8. Install Cable Seal
figure 10. hand Push Cable
into Y-Block
figure 7. Clamp Innerduct
figure 9. Install Cable Seal in Slot
