Condux Deluxe Y-Block - Manual (Page 5)

5
Set Up the Y-Block
1. Loosen the 8 nuts on the Y-Block assembly (Figure 1). Remove Innerduct
Clamp (Figure 2) and Air Block Cover (Figure 3).
2. Select the correct Condux Duct
Components according to the innerduct
size. Refer to the Duct Selection Chart
on Page 10.
3. Choose the correct Innerduct Seal and
install both halves securely. Use
the provided
3 ⁄
32
-inch hex wrench
(Figure 4).
4. Choose the correct Conduit Clamp and
install both halves (same color as the
conduit seal). Use the provided
3 ⁄
32
-inch hex wrench (Figure 5).
2.

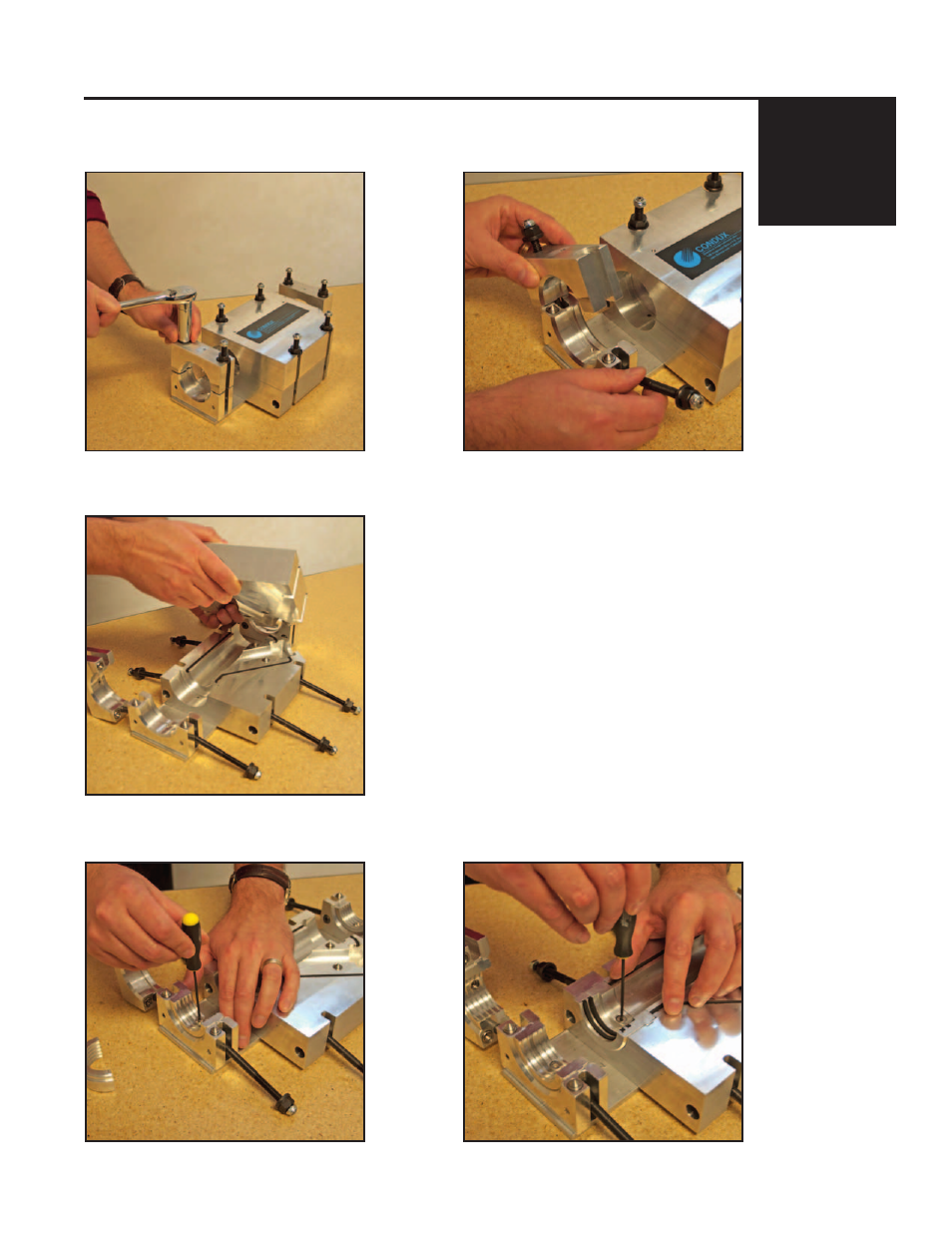

figure 1. Loosen Nuts
figure 4. Insert Duct Clamps
figure 3. Remove Air Block Cover
figure 2. Remove Duct Clamps
figure 5. Insert Duct Seals
