5
Pressure Test Kit Operating
Instructions
The duct system must be able to withstand and hold 150 psi (10.3 bar) for the Fiber Optic
Cable Blower to work properly. This Pressure Test Kit will allow the innerduct to be
pressure tested before setting up the complete Fiber Optic Cable Blower.
1. Select the correct Seal-Off Head, Innerduct Pulling Eye and Pulling Grip according
to the following:
1.00" SDR 11 & 13.5 Innerduct 1.25" SDR 11 & 13.5 Innerduct
08034315 Seal-Off Head 08034316 Seal-Off Head
08913320 Innerduct Pulling Eye 08913323 Innerduct Pulling Eye
08643137 Pulling Grip 08643149 Pulling Grip
1.50" SDR 11 & 13.5 Innerduct 2.00" SDR 11 & 13.5 Innerduct
08034317 Seal-Off Head 08034318 Seal-Off Head
08913327 Innerduct Pulling Eye 08913328 Innerduct Pulling Eye
08643149 Pulling Grip 08643155 Pulling Grip
2. Securely screw the Seal-Off Head into one end of the innerduct to be pressure tested.
3. Connect the Control Valve Assembly to the Seal-Off Head using the quick couplers.
4. Close the Air Control Valve on the Control Valve Assembly.
5. Connect the air compressor to the Control Valve Assembly with a pneumatic hose.
!WARNING: Always use safety clips on pneumatic hose
couplings. Severe personal injury could result.
6. Securely screw the Innerduct Pulling Eye into the opposite end of the innerduct to be
pressure tested. This innerduct pulling eye will act as a plug in the end of the
innerduct.
7. Install the Pulling Grip over the Innerduct Pulling Eye and the end of the innerduct
to be pressure tested.
!WARNING: Pulling Grip must be installed over Innerduct
Pulling Eye and innerduct to prevent accidental discharge of
compressed air. Severe personal injury could result.

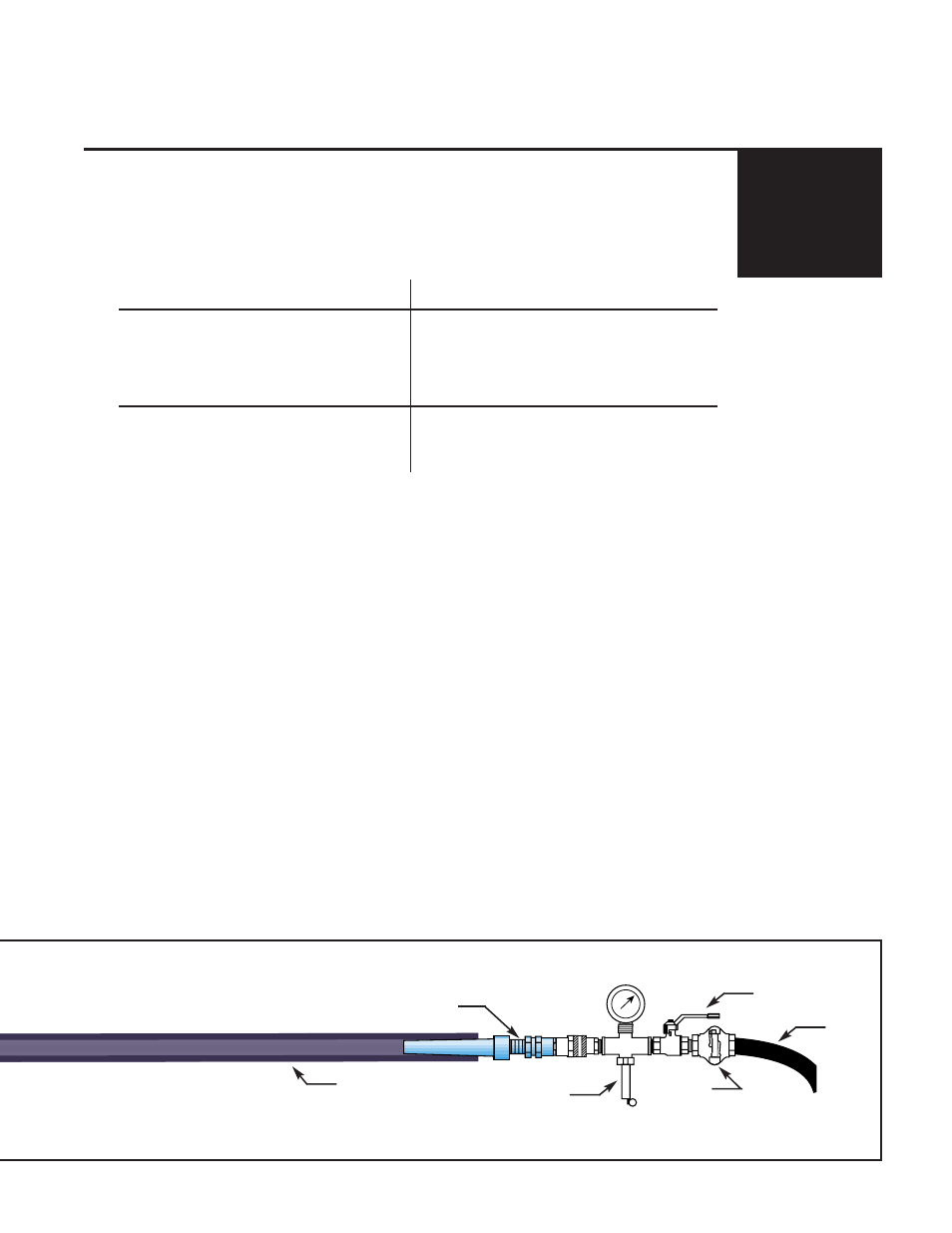

4.
Air Hose
Coupling
Control Valve
Assembly
Air Control Valve
Seal-Off Head
Innerduct
Air Hose
