4
B. AIR COMPRESSOR REQUIREMENTS
• Compressor must generate between 100 and 150 psi (6.9 and 10.3 bar).
• Required flow for pressure testing: 125 to 175 CFM (3.5 to 5.0 m 3 /min).
Note: Fiber Optic Cable Blower requires a 175 to 375 CFM (5.0 to 10.6 m 3 /min)
compressor. See cable blower manual for details.
• Air hose fittings need to be compatible with Dixon “Air King” universal couplings.
Unpacking the Innerduct Pressure
Test Kit
A. PRESSURE TEST KIT COMPONENTS
08761457 Complete Pressure Test Kit
consisting of:
08761458
Test Kit Control Valve Assembly
08034315 Seal-Off Head for 1.00" SDR 11 & 13.5 Innerduct
08034316 Seal-Off Head for 1.25" SDR 11 & 13.5 Innerduct
08034317 Seal-Off Head for 1.50" SDR 11 & 13.5 Innerduct
08913320 Pulling Eye for 1.00" SDR 11 & 13.5 Innerduct
08913323 Pulling Eye for 1.25" SDR 11 & 13.5 Innerduct
08913327 Pulling Eye for 1.50" SDR 11 & 13.5 Innerduct
08643137 Pulling Grip for 1.00" SDR 11 & 13.5 Innerduct
08643149 Pulling Grip for 1.25" & 1.50" SDR 11 & 13.5 Innerduct
02276000 Tool Box
08761459 Pressure Test Kit Manual
B. OTHER COMPONENTS AVAILABLE
08034318 Seal-Off Head for 2.00" SDR 11 & 13.5 Innerduct
08913328 Pulling Eye for 2.00" SDR 11& 13.5 Innerduct
08643155 Pulling Grip for 2.00" SDR 11 & 13.5 Innerduct
3.

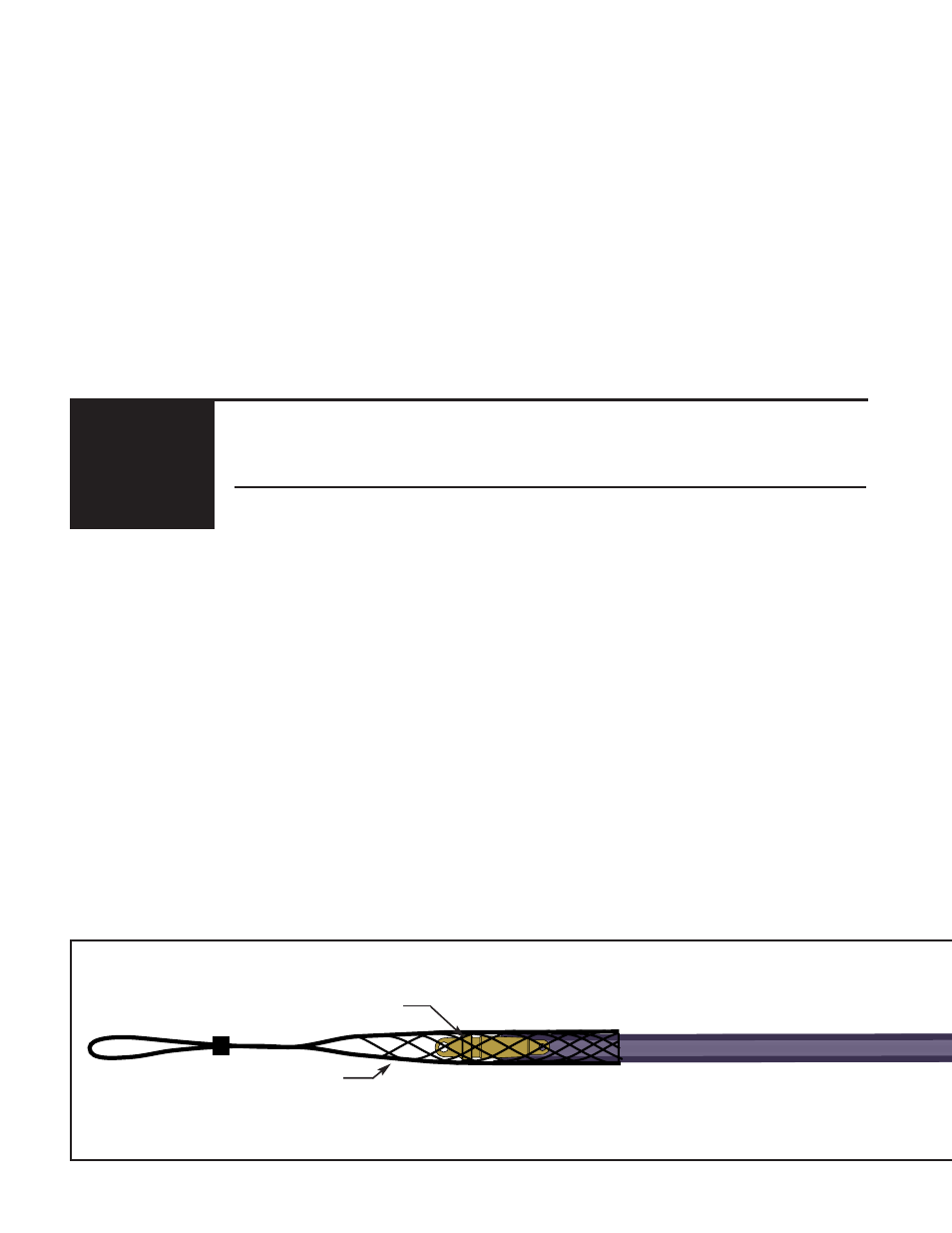

Figure 1. Typical Set up of Seal-Off Head, Innerduct Pulling Eye and Pulling Grip.
Pulling Grip
Innerduct Pulling Eye
