Condux Gulfstream 200 Micro Fiber Blower User Manual
Page 12
12

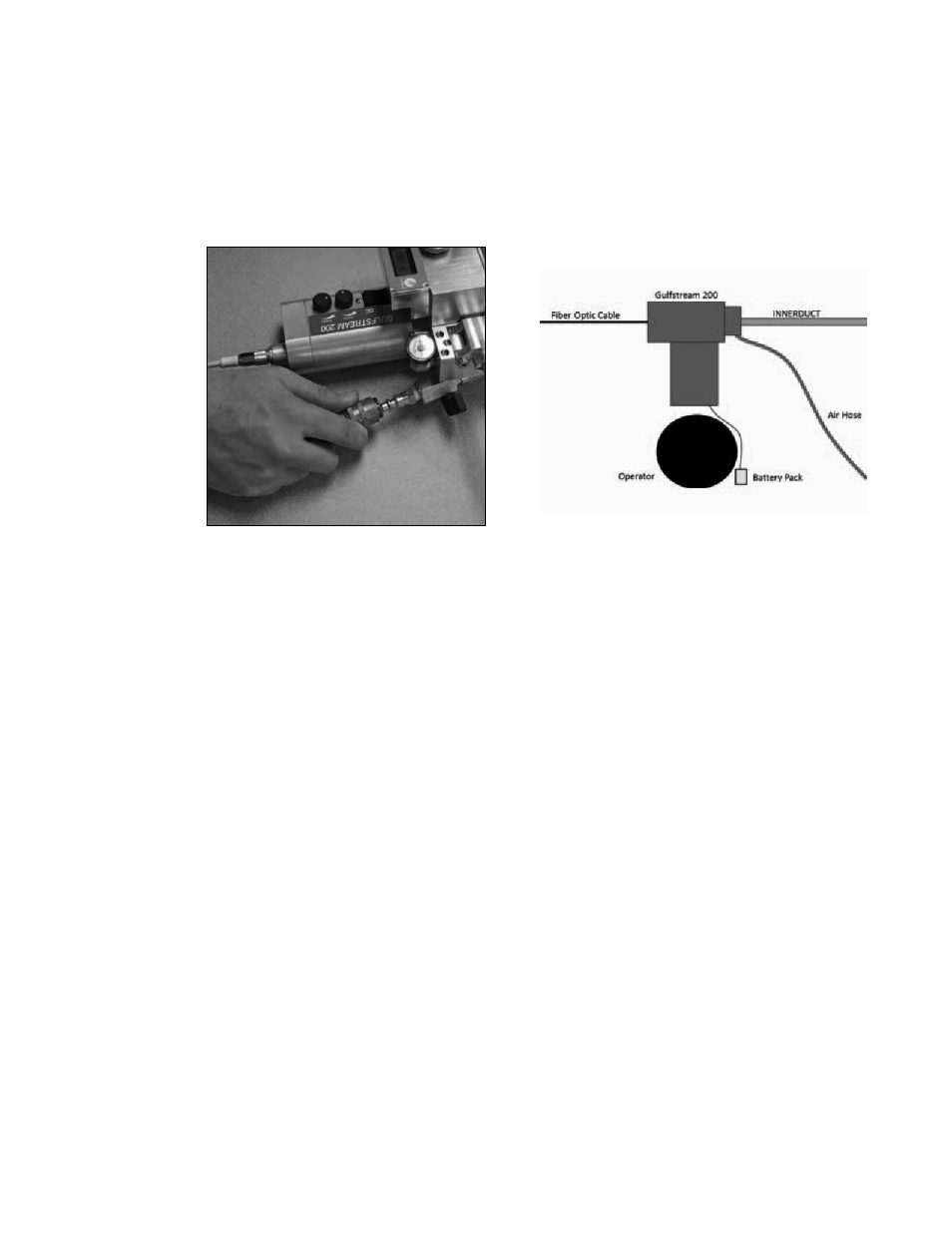

figure 12. Connect Air
Compressor hose
figure 12A. Typical Setup
I. CoNNECT AIR ComPRESSoR
NoTE: Ensure the air control valve is off before connecting the air hose.
Attach the air compressor hose to the air compressor if necessary. Then
connect the compressor hose to the blower unit. (See figure 12). The unit uses a
standard quick connect air compressor coupling.
NoTE: Route all hoses properly to prevent tripping over them. (See figure 12A).
