E. INSTALL DuCT & fIbER IN bLowER
Loosen the knob on the Air Block assembly. Open the air block cover. Insert the duct
pack assembly into the air block as shown. (See figure 5). Close air block cover and
hand tighten knob to secure. (See figure 6).
f. INSTALL fIbER IN TRACToR DRIVE AND TIghTEN
Feed the micro fiber between tractor drive and through the rear fiber guide.
(See figure 7). Tighten tractor drive using the down screw to ensure even pressure on
the micro fiber. (See figure 8). Do not over tighten.

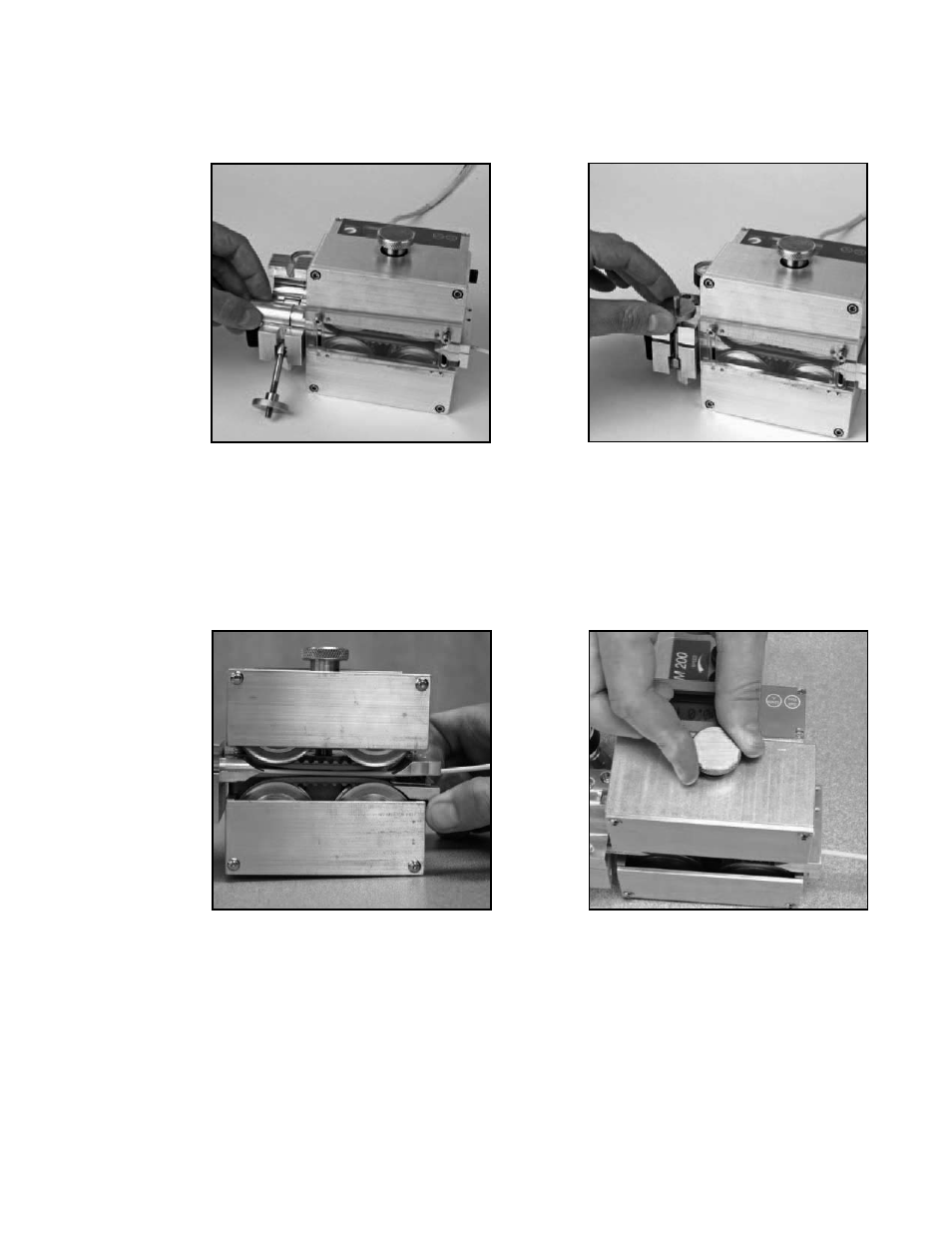

figure 5. Insert Duct Pack
Assembly into Air block
figure 6. Tighten knob
figure 7. feed micro fiber
between Tractor Drive and
Rear fiber guide
figure 8. Tighten Tractor Drive
Down Screw
