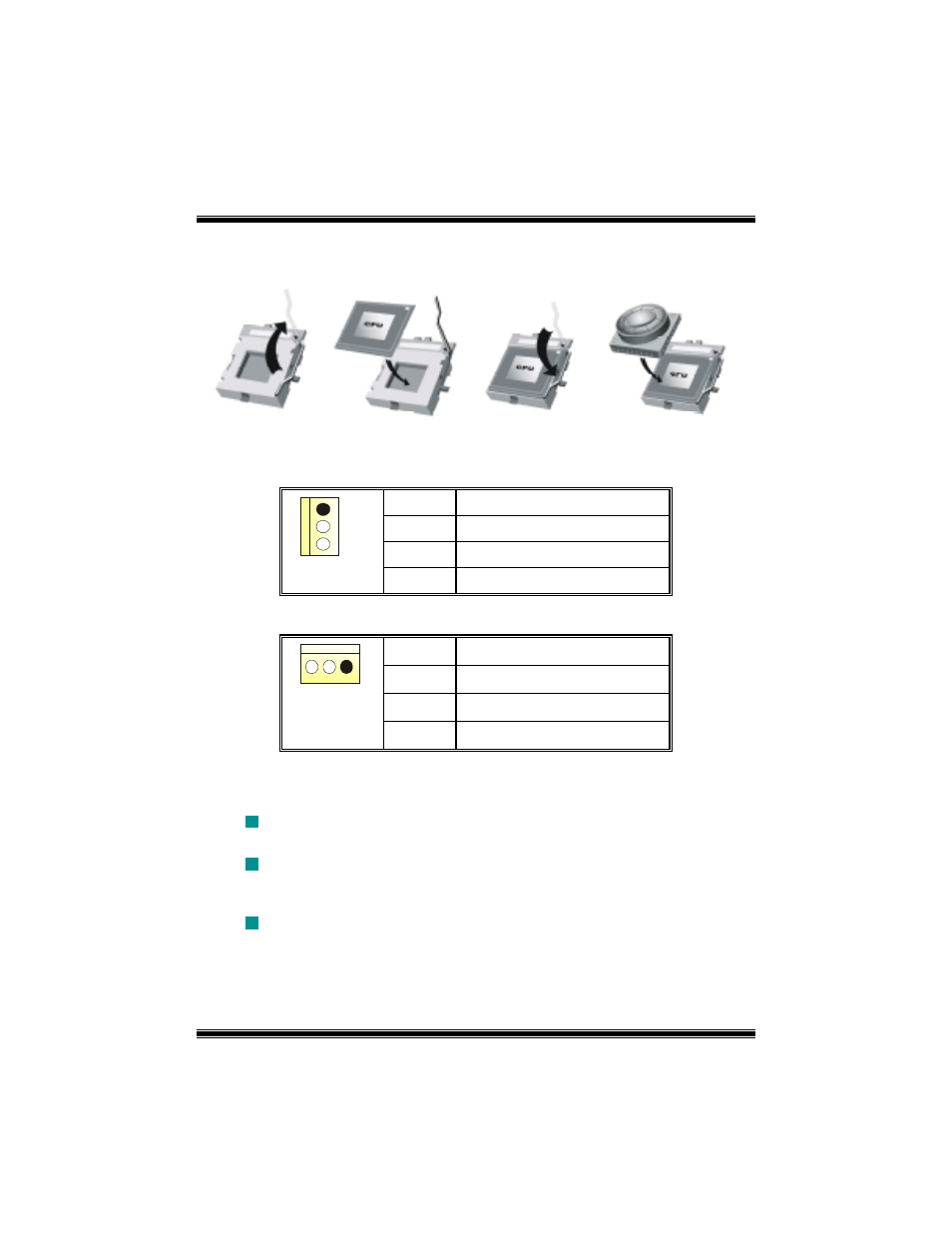

Step4: Put the CPU Fan on the CPU and buckle it. Connect the CPU fan power cable to
the JCFAN1. This completes the installation.
Step1 Step2 Step3 Step4
CPU Fan Header: JCFAN1
Pin
Assignment
1
Ground
2
+12V
1
JCFAN1
3
FAN RPM rate Sense
System Fan Header: JSFAN1
Pin
Assignment
1
Ground
2
+12V
1
JSFAN1
3
FAN RPM rate Sense
DDR DIMM Modules: DDRA1-2, DDRB1-2
Supports up to four DDR DIMMs(two DIMMs per channel), single-sided and/ or
double-sided.
For Dual Channel Operation, DIMMs must be populated in identical pairs. It
has to be the combination of DDRA1+DDRB1 (Blue DIMMs) or DDRA2+DDRB2
(white DIMMs).
Dual Channel Guidelines
Matched DIMM configuration in each channel
!"
Same Density (128MB, 256MB, 512MB, 1GB, etc.)
!"
Same DRAM technology (128M-bit, 256M-bit, or 512M-bit)
