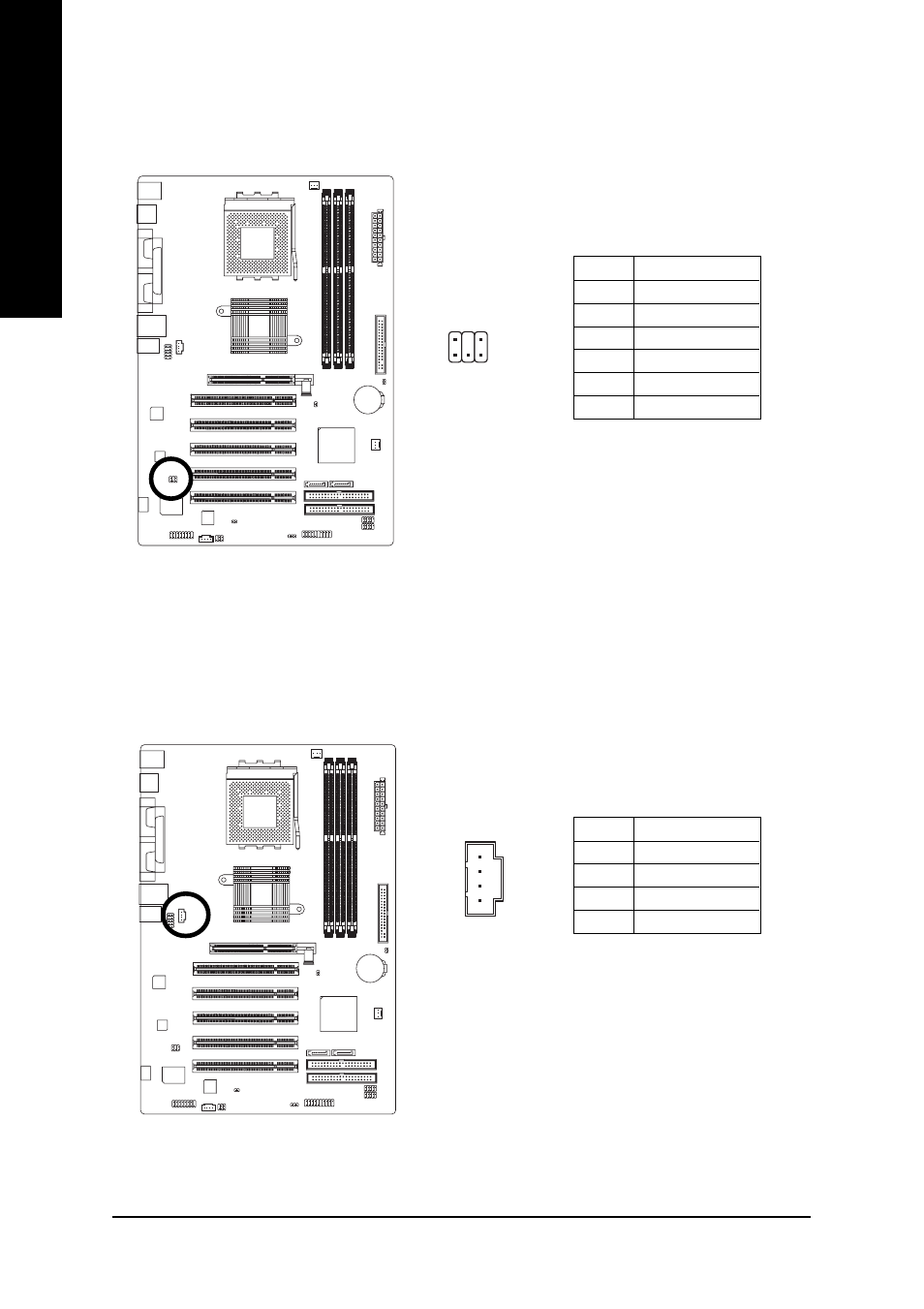

- 26 -

GA-7VT600-P(-L) Motherboard

English

11) CD_IN (CD In Connector)

Connect CD-ROM or DVD-ROM audio out to the connector.

1

10) SUR_CEN (Surround Center Connector)

Please contact your nearest dealer for optional SUR_CEN cable.

1

6

2

5

Pin No.

Definition

1

SUR OUTL

2

SUR OUTR

3

GND

4

No Pin

5

CENTER_OUT

6

BASS_OUT

Pin No.

Definition

1

CD-L

2

GND

3

GND

4

CD-R
