Intel Desktop Board D915PGN/D915PSY Technical Product Specification
2.8.1 Back Panel Connectors

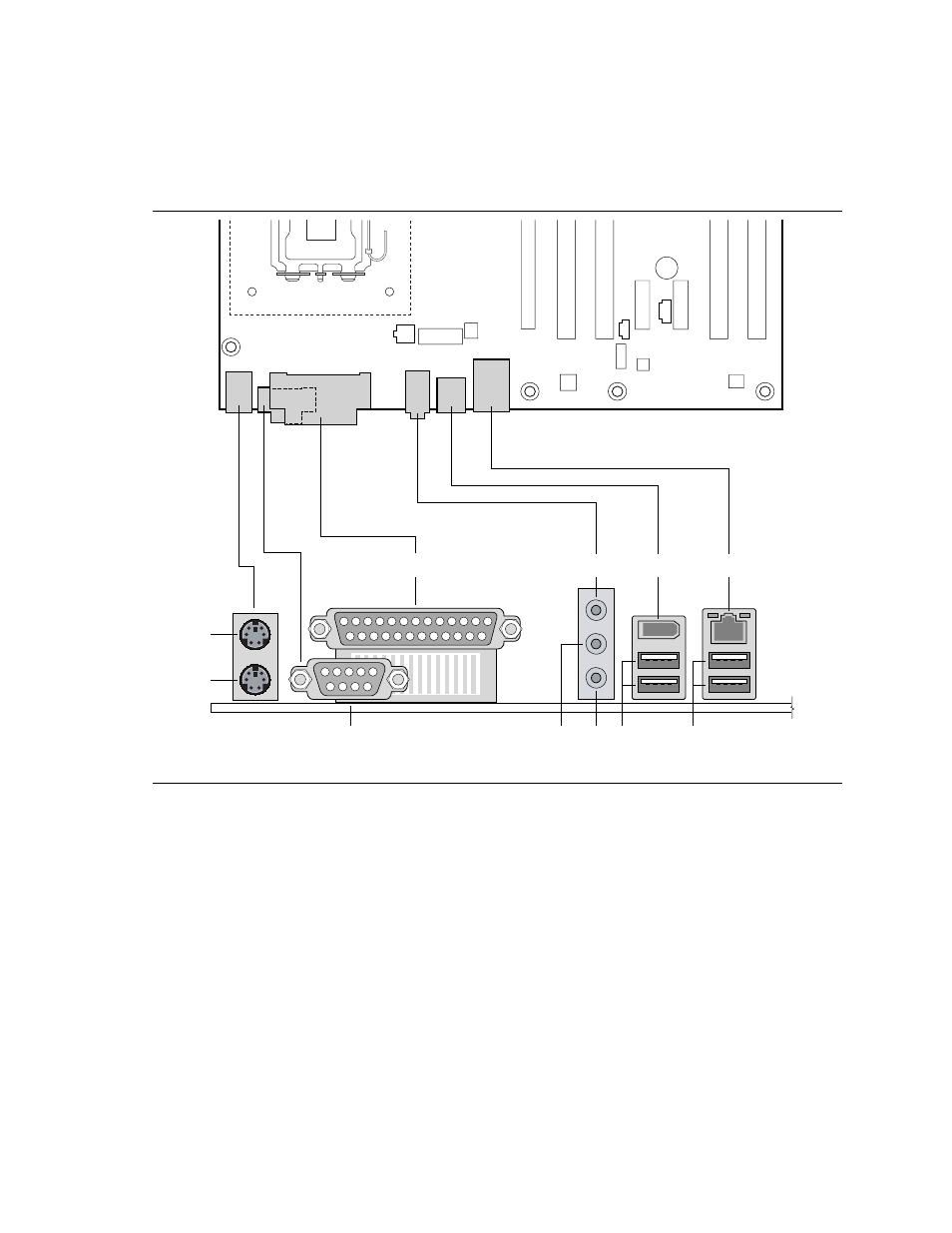

Figure 17 shows the location of the back panel connectors. The back panel connectors are
color-coded. The figure legend (Table 18) lists the colors used (when applicable).
OM17058
A
B
J E C
K
H
I F D G
Figure 17. Back Panel Connectors
Table 18 lists the back panel connectors identified in Figure 17.
✏
NOTE
The back panel audio line out connector is designed to power headphones or amplified speakers
only. Poor audio quality occurs if passive (non-amplified) speakers are connected to this output.
