Maintenance
Instructions
Replacement Parts

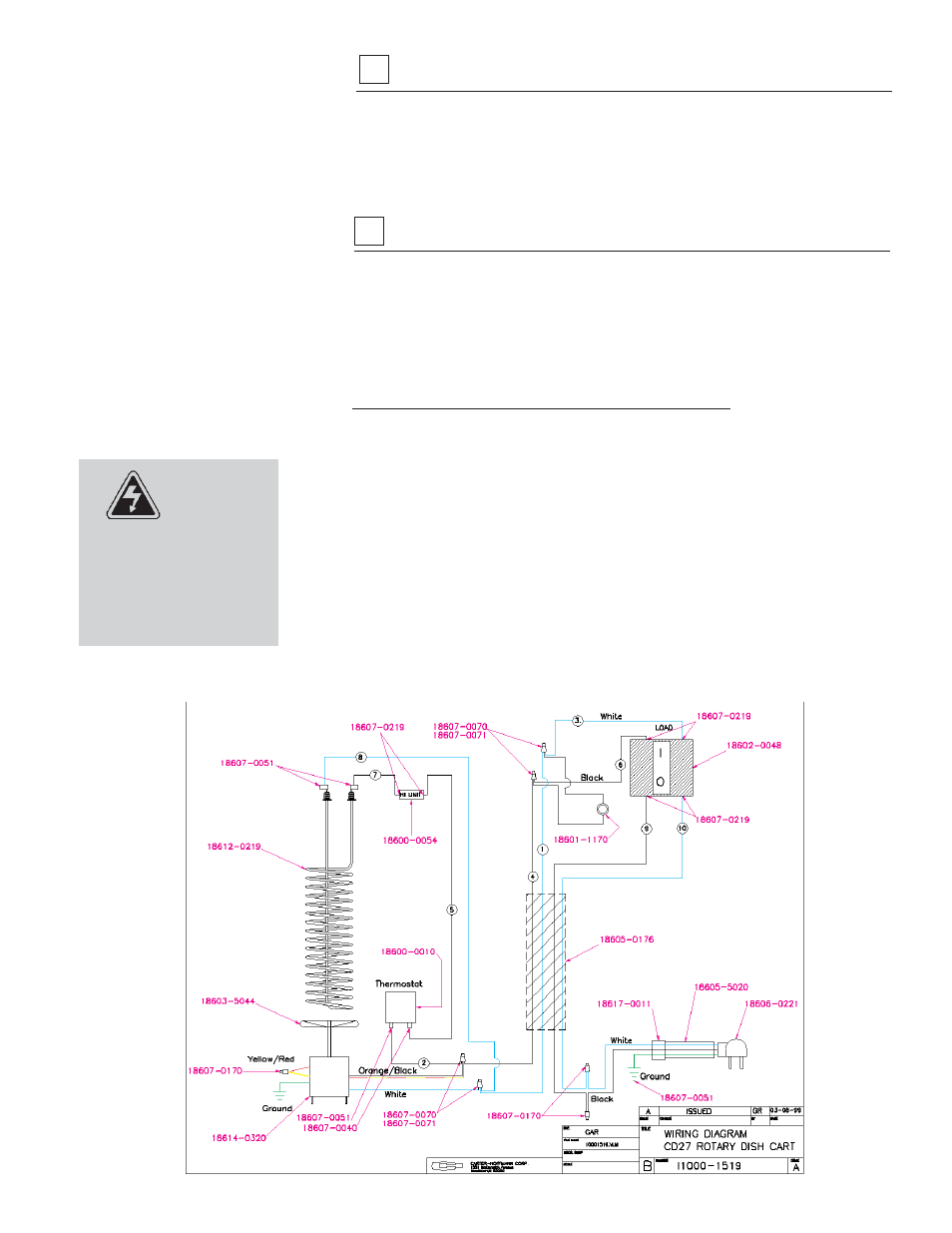

Wiring Diagram
Casters are equipped with Zerk grease fittings so that they may be easily
lubricated with a grease gun. Recommended lubrication is at least once
every six months. Lubrication will be required more often if cart is cleaned
with a hot water or steam cleaning system. Casters with special bearings
are recommended for frequent cart wash or steam cleaning situations.
Check frequently to insure that the door latch is secure. Latch may become
“sticky” due to to residue buildup from daily use and cleaning. Lubricate
latch regularly with WD-40, silicone spray, graphite or other commercial
lubricants for stainless steel products. Do not use oil.
120V, 2100 watts, 18 amps, 60HZ, 1PH
Part Number
Description
18600-0010
Thermostat
18600-0054
Hi-Limit
18601-1170
Power Light
18602-0048
On/Off Switch with Circuit Breaker
18603-5044
Fan Blade
18605-5020
Power Cord
18606-0221
NEMA Plug 5-20P
18612-0219
Heat Element 2100 Watt
18614-0320
Fan Motor
18617-0011
Cord Grip
18302-0332
Door Latch (not shown)
18304-0226
Hinge (not shown)
16090-1988
Turntable Assembly (not shown)
Contact factory with your model
and serial number for replace-
ment cart components.
A
B
CASTERS
LATCH
Use only
(OEM) origi-
nal equipment
manufacturer
replacement
parts. Using unauthorized
parts may cause serious injury.
Replacement parts should be
installed by a qualified service
technician.
WARNING
